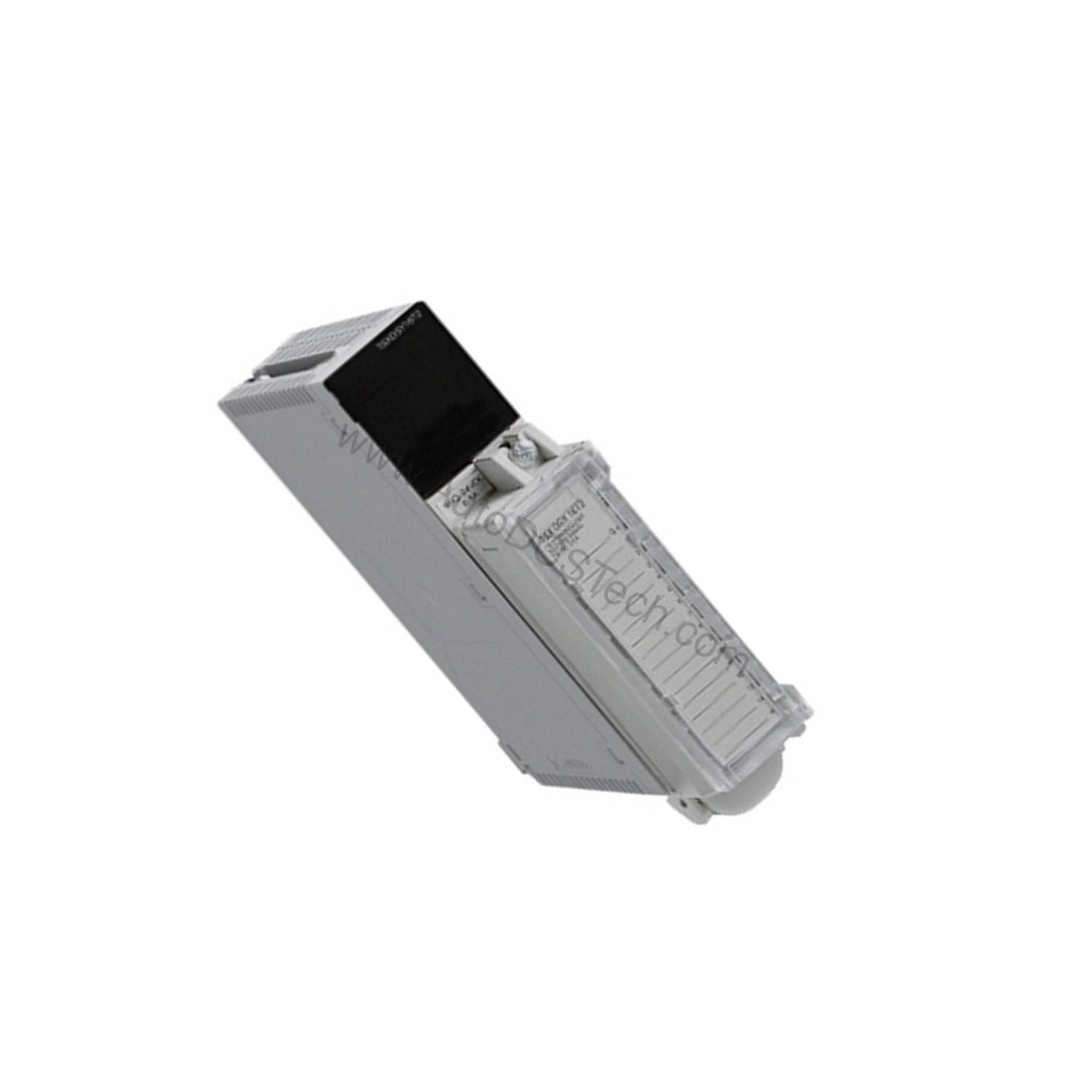

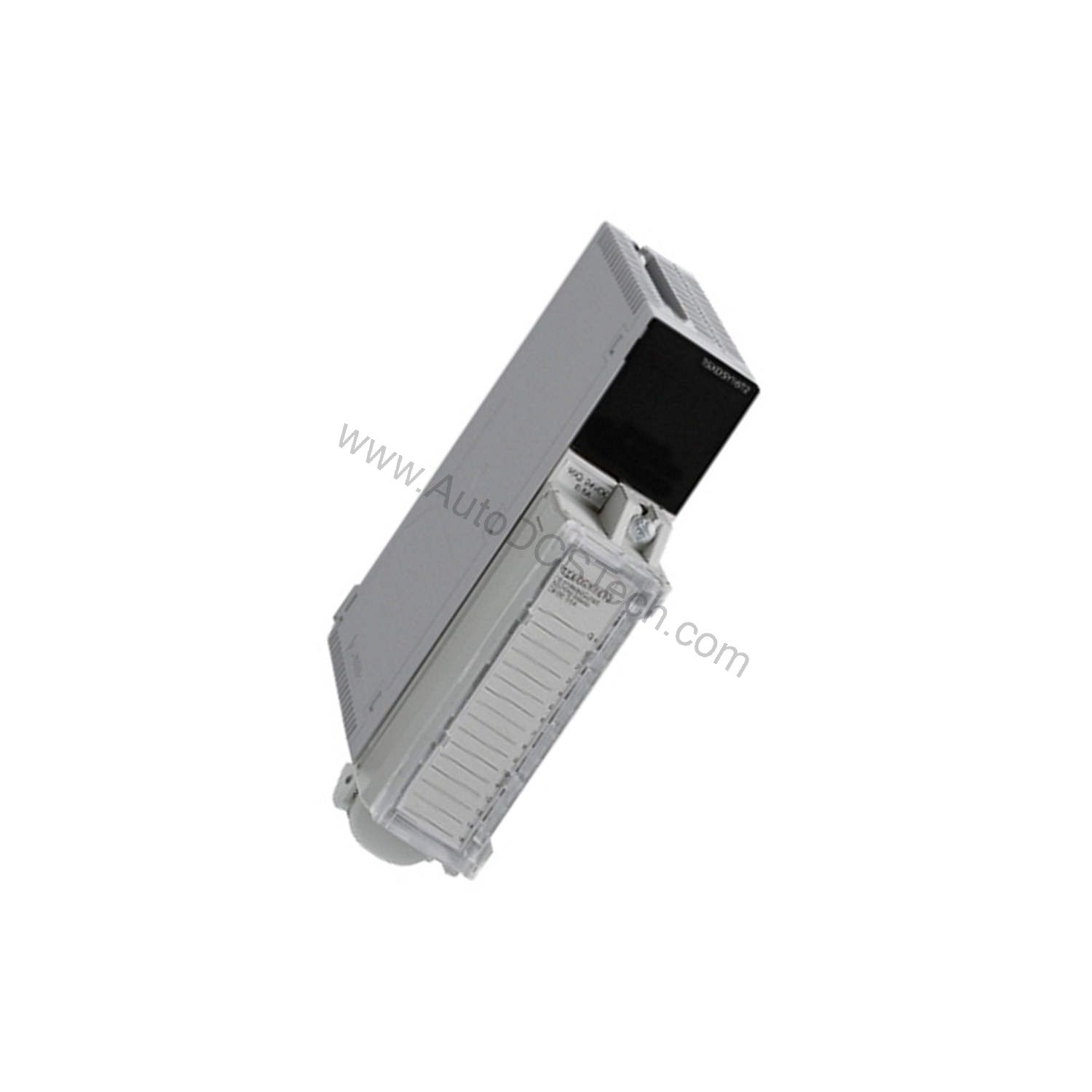

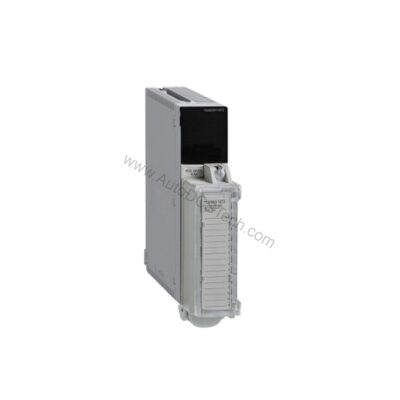

Product Overview of the TSXDEY16D2 Input Module
The Schneider Electric TSXDEY16D2 is a discrete input module engineered for the Modicon Premium automation platform. It provides 16 input points arranged in two groups of eight. Consequently, this module suits control systems requiring dense field input acquisition. The unit operates with a 24 V DC field supply and draws 80 mA at 5 V DC from the backplane. Furthermore, it consumes 0.97 W. Because the module is discontinued, please verify current lifecycle status and availability with AutoDCSTech before ordering.
TSXDEY16D2 Technical Specifications and I/O Architecture
Each of the 16 channels accepts a 24 V DC signal and draws 7 mA in state 1. The module uses sink (negative logic) input configuration. In addition, channel-to-bus isolation is rated at 1500 V AC dielectric, with isolation resistance exceeding 10 MΩ at 500 V. The typical response time is 4 ms. The table below summarizes the verified parameters.
| Parameter | Value |
|---|---|
| Channels | 16 points (2 groups × 8) |
| Signal type | DC input, sink (negative logic) |
| Voltage range | 24 V DC |
| Input current | 7 mA (state 1 per channel) |
| Isolation | 1500 V AC dielectric; >10 MΩ @ 500 V |
| Response time | 4 ms (typical) |
| Supply voltage | 24 V DC (field) + 5 V DC (backplane) |
| Bus current | 80 mA @ 5 V DC |
| Power consumption | 0.97 W |
| Protection rating | IP20 |
| Dimensions (H×W×D) | 140 × 35 × 80 mm |
| Weight | 0.15 kg |
Installation and Integration in Modicon Premium Systems
The TSXDEY16D2 occupies one slot in a Modicon Premium rack. Because it uses the backplane for 5 V DC supply, no external logic supply is required. However, field wiring must provide a 24 V DC source for the input channels. The module's IP20 rating means it must be installed inside a suitable enclosure. When integrating with fieldbus networks, note that wiring into such networks may require an external gateway or connection module. Therefore, confirm cables and gateways with AutoDCSTech to ensure precise matching. For environmental limits such as operating temperature and humidity, refer to the official datasheet.
Reliability and Maintenance of the TSXDEY16D2
With 1500 V AC channel-to-bus isolation, the module resists electrical noise and ground loops in industrial environments. Consequently, it supports stable signal acquisition. Periodic inspection of terminal connections and enclosure integrity is recommended. Because the module is discontinued, system integrators should plan for spare-part availability. Contact AutoDCSTech for engineering-grade support and precise matching of replacement components.
Availability & Condition at AutoDCSTech
| Part Number | TSXDEY16D2 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | France |
