330171-00-40-10-02-00 Bently Nevada 3300 5mm Probe 1/4-28

Product Overview: Bently Nevada 330171-00-40-10-02-00

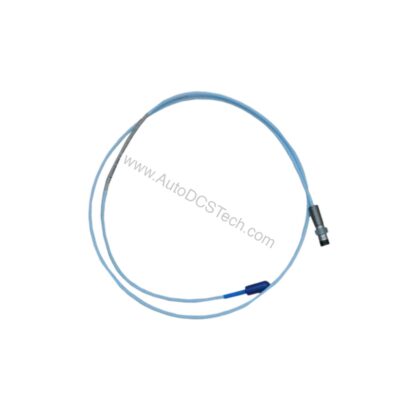

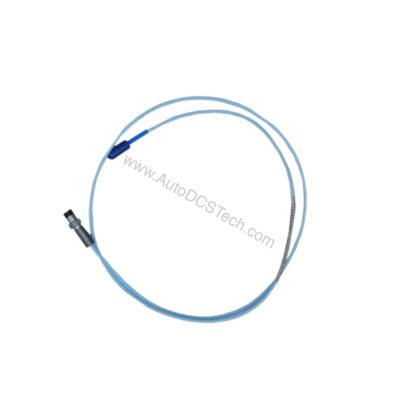

The Bently Nevada 330171-00-40-10-02-00 is a 5mm eddy current proximity probe from the 3300 series. It features a 1/4-28 UNF thread, a 1.0 metre cable, and a miniature coaxial ClickLoc connector. This probe is designed for precise displacement and vibration measurement in industrial machinery protection systems.

Key Specifications of the 330171-00-40-10-02-00

• Probe Tip Material: Polyphenylene sulfide (PPS)
• Probe Case Material: AISI 304 stainless steel
• Thread: 1/4-28 UNF, maximum engagement 0.375 in
• Total Length: 1.0 metre (3.3 feet)
• Connector: Miniature coaxial ClickLoc, standard cable
• Weight: 0.323 kg
• Power Requirement: -17.5 Vdc to -26 Vdc at 12 mA max
• Output Resistance: 50 Ω
• Probe DC Resistance: 7.59 ± 0.50 Ω
• Temperature Range: -35°C to +177°C

Each specification is verified from the manufacturer's data, ensuring engineering-grade precision for your system integration.

Installation and Setup

When mounting the 330171-00-40-10-02-00, drill and tap a 1/4-28 UNF hole. A #3 or larger tap drill is recommended. Apply a recommended torque of 5.1 N·m (45 in·lb) to the probe case, with a maximum of 7.3 N·m (65 in·lb). The minimum cable bend radius is 25.4 mm (1.0 in). Ensure the probe is gapped at 1.27 mm (50 mils) for optimal linear range. The probe operates with a -24 Vdc power supply and a 10 kΩ load.

Applications and Use Cases

The 330171-00-40-10-02-00 is ideal for continuous monitoring of rotating machinery, such as turbines, compressors, and pumps. Its 5mm tip and 1/4-28 thread make it suitable for tight installation spaces. The probe's PPS tip and stainless steel case provide durability in harsh industrial environments. With a temperature range up to +177°C, it can be used in high-temperature applications. The ClickLoc connector ensures secure and reliable signal transmission.
