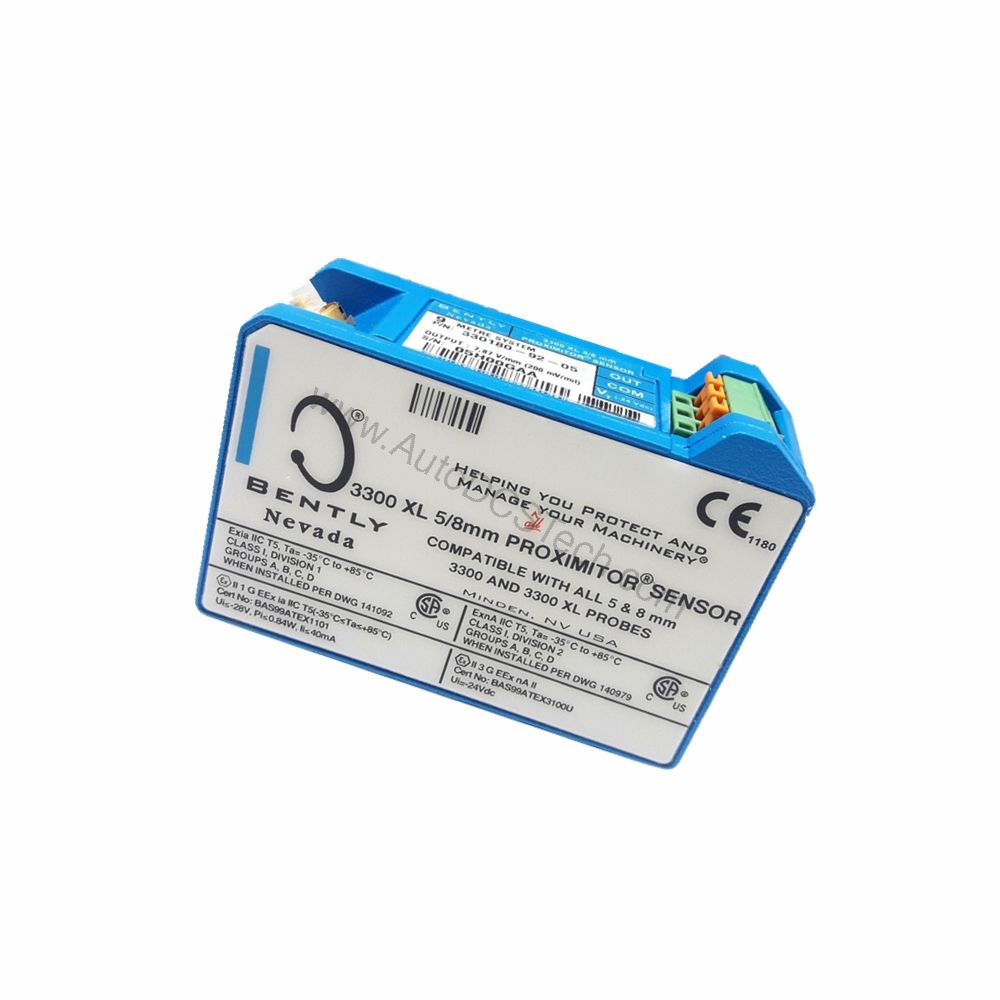

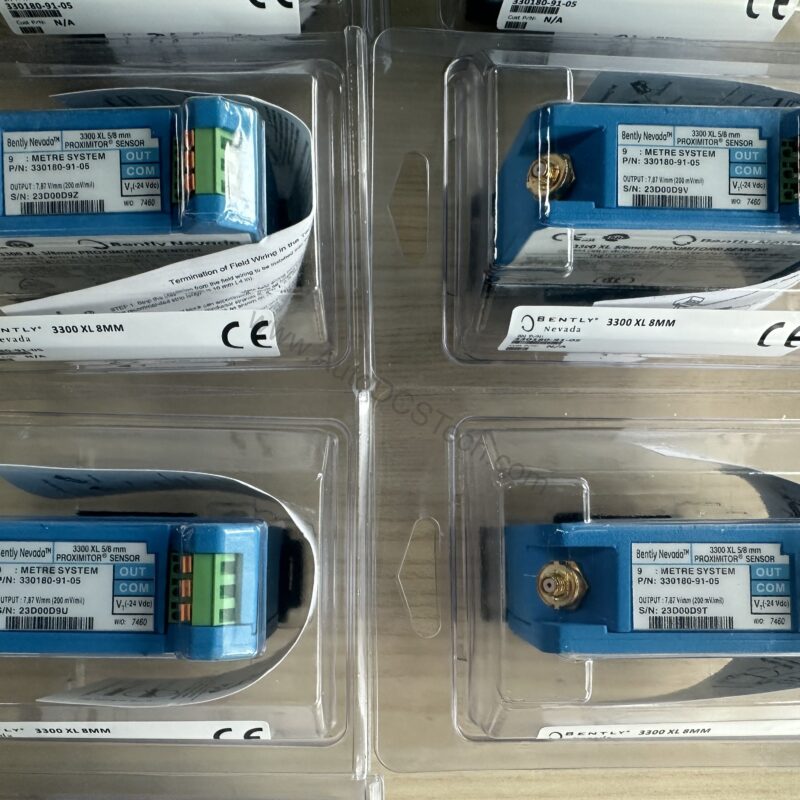

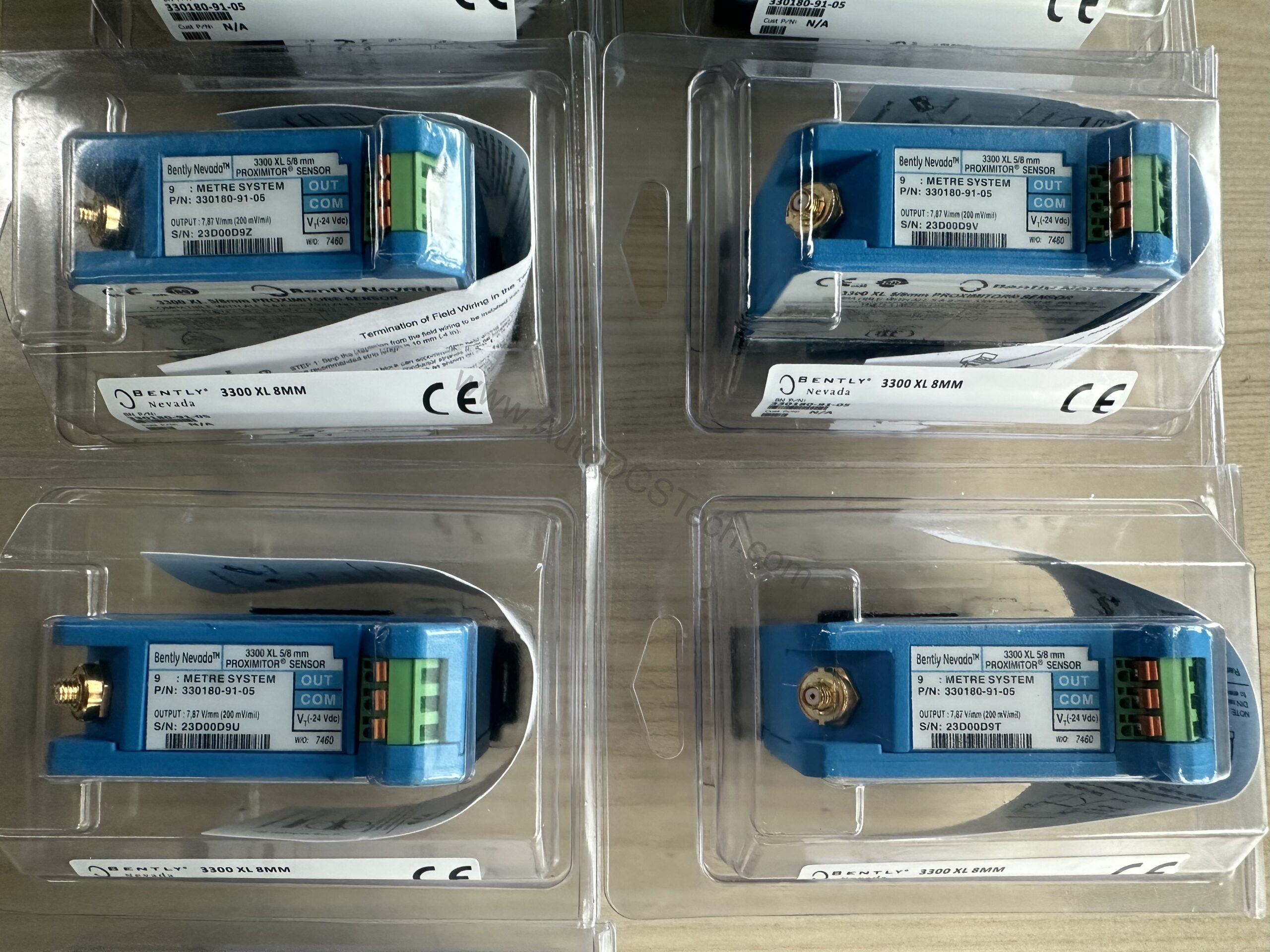

330180-51-05 Bently Nevada 3300 XL Proximitor Sensor 5.0m

Introduction: The Evolution of Industrial Sensing

In the early days of industrial automation, engineers relied on contact-based sensors that wore out quickly and required frequent maintenance. As machinery became faster and more complex, the need for non-contact, highly reliable measurement grew. The Bently Nevada 3300 XL Proximitor Sensor emerged from this evolution, setting a new standard for precision and durability. The 330180-51-05 model continues this legacy, offering a 5.0-meter system length and DIN mount option. With CSA, ATEX, and IECEx approvals, it meets the rigorous demands of modern hazardous environments. This sensor represents a leap forward, combining advanced RFI/EMI immunity with a robust design that simplifies installation and reduces long-term costs.

330180-51-05 Technical Specifications

The 330180-51-05 operates with a -17.5 Vdc to -26 Vdc power supply, consuming a maximum of 12 mA. Its output resistance is 50 Ω, ensuring stable signal transmission. The sensor accepts one non-contacting 3300-series 5 mm or 3300 XL 8 mm proximity probe and extension cable. Housed in A308 aluminum, it weighs 246 g and operates from -52°C to +100°C. The SpringLoc terminal strips eliminate screw-type clamping, providing faster and more robust field wiring. For detailed specifications, refer to the official datasheet.

Key Features and Engineering Advantages

• High-Density Mounting: DIN-rail compatible design saves panel space.
• Electrical Isolation: Mounting base eliminates separate isolator plates.
• RFI/EMI Immunity: Satisfies CE mark approvals without special shielding.
• SpringLoc Terminals: No special tools required for secure connections.
• Wide Temperature Range: Operates reliably from -52°C to +100°C.

Applications and Use Cases

The 330180-51-05 excels in critical machinery monitoring. For instance, in a petrochemical plant, it measures radial vibration on compressors, providing early fault detection. In power generation, it monitors shaft displacement on steam turbines, ensuring safe operation. The sensor's ATEX and IECEx approvals make it suitable for explosive atmospheres. Additionally, its high RFI immunity allows installation in fiberglass housings near radio transmitters. These applications benefit from the sensor's precise output and robust construction.

Installation and Maintenance

Install the 330180-51-05 using either DIN-rail or traditional panel mount. The 4-hole footprint matches older Proximitor designs for easy upgrades. Connect the probe and extension cable, then wire the power supply observing polarity. The SpringLoc terminals accept standard tools. Periodically inspect for loose connections and environmental damage. The sensor requires no calibration after installation. For maintenance, follow the manufacturer's safety manual.
