TM5SAO4L Schneider Electric 4-Ch Analog Output Module

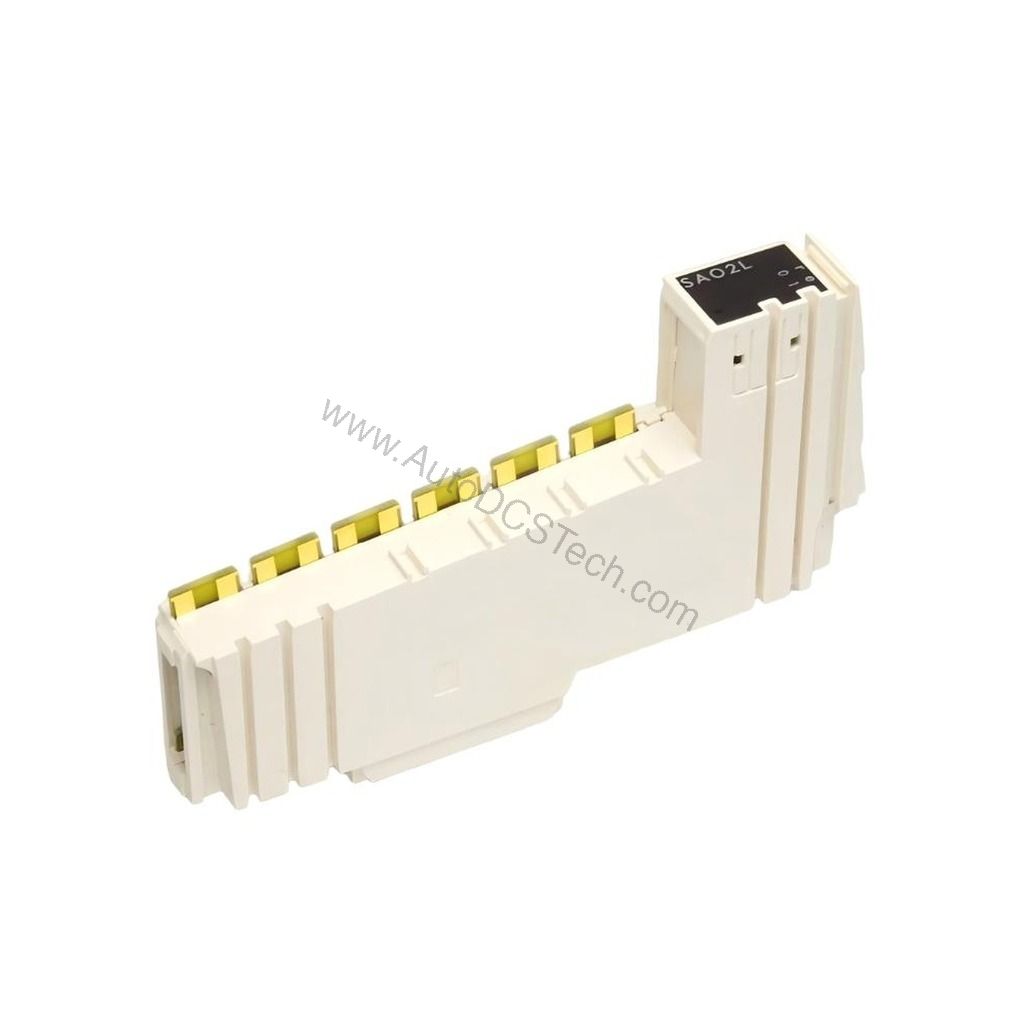

TM5SAO4L: Precision Analog Output for Modicon TM5 Platforms

Precise process control demands exact signal fidelity. The Schneider Electric TM5SAO4L analog output module addresses this need directly. As part of the Modicon TM5 distributed I/O series, it provides four software-configurable channels for voltage or current loops. Consequently, engineers achieve engineering-grade accuracy in every output.

Each channel supports ±10 Vdc or 0-20 mA signals. The 12-bit resolution translates to fine control steps. Meanwhile, accuracy stays within ±0.3% of full scale at 25 °C. Over the full temperature range, it remains within ±0.5% FS. Such precision reduces waste in dosing and positioning tasks. Therefore, material costs drop while product quality rises.

Key Specifications and Cost Implications

• Channels: 4 analog outputs, each configurable for voltage or current mode.
• Signal range: ±10 Vdc or 0-20 mA, set per channel via software.
• Resolution: 12 bits, enabling fine adjustment for precise actuator control.
• Accuracy: ±0.3% of full scale at 25 °C; ±0.5% FS over temperature.
• Isolation: 500 Vrms AC between channels and bus; no isolation between channels.
• Response time: 1 ms max for output change; 200 µs sampling.
• Supply voltage: 24 Vdc via TM5 bus; power consumption 1.8 W.
• Bus current: 3 mA at 5 V DC; 90 mA at 24 V DC.
• Operating temperature: 0 to +55 °C; protection rating IP20.

The 500 Vrms isolation barrier protects the bus from field transients. This protection prevents costly downtime from electrical noise. Additionally, the 1 ms response time supports fast control loops. As a result, production throughput increases without sacrificing accuracy.

Installation and Integration in Modicon Systems

The TM5SAO4L mounts directly on the TM5 bus. It is compatible with Modicon M241, M251, M258, and LMC058 platforms. During installation, verify the 24 Vdc supply and proper bus seating. Because the module consumes only 1.8 W, it adds minimal heat to the enclosure. This low thermal load extends the life of adjacent components.

For wiring, use shielded twisted-pair cables for analog signals. Keep output wiring away from high-voltage power lines. This practice minimizes induced noise and preserves the 12-bit resolution. Furthermore, the IP20 rating requires installation inside a clean control cabinet. Therefore, follow the enclosure guidelines for pollution degree and clearance.

Diagnostics and Operational Reliability

Three LEDs provide immediate status: ModuleOK, DcOk, and NetworkOk. These indicators simplify troubleshooting and reduce mean time to repair. Consequently, maintenance teams identify faults without specialized tools. The module also supports per-channel diagnostics through the software configuration.

In terms of cost, the TM5SAO4L reduces total cost of ownership. Its engineering-grade precision eliminates rework from inaccurate outputs. The low power draw cuts energy expenses over the system lifecycle. Meanwhile, the robust isolation extends module lifespan in electrically noisy plants. Therefore, the initial investment pays back through reduced scrap and fewer replacements.

Ordering and Support

The TM5SAO4L is active and in stock. For precise matching to your application, contact AutoDCSTech with your exact requirements. Our specialists provide engineering-grade support to ensure correct configuration.
