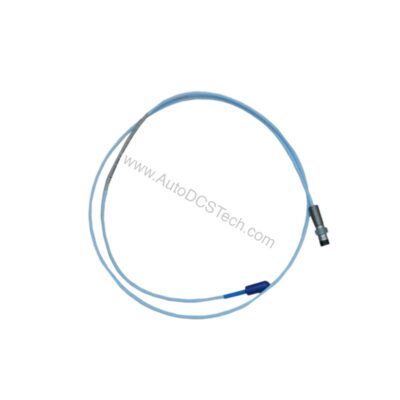

330101-00-08-05-02-00: 3300 XL 8 mm Probe, without armor
The 330101-00-08-05-02-00 is the 3300 XL 8 mm Probe, without armor covered on this page. The attribute that decides whether it fits the existing installation without modification is 3/8-24 UNF.
What separates this variant from its siblings is 3300 xl 8 mm probe, without armor. In a machine protection or condition-monitoring installation 3300 xl 8 mm probe, without armor is the attribute that decides whether the sensor reaches the target and reads it on the correct gap. A probe or transducer specified to the wrong case length, thread or sensitivity either cannot reach the measured surface or returns vibration values that do not line up with the rest of the train. Confirming 3/8-24 UNF against the existing mount is therefore the first check before a replacement, not an afterthought.
Configuration From the Published Data
This unit is documented as a 3300 XL 8 mm Probe, without armor. The configuration carried in the order code is: Probe Type: 3300 XL 8 mm Probe, without armor; Thread: 3/8-24 UNF; Connector: Miniature coaxial ClickLoc, standard cable; Linear Range: 2 mm (80 mils). These are the figures to confirm against the existing mount and monitor before ordering a replacement.
| Feature | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Brand | Bently Nevada |
| Part Number | 330101-00-08-05-02-00 |
| Probe Type | 3300 XL 8 mm Probe, without armor |
| Thread | 3/8-24 UNF |
| Unthreaded Length Option | 00 - 0.0 in |
| Overall Case Length Option | 08 - 0.8 in |
| Total Length Option | 05 - 0.5 meter (1.6 feet) |
| Connector | Miniature coaxial ClickLoc, standard cable |
| Nominal Probe DC Resistance | 7.45 ± 0.50 Ω |
| Extension Cable Capacitance | 69.9 pF/m typical |
| Linear Range | 2 mm (80 mils) |
| Incremental Scale Factor | 7.87 V/mm (200 mV/mil) ± 5% |
| Probe Tip Material | PPS |
| Probe Case Material | AISI 303/304 SST |
| Temperature Range | -52°C to +177°C |
Related Configurations
Other published configurations in the same family — confirm the distinguishing specification against your installation:
| Related Part Number | Configuration Difference |
|---|---|
| bently-nevada-330101-00-08-05-02-05-3300-xl-8mm-probe-3-8-24-unf-thread | confirm the configuration against your installation |
Availability & Condition at AutoDCSTech
| Part Number | 330101-00-08-05-02-00 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | US |
