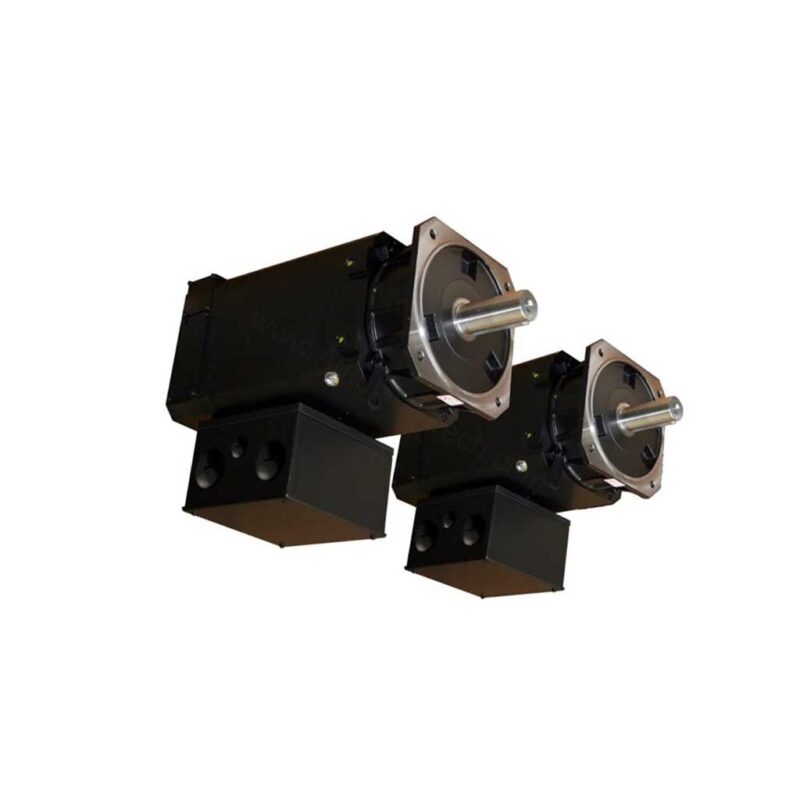

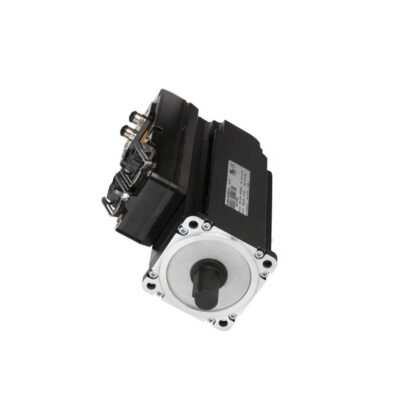

8LSC45.ee060ff00-4: 6000 rpm B&R Servo Motor
The 8LSC45.ee060ff00-4 is the 6000 rpm B&R Servo Motor covered on this page. The attribute that decides whether it fits the existing installation without modification is 4096 W.
What separates this variant from its siblings is 6000 rpm b&r servo motor. Selecting this unit comes down to confirming the configuration against the installation it is being fitted to. 6000 rpm b&r servo motor is the attribute that decides fit and function, and verifying 4096 W against the existing equipment is the check that prevents a part that installs but does not perform.
| Feature | Specification |
|---|---|
| Manufacturer | B&R |
| Brand | B&R |
| Part Number | 8LSC45.ee060ff00-4 |
| Nominal speed | 6000 rpm |
| Nominal torque | 6.5 Nm |
| Nominal power | 4096 W |
| Nominal current | 8.0 A |
| Stall torque | 10.4 Nm |
| Maximum torque | 30.4 Nm |
| Maximum speed | 6600 rpm |
| Torque constant | 0.81 Nm/A |
| Voltage constant | 49.22 V/1000 rpm |
| Stator resistance | 0.69 Ohm |
· Last updated:
Availability & Condition at AutoDCSTech
| Part Number | 8LSC45.ee060ff00-4 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | US |
