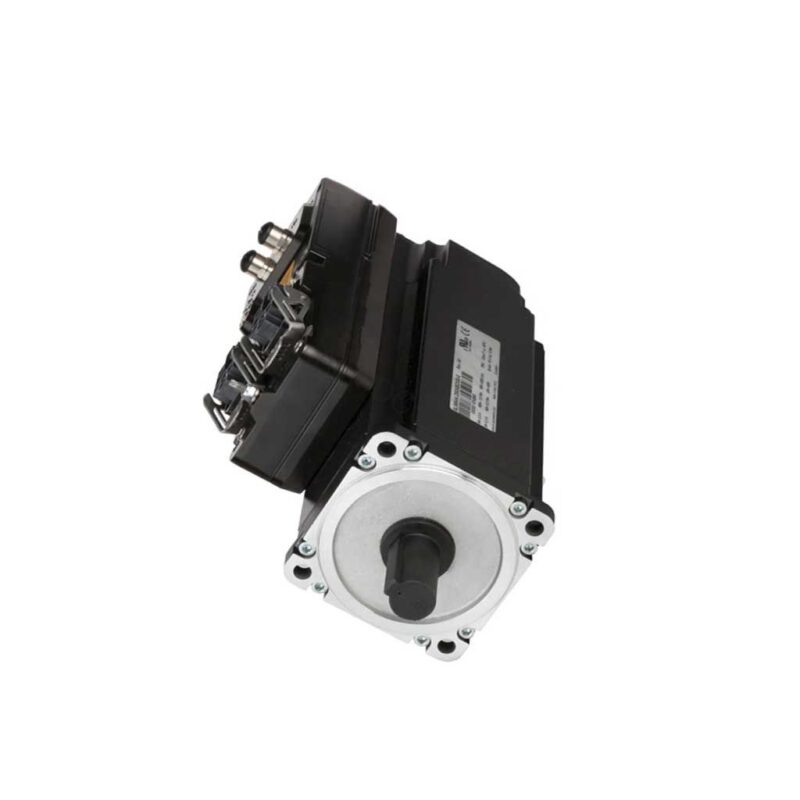

8LSC47.ee030ff00-4: B&R 13.3Nm Servo Motor
The 8LSC47.ee030ff00-4 is the B&R 13.3Nm Servo Motor covered on this page. The attribute that decides whether it fits the existing installation without modification is 4170 W.
On this unit b&r 13.3nm servo motor is the figure that decides fit and function. Selecting this unit comes down to confirming the configuration against the installation it is being fitted to. b&r 13.3nm servo motor is the attribute that decides fit and function, and verifying 4170 W against the existing equipment is the check that prevents a part that installs but does not perform.
| Feature | Specification |
|---|---|
| Manufacturer | B&R |
| Brand | B&R |
| Part Number | 8LSC47.ee030ff00-4 |
| Nominal speed | 3000 rpm |
| Nominal torque | 13.3 Nm |
| Nominal power | 4170 W |
| Nominal current | 8.1 A |
| Stall torque | 15.6 Nm |
| Maximum torque | 45.6 Nm |
| Maximum current | 44.0 A |
| Torque constant | 1.63 Nm/A |
| Stator resistance | 1.66 Ω |
| Mass (without brake) | 9.55 kg |
· Last updated:
Availability & Condition at AutoDCSTech
| Part Number | 8LSC47.ee030ff00-4 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | US |
