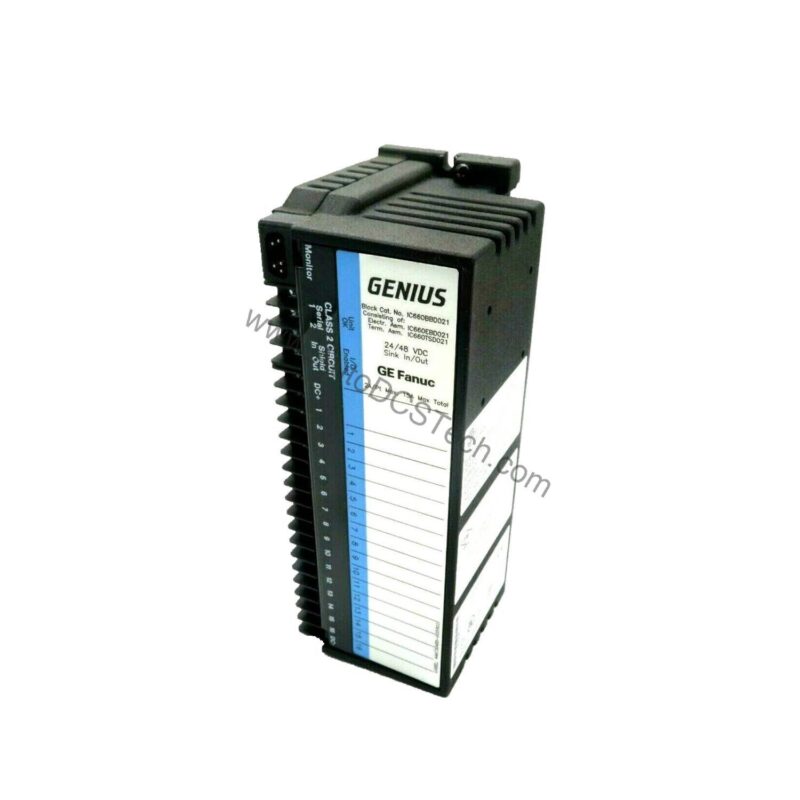

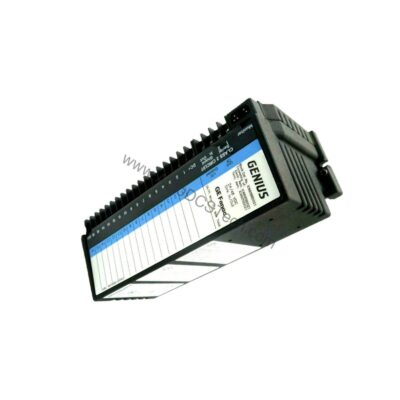

IC660BBD021: Genius I/O 16 Circuit Sink I/O Block Module
The IC660BBD021 is the Genius I/O 16 Circuit Sink I/O Block Module covered on this page. The attribute that decides whether it fits the existing installation without modification is 24/48 Volts DC.
The reason to specify this exact variant is genius i/o 16 circuit sink i/o block module. On a rack I/O module the configuration that matters is the one that decides whether the unit drops into the existing slot and speaks the existing signal. genius i/o 16 circuit sink i/o block module sets channel count, voltage or current class and isolation behaviour — the three things that decide compatibility with the backplane, the field wiring and the rest of the I/O. Matching 24/48 Volts DC against the rack rather than a generic datasheet avoids a module that installs but does not interface.
| Feature | Specification |
|---|---|
| Manufacturer | GE Fanuc / GE Intelligent Platforms |
| Brand | GE |
| Part Number | IC660BBD021 |
| Series | Genius I/O |
| Part Number | IC660BBD021 |
| Number of Circuits | 16 I/O circuits |
| Voltage | 24/48 Volts DC |
| Input Signal Voltage | 24 / 48 VDC |
| Input Processing Time | 1.7 ms |
| Output Current | 2 Amperes per circuit |
| Maximum Inrush Current | 10 Amperes up to 10 ms |
| Maximum Switching Frequency | Once per second |
| Power Supply Drop Out Time | 10 milliseconds |
| Isolation Voltage | 1500 Volts |
| Dimensions | 8.83 x 3.56 x 4.42 inches |
| Weight | 4 pounds |
| Operating Temperature | 0-60 degrees Celsius |
| Storage Temperature | -40 to 100 degrees Celsius |
| Humidity | 5-95% non-condensing |
| Input Diagnostics | Open wire, Overtemperature, Failed Switch |
| Output Diagnostics | Short Circuit, Overload, No Load, Failed Switch, Overtemperature |
Datasheet & Downloads
Specification sheet for IC660BBD021. For lead time, condition and price, contact our team.
Related Configurations
Other published configurations in the same family — confirm the distinguishing specification against your installation:
| Related Part Number | Configuration Difference |
|---|---|
| ge-ic660bbd020-genius-block-i-o-16-channel-source-module | confirm the configuration against your installation |
| ge-fanuc-ic660bbd022-genius-source-i-o-block-16-circuit-24-vdc | confirm the configuration against your installation |
| ge-ic660bbd023-genius-i-o-sink-block-24vdc-16-circuit | confirm the configuration against your installation |
| ge-fanuc-ic660bbd024-32-circuit-source-i-o-block-for-genius-bus | confirm the configuration against your installation |
| ge-ic660bbd025-genius-i-o-32-circuit-sink-block-module | confirm the configuration against your installation |
| ge-fanuc-ic660bbd026-genius-i-o-block-input-output-circuit-12-24vdc | confirm the configuration against your installation |
Availability & Condition at AutoDCSTech
| Part Number | IC660BBD021 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | US |
