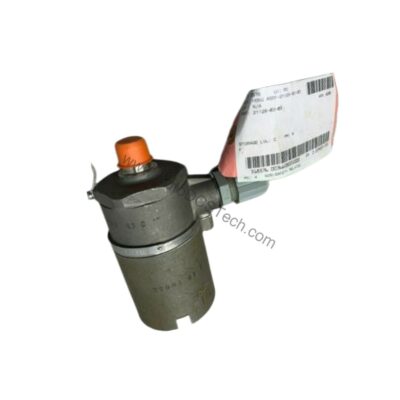

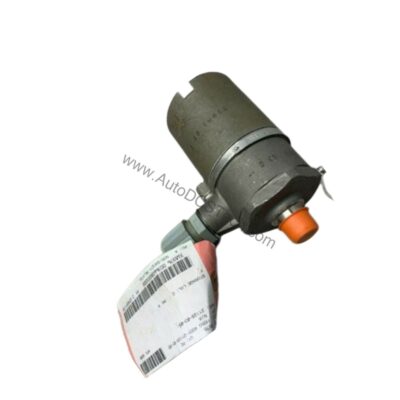

Bently Nevada 21128-14-02 Velocity Transducer Housing for Harsh Environments

Technical Specifications Breakdown

Key parameters for the 21128-14-02 are listed below for quick reference:

Industry Applications and Operational ROI

The 21128-14-02 housing is engineered for non-hazardous environments where moisture, corrosion, or physical abuse threaten sensor integrity. Typical applications include:

• Pump and Compressor Monitoring: In chemical plants or water treatment facilities, hose-down cleaning is routine. This housing prevents water ingress and extends sensor life.
• Paper and Steel Mills: High humidity and corrosive atmospheres demand robust enclosures. The 303 stainless steel body resists rust, reducing replacement frequency.
• General Machinery Protection: Where physical impact from debris or tools is possible, the housing acts as a shield, minimizing sensor damage and maintenance costs.

By using this housing, facilities reduce sensor replacement expenses and avoid production losses from false vibration alarms caused by environmental damage.

Installation and Setup Guidance

Proper installation ensures the IP65 and NEMA 4X ratings are achieved. Follow these steps:

1. Mounting: Use the 1/2-in 14 BSP internal thread to attach the housing securely to the machine. The tall cap accommodates Velomitor CT sensors or 9200/74712 Seismoprobe with isolated base.
2. Cable Connection: For Velomitor sensors, use cable part number 89477-AA to connect to the monitor. The 1/2-in NPT explosion-proof fitting provides a sealed cable entry.
3. Sealing: Ensure the neoprene O-ring is clean and properly seated before closing the housing. Tighten fittings to manufacturer torque specifications to maintain the moisture seal.
4. Inspection: After installation, verify that all gaskets and fittings are secure and that the housing is not submersed in liquid.

Maintenance and Reliability

Periodic inspection of the housing is recommended to maintain its protective properties:

• Visual Check: Examine the exterior for cracks, dents, or corrosion. Replace if damaged.
• O-ring Condition: Inspect the neoprene O-ring for wear or deformation. Replace if necessary to preserve the moisture seal.
• Fitting Tightness: Verify that the cable exit fitting remains tight. Loose fittings can compromise the IP65 rating.

This housing is designed for long-term reliability in harsh environments, but regular checks help prevent unexpected failures.

Compatibility and Integration

The 21128-14-02 housing is part of a family of Bently Nevada enclosures. For hazardous locations, the CA21128 explosion-proof version is CSA certified for Classes I, II, III, Division 1, Groups B–G. The BA42608 housing is used for BASEEFA-approved installations. All versions are available with a tall cap option for specific sensor configurations.

Selection Guide and Purchasing Advice

When ordering the 21128-14-02, confirm that your sensor type and cable requirements match the housing configuration. The tall cap is mandatory for Velomitor CT sensors or Seismoprobe sensors with isolated base. For non-hazardous conditions, this model is the preferred choice. Contact AutoDCSTech to verify current lifecycle status and availability before ordering. Our team can help you select the correct housing for your application.

Troubleshooting and Common Issues

• Water Ingress: If moisture appears inside, check the O-ring and cable fitting for proper sealing. Ensure the housing is not submerged.
• Sensor Fitment Issues: Verify that the internal mounting thread (1/2-in 20 UNF for 21128) matches your sensor. The tall cap provides extra clearance for certain sensor types.
• Corrosion: Although made of 303 stainless steel, prolonged exposure to harsh chemicals may cause surface staining. Clean with a mild detergent and inspect regularly.
