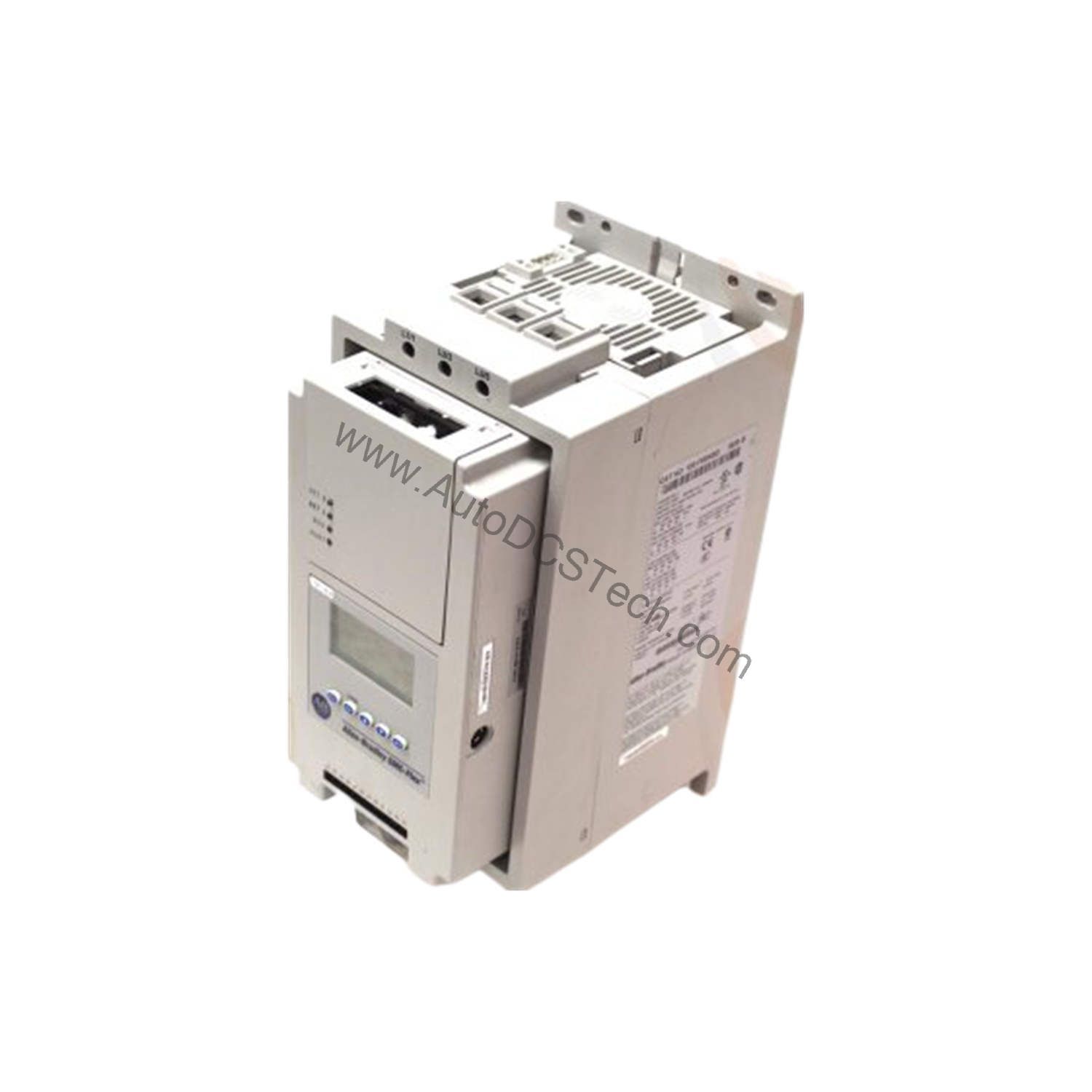

Allen-Bradley 150-F85NBDD SMC-Flex Soft Starter Controller 85A 60HP

Cost-Efficient Motor Control with the Allen-Bradley 150-F85NBDD

Industrial motor startups often cause mechanical stress and high inrush currents, leading to costly downtime and equipment wear. The Allen-Bradley 150-F85NBDD SMC-Flex soft starter addresses these challenges by providing microprocessor-controlled starting for standard 3-phase induction motors. This controller reduces total cost of ownership through built-in protection features and flexible communication options.

Technical Specifications Breakdown

Key parameters for the 150-F85NBDD are listed below for quick reference:

Industry Applications and ROI

The 85 Amp rating and 60 Horsepower capacity at 460 Volts AC make it suitable for medium-duty industrial applications. By minimizing inrush current, the controller lowers electrical stress on the power system, reducing peak demand charges and energy costs over time.

Installation and Setup Guidance

Mount the open-style controller in a clean, dry enclosure with adequate ventilation. Connect the 3-phase line input to terminals rated for 460 Volts AC. The control circuit requires 200 to 230 Volts AC. Use the 5-button keypad and LCD display to program starting modes and protection parameters. The built-in DPI communication port allows connection to an HMI or network module for remote monitoring.

Maintenance and Reliability

Periodically inspect the controller for dust accumulation and loose connections. The solid-state design reduces mechanical wear compared to electromechanical starters. The built-in protective features—such as underload, jam, stall, overvoltage, undervoltage, and electronic motor overload protection—help prevent costly failures. Verify the ambient temperature remains within the controller's rated range.

Compatibility and Integration

The 150-F85NBDD integrates easily with existing automation systems via the DPI communication interface. This allows connection to Allen-Bradley networks and HMI modules. The 4 programmable auxiliary contacts can be configured for network, alarm, up-to-speed, normal, or fault signaling, enabling seamless integration into control schemes.

Selection Guide and Purchasing Advice

When selecting a soft starter, match the current and voltage ratings to your motor nameplate. This controller is rated for 85 Amps and 460 Volts AC. For applications requiring faster stopping, optional smart motor braking control is available. Contact AutoDCSTech for current lifecycle status and availability before ordering.

Please verify current lifecycle status and availability with AutoDCSTech before ordering.
