Bently Nevada 2300/20_KIT-005-00 Condition Monitoring System Kit

Technical Specifications Breakdown

Key parameters for the 2300/20_KIT-005-00 are listed below for quick reference:

Industrial Applications

The Velomitor sensor and 2300/20 monitor provide accurate vibration data across a wide frequency range (0.2 Hz to 20 kHz), enabling early detection of bearing wear, imbalance, misalignment, and other faults. The system supports multiple channel types—accelerometers, velocity, radial vibration, thrust, and process variables—making it suitable for diverse assets in oil and gas, power generation, petrochemical, and manufacturing facilities. The 4-20 mA outputs and relay outputs integrate with existing PLC and DCS systems for alarm and shutdown logic.

Installation and Setup Guidance

Mount the 2300/20 monitor on a panel or DIN rail using the included adapter. Connect the Velomitor sensor (330500) with the 17 ft. (5.2 m) cable (9571) to the appropriate input channel. Use the 6 ft. shielded Ethernet cable to connect the monitor to your network for communication with System 1 software. Ensure the DC power supply (24 Vdc, not included) is within 18~36 Vdc and that the housing is properly grounded via the COM-to-chassis ground jumper. For hazardous area installations, use the stainless steel housing (105M6193-03).

Maintenance and Reliability

The 2300/20_KIT-005-00 is built for long-term reliability in harsh industrial environments. Its operating temperature range of -30°C to +65°C and humidity tolerance up to 95% non-condensing ensure consistent performance. The real-time clock battery has a powered life of 38 years at 50°C. Regularly inspect the housing seals and cable connections to maintain environmental protection. The monitor's LEDs provide at-a-glance status for OK, protection fault, bypass, and relay status, simplifying routine checks.

Complete Condition Monitoring Solution

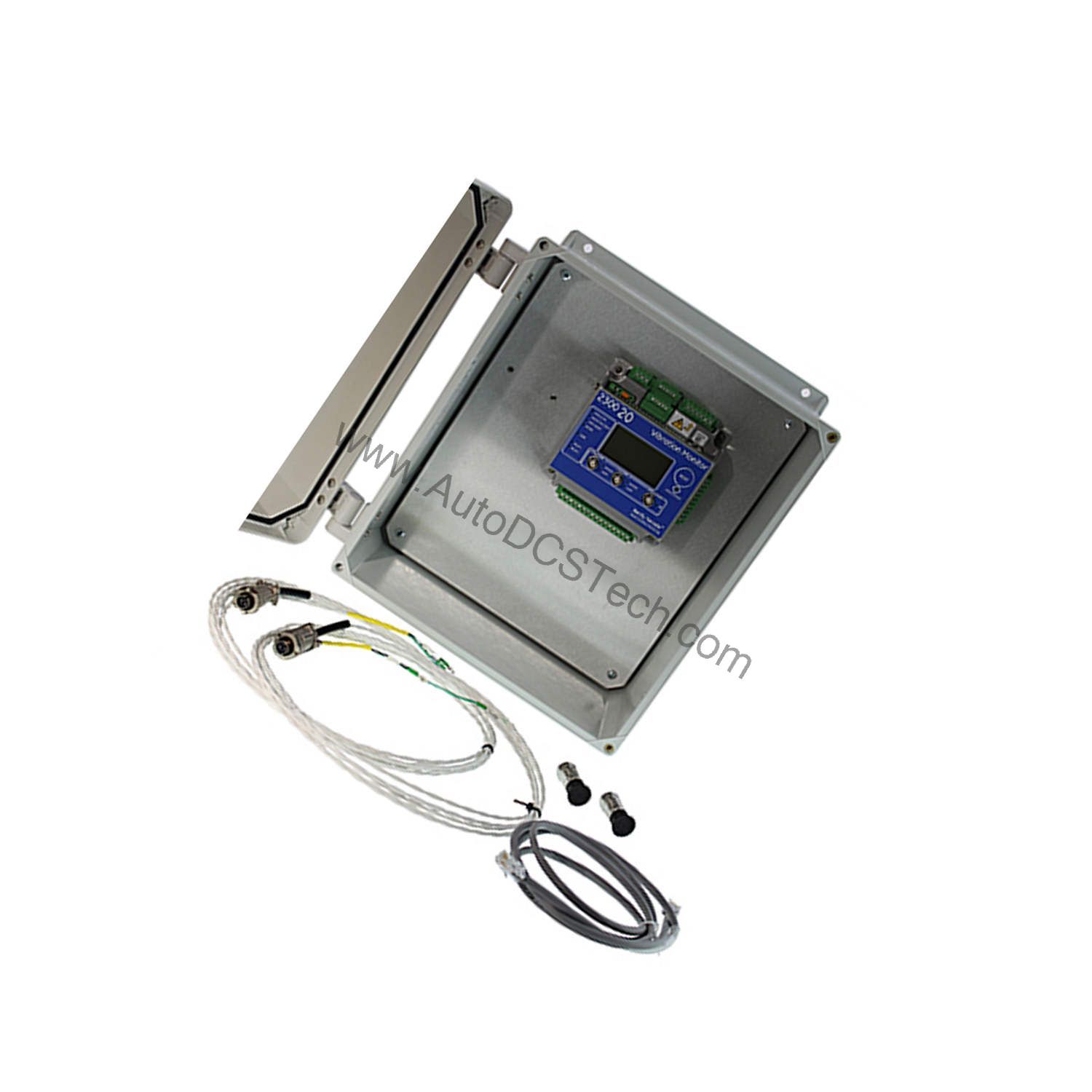

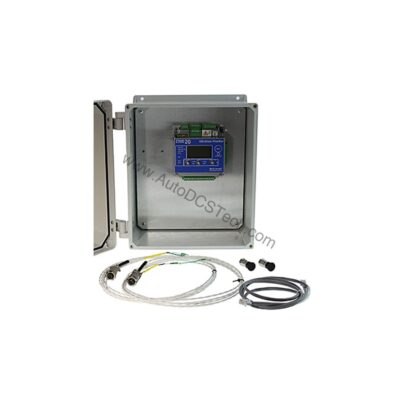

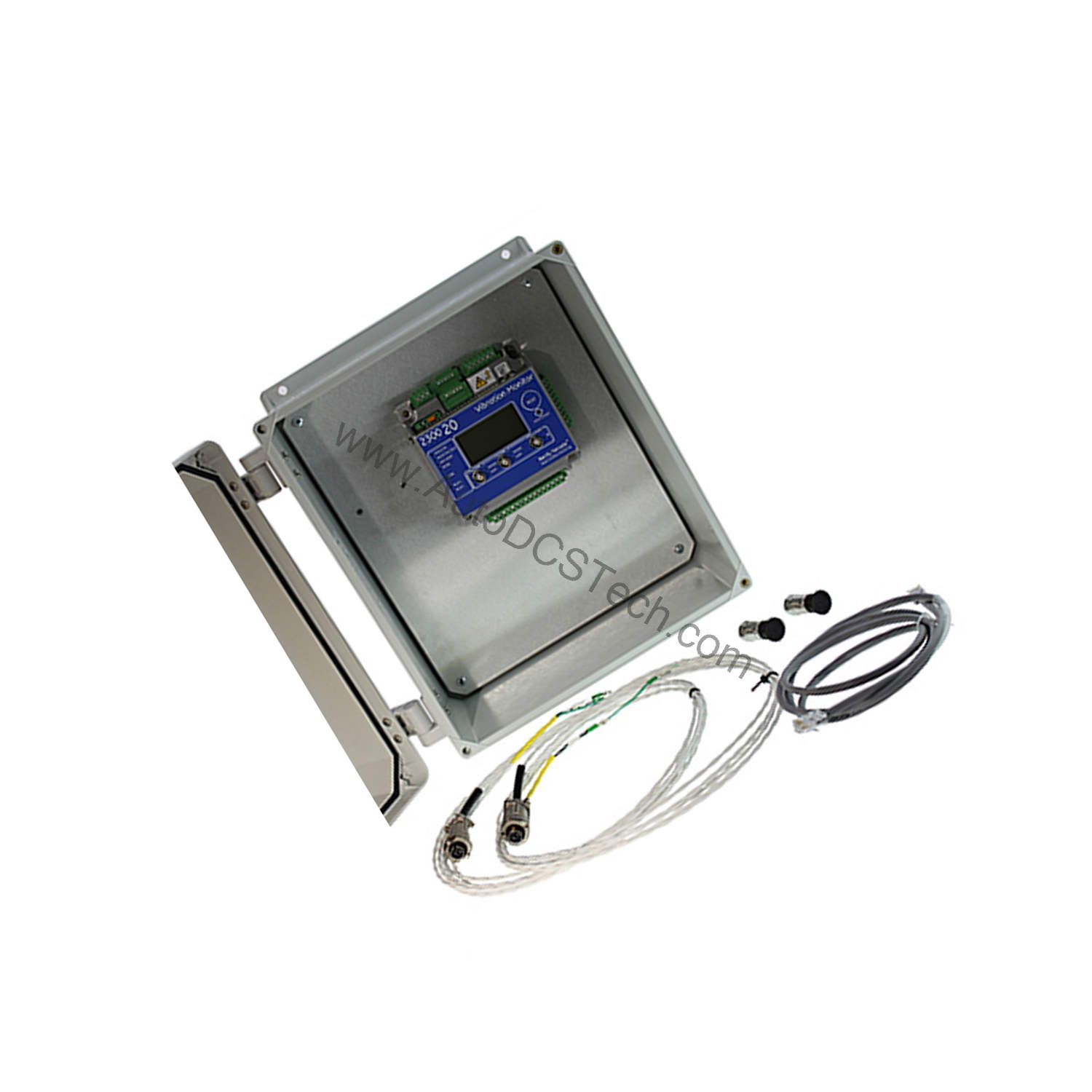

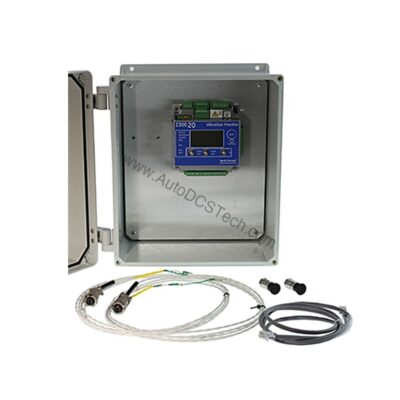

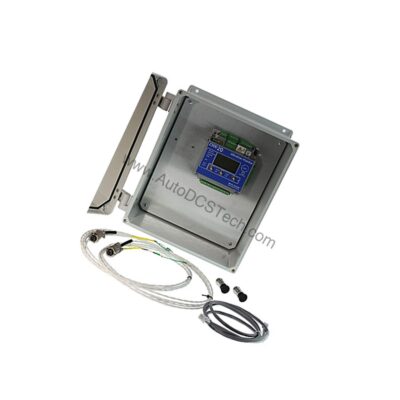

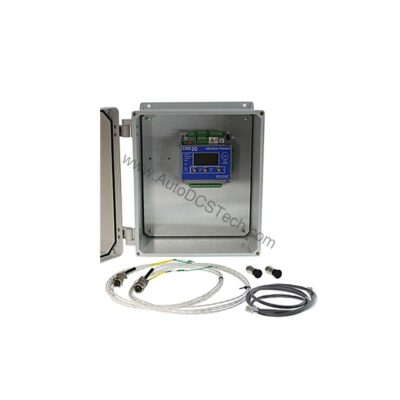

The Bently Nevada 2300/20_KIT-005-00 is a fully integrated condition monitoring system kit designed for industrial machinery protection and diagnostics. This kit combines a 2300/20 monitor, a Velomitor sensor (330500), a fiberglass or stainless steel housing, and a 6 ft. shielded Ethernet cable, providing everything needed for reliable vibration measurement in a single package.

Compatibility and Integration

The 2300/20 monitor communicates via Ethernet (10Base-T/100Base-TX, IEEE 802.3 compliant) and is fully compatible with Bently Nevada System 1 software for data analysis and trending. It supports Bently transducers and 2/3-wire custom transducers for accelerometers, Velomitors, and Proximitors. The two 4-20 mA outputs can be configured to transmit any measurement variable, and the three relay outputs offer dry-contact switching for alarm or control. The system also includes buffered BNC outputs for vibration and speed signals.

Selection Guide and Purchasing Advice

When ordering the 2300/20_KIT-005-00, verify the housing material required for your area classification: fiberglass (105M6193-01) for non-hazardous areas or stainless steel (105M6193-03) for hazardous areas. The kit does not include a Keyphasor sensor or 24 Vdc power supply—these must be sourced separately. AutoDCSTech stocks this kit and can assist with lifecycle status and availability. Please verify current lifecycle status and availability with AutoDCSTech before ordering.
