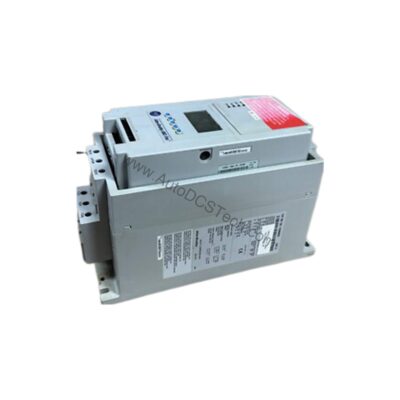

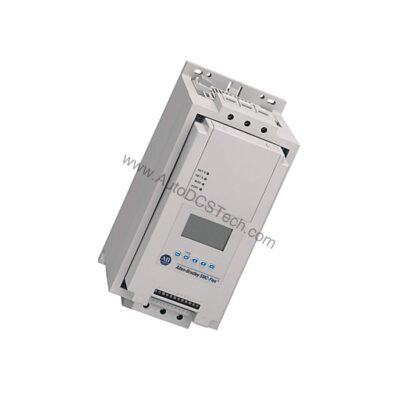

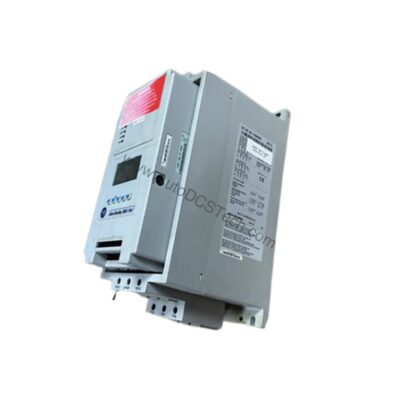

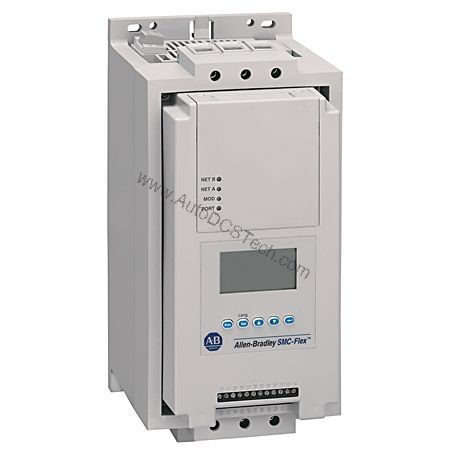

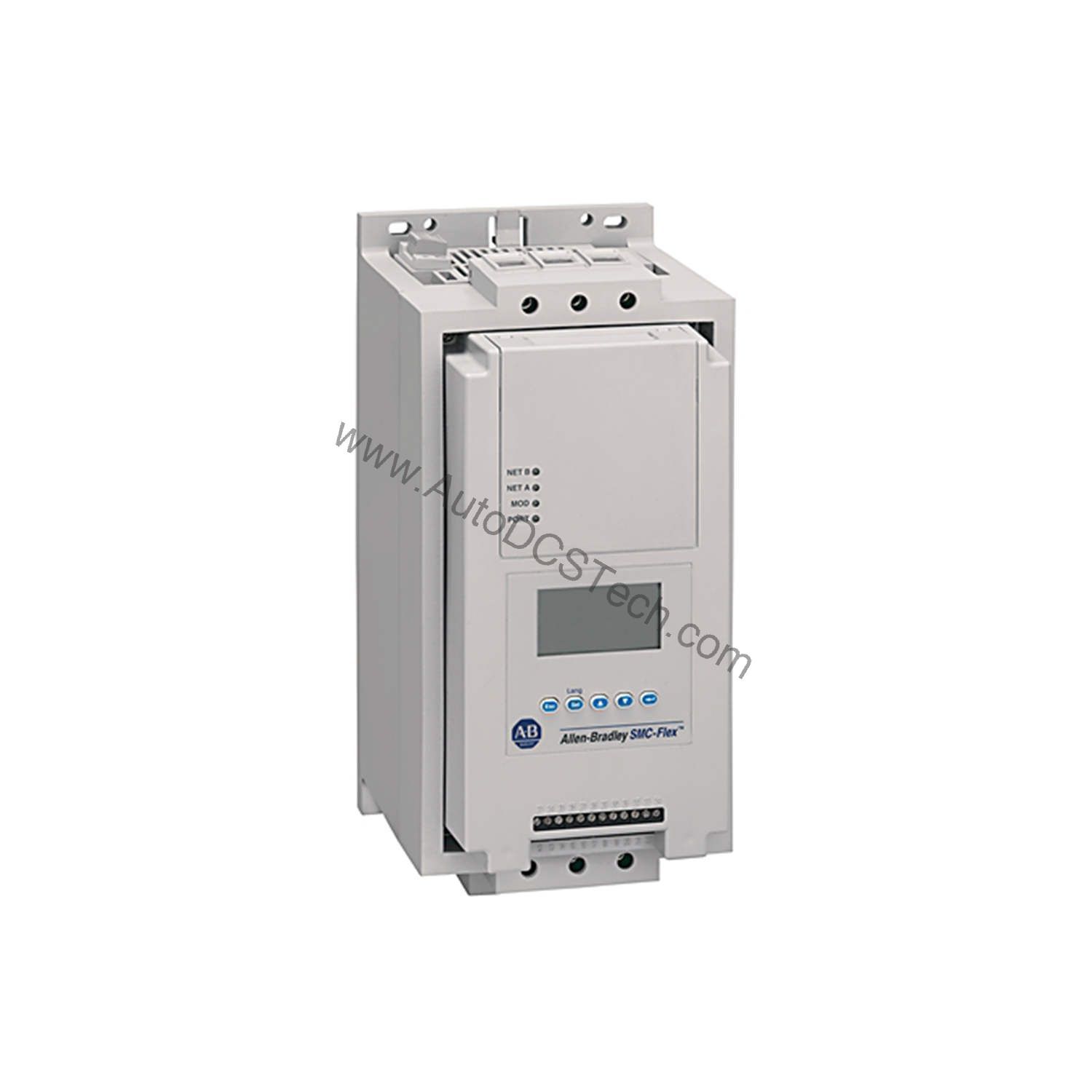

Allen-Bradley 150-F60NBR SMC Flex Solid State Controller 60A

Reliable Motor Control for Demanding Industrial Applications

The Allen-Bradley 150-F60NBR is an SMC Flex solid-state smart motor controller designed to provide precise starting and stopping for three-phase AC motors. The 150-F60NBR offers robust protection features and multiple operating modes to reduce mechanical stress and extend equipment life.

Technical Specifications Breakdown

Key parameters for the 150-F60NBR are listed below for quick reference:

Solving Common Motor Starting Challenges

In many facilities, direct-on-line starting causes high inrush current and mechanical shock, leading to premature wear on belts, gears, and couplings. The 150-F60NBR addresses this with seven standard operating modes, including soft start, current limit start, and dual ramp. These modes allow engineers to tailor acceleration and deceleration profiles to specific loads, reducing stress on the driven equipment and electrical system.

Built-In Diagnostic and Protection Features

This controller includes comprehensive protection against overload, overvoltage, underload, undervoltage, power loss, voltage unbalance, controller temperature, open gate, phase reversal, stall, jam, communication fault, and excessive starts per hour. These features help minimize unplanned downtime and simplify troubleshooting, especially in remote or unattended installations.

Installation and Setup Guidance

When installing the 150-F60NBR, ensure the input line voltage matches the 200-460V AC, 3-phase, 50/60 Hz supply. The control voltage requires 24V AC/DC. Mount the open enclosure in a clean, dry location with adequate ventilation. Use the backlit LCD and keypad to configure parameters such as ramp time, current limit, and protection thresholds. Always follow local electrical codes and the manufacturer's manual for wiring and commissioning.

Maintenance and Reliability

Periodically inspect the controller for dust accumulation, loose connections, and signs of overheating. The operating temperature range is 23 to 104 °F, and storage temperature is -4 to 167 °F. Maintain non-condensing relative humidity between 5 and 95%. Operating vibration tolerance is 1 g peak with 0.15 mm displacement; non-operating vibration is 2.5 g peak with 0.38 mm displacement. Operating shock rating is 5.5 g, and non-operating shock is 25 g. These environmental ratings ensure reliable performance in typical industrial settings.

Compatibility and Integration

The SMC Flex series integrates easily with PLCs and control systems via standard I/O and communication options. The 150-F60NBR supports multiple control inputs and provides status indicators for quick diagnostics. Its open enclosure design allows straightforward integration into existing motor control centers or custom panels.

Selection Guide and Purchasing Advice

When selecting a solid-state controller, verify that the 60 A rating and 40 Hp @ 460V AC match your motor full-load current and horsepower. The 200-460V AC input range covers common global voltages. For current lifecycle status and availability, please confirm with AutoDCSTech before ordering. Our team can help you find the right SMC Flex controller for your application.
