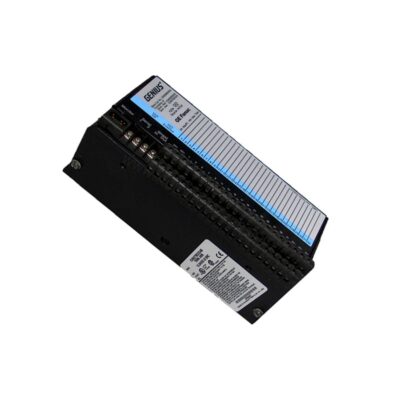

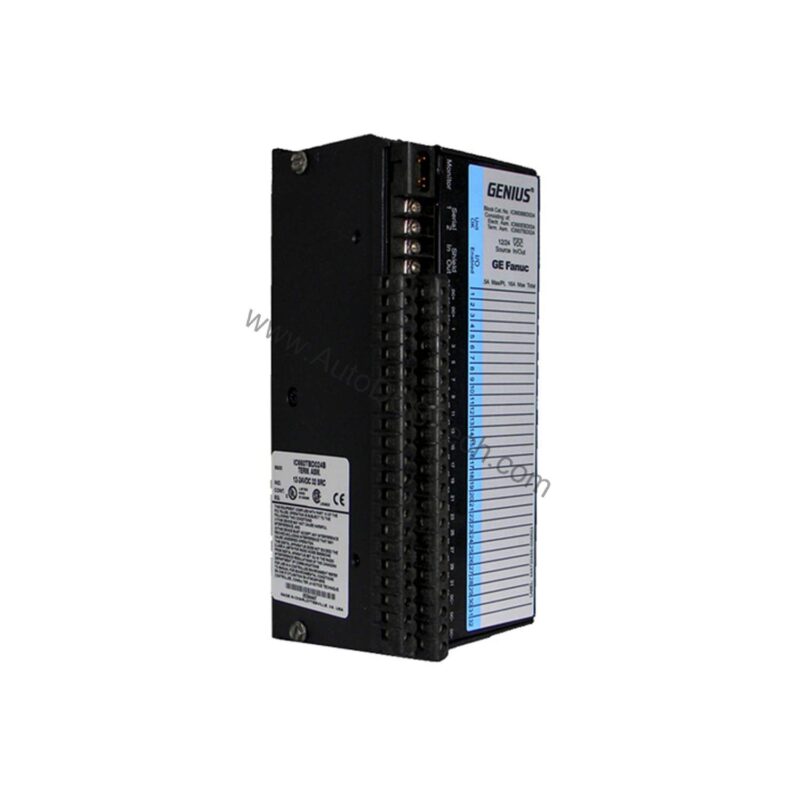

IC660BBD024: Discrete block I/O
The IC660BBD024 is the Discrete block I/O covered on this page. The attribute that decides whether it fits the existing installation without modification is 12/24VDC.
The reason to specify this exact variant is discrete block i/o. A communication or network module is judged by the protocol it carries and the bus it joins, not by its catalogue headline. discrete block i/o sets which controllers and field devices it can bridge, and the isolation and termination it provides. Matching 12/24VDC against the existing network topology avoids a module that fits the rack but cannot talk to the rest of the system.
| Feature | Specification |
|---|---|
| Manufacturer | GE Fanuc / GE Intelligent Platforms |
| Brand | GE |
| Part Number | IC660BBD024 |
| Series | Genius Block I/O |
| Part Number | IC660BBD024 |
| Module Type | Discrete block I/O |
| No. of Channels | 32 |
| Input Voltage | 12/24VDC |
| Input Impedance | 3.3k Ohms |
| Input Processing Time | 1.4 ms |
| Input Filters | 1-100ms |
| Max Output Current | 0.5 A per circuit |
| Max Inrush | 4 A for 10ms |
| Total Output | 16 A |
| Output Turn-On Delay | 0.5 ms |
| Diagnostics | Switch Fault |
| Isolation | 850 V |
| Power Dropout | 4 ms at 12V, 20 ms at 24V |
| Temperature | 0-60°C |
| Compatibility | Series 90-30, 90-70. |
Related Configurations
Other published configurations in the same family — confirm the distinguishing specification against your installation:
| Related Part Number | Configuration Difference |
|---|---|
| ge-ic660bbd020-genius-block-i-o-16-channel-source-module | confirm the configuration against your installation |
| ge-ic660bbd021-genius-i-o-16-circuit-sink-i-o-block-module | confirm the configuration against your installation |
| ge-fanuc-ic660bbd022-genius-source-i-o-block-16-circuit-24-vdc | confirm the configuration against your installation |
| ge-ic660bbd023-genius-i-o-sink-block-24vdc-16-circuit | confirm the configuration against your installation |
| ge-ic660bbd025-genius-i-o-32-circuit-sink-block-module | confirm the configuration against your installation |
| ge-fanuc-ic660bbd026-genius-i-o-block-input-output-circuit-12-24vdc | confirm the configuration against your installation |
· Last updated:
Availability & Condition at AutoDCSTech
| Part Number | IC660BBD024 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | US |
