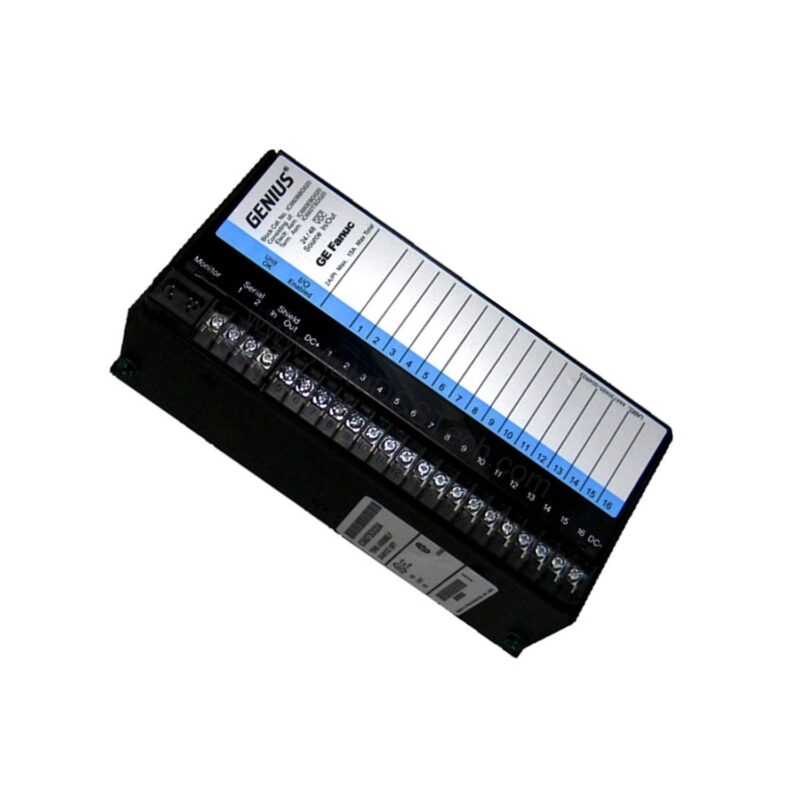

IC660BBD020: Genius Block I/O 16 Channel Source Module
The IC660BBD020 is the Genius Block I/O 16 Channel Source Module covered on this page. The attribute that decides whether it fits the existing installation without modification is 24/48 Volts.
What separates this variant from its siblings is genius block i/o 16 channel source module. On a rack I/O module the configuration that matters is the one that decides whether the unit drops into the existing slot and speaks the existing signal. genius block i/o 16 channel source module sets channel count, voltage or current class and isolation behaviour — the three things that decide compatibility with the backplane, the field wiring and the rest of the I/O. Matching 24/48 Volts against the rack rather than a generic datasheet avoids a module that installs but does not interface.
| Feature | Specification |
|---|---|
| Manufacturer | GE Fanuc / GE Intelligent Platforms |
| Brand | GE |
| Part Number | IC660BBD020 |
| Series | Genius I/O |
| Part Number | IC660BBD020 |
| Voltage | 24/48 Volts |
| No. of I/O | 16 |
| Load Current | 2 Amperes |
| Operating Voltage | 18-56 VDC |
| Input Response Time | 1.7 msec plus configurable filter |
| Output Response Time | 1.0 msec |
| Filter Time | 5 to 100 mS |
| Communication Protocol | Genius Protocol |
| Temperature | 0-60 degrees Celsius |
| Size | 8.83" x 3.50" x 3.94" |
Related Configurations
Other published configurations in the same family — confirm the distinguishing specification against your installation:
| Related Part Number | Configuration Difference |
|---|---|
| ge-ic660bbd021-genius-i-o-16-circuit-sink-i-o-block-module | confirm the configuration against your installation |
| ge-fanuc-ic660bbd022-genius-source-i-o-block-16-circuit-24-vdc | confirm the configuration against your installation |
| ge-ic660bbd023-genius-i-o-sink-block-24vdc-16-circuit | confirm the configuration against your installation |
| ge-fanuc-ic660bbd024-32-circuit-source-i-o-block-for-genius-bus | confirm the configuration against your installation |
| ge-ic660bbd025-genius-i-o-32-circuit-sink-block-module | confirm the configuration against your installation |
| ge-fanuc-ic660bbd026-genius-i-o-block-input-output-circuit-12-24vdc | confirm the configuration against your installation |
Availability & Condition at AutoDCSTech
| Part Number | IC660BBD020 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | US |
