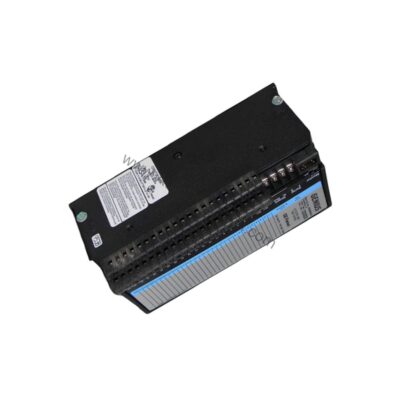

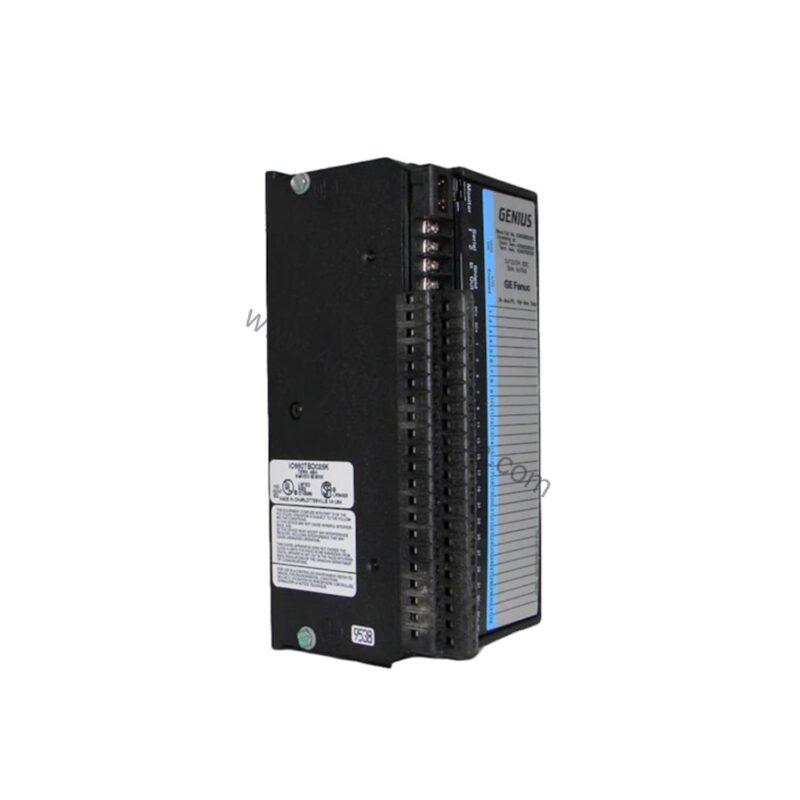

IC660BBD025: Genius I/O 32 Circuit Sink Block Module
The IC660BBD025 is the Genius I/O 32 Circuit Sink Block Module covered on this page. The attribute that decides whether it fits the existing installation without modification is 5/12/24 VDC.
The reason to specify this exact variant is genius i/o 32 circuit sink block module. On a rack I/O module the configuration that matters is the one that decides whether the unit drops into the existing slot and speaks the existing signal. genius i/o 32 circuit sink block module sets channel count, voltage or current class and isolation behaviour — the three things that decide compatibility with the backplane, the field wiring and the rest of the I/O. Matching 5/12/24 VDC against the rack rather than a generic datasheet avoids a module that installs but does not interface.
| Feature | Specification |
|---|---|
| Manufacturer | GE Fanuc / GE Intelligent Platforms |
| Brand | GE |
| Part Number | IC660BBD025 |
| Series | Genius I/O |
| Part Number | IC660BBD025 |
| Number of Circuits | 32 |
| Voltage | 5/12/24 VDC |
| Input Signal Voltage | 5/12/24 VDC TTL |
| Input Processing Time | 1.4 ms |
| Load Current | 0.5 A |
| Max Inrush Current | 4 A up to 10 ms |
| Block to Block Isolation | 850 V |
| Heat Dissipation | 11 W (8 inputs), 18 W (32 inputs) |
| Dimensions | 8.83 x 3.58 x 4.7 in |
| Operating Temp | 0° to 60°C |
| Storage Temp | -40° to 100°C |
| Humidity | 5-95% non-condensing |
| Lifecycle | Discontinued |
Related Configurations
Other published configurations in the same family — confirm the distinguishing specification against your installation:
| Related Part Number | Configuration Difference |
|---|---|
| ge-ic660bbd020-genius-block-i-o-16-channel-source-module | confirm the configuration against your installation |
| ge-ic660bbd021-genius-i-o-16-circuit-sink-i-o-block-module | confirm the configuration against your installation |
| ge-fanuc-ic660bbd022-genius-source-i-o-block-16-circuit-24-vdc | confirm the configuration against your installation |
| ge-ic660bbd023-genius-i-o-sink-block-24vdc-16-circuit | confirm the configuration against your installation |
| ge-fanuc-ic660bbd024-32-circuit-source-i-o-block-for-genius-bus | confirm the configuration against your installation |
| ge-fanuc-ic660bbd026-genius-i-o-block-input-output-circuit-12-24vdc | confirm the configuration against your installation |
Availability & Condition at AutoDCSTech
| Part Number | IC660BBD025 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | US |
