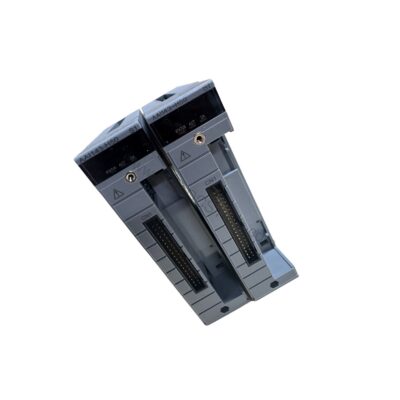

AAI143-S00: Analog Input Module
The AAI143-S00 is the Analog Input Module covered on this page. The attribute that decides whether it fits the existing installation without modification is 0.3 kg.
On this unit analog input module is the figure that decides fit and function. On a rack I/O module the configuration that matters is the one that decides whether the unit drops into the existing slot and speaks the existing signal. analog input module sets channel count, voltage or current class and isolation behaviour — the three things that decide compatibility with the backplane, the field wiring and the rest of the I/O. Matching 0.3 kg against the rack rather than a generic datasheet avoids a module that installs but does not interface.
| Feature | Specification |
|---|---|
| Manufacturer | Yokogawa |
| Brand | Yokogawa |
| Part Number | AAI143-S00 |
| Product Type | Analog Input Module |
| Number of Input Channels | 16, isolated |
| Input Signal | 4-20 mA |
| Allowable Input Current | 24 mA |
| Withstanding Voltage | 1500 V AC (input to system) |
| Accuracy | ±16 µA |
| Data Update Period | 10 ms |
| Maximum Current Consumption | 230 mA (5 V DC), 540 mA (24 V DC) |
| Weight | 0.3 kg |
· Last updated:
Availability & Condition at AutoDCSTech
| Part Number | AAI143-S00 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | Japan |
