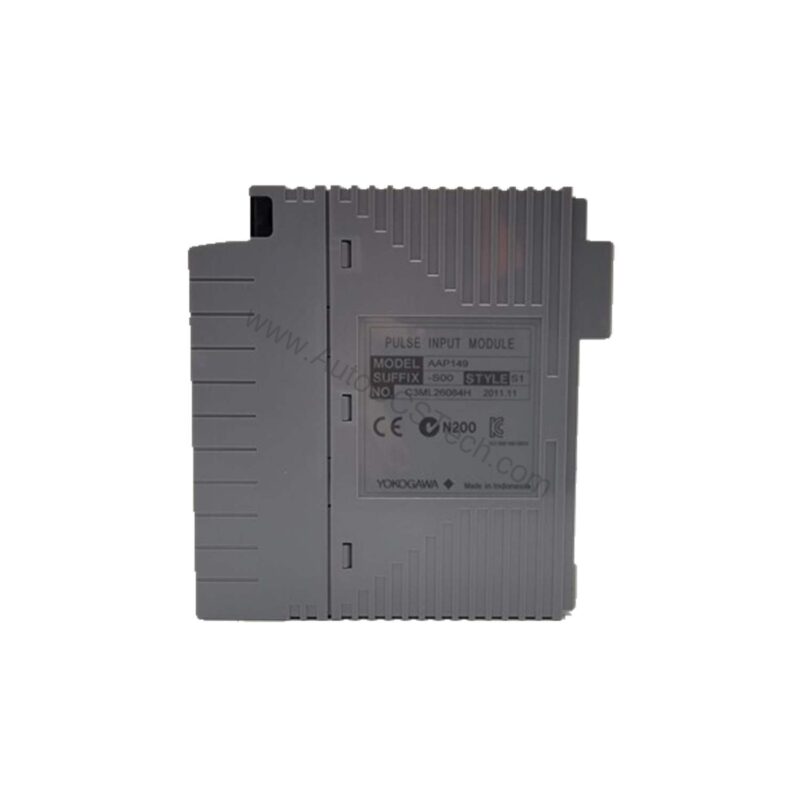

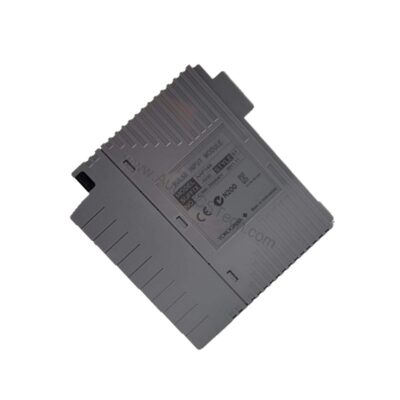

AAP149: 16 Channel Pulse Input Module
The AAP149 is the 16 Channel Pulse Input Module covered on this page. The attribute that decides whether it fits the existing installation without modification is Approx. 0.30 kg.
The reason to specify this exact variant is 16 channel pulse input module. On a rack I/O module the configuration that matters is the one that decides whether the unit drops into the existing slot and speaks the existing signal. 16 channel pulse input module sets channel count, voltage or current class and isolation behaviour — the three things that decide compatibility with the backplane, the field wiring and the rest of the I/O. Matching Approx. 0.30 kg against the rack rather than a generic datasheet avoids a module that installs but does not interface.
| Feature | Specification |
|---|---|
| Manufacturer | Yokogawa |
| Brand | Yokogawa |
| Part Number | AAP149 |
| Number of input channels | 16, non-isolated |
| Input signal | Transistor contact (open collector) |
| Input frequency | 0 to 6 kHz |
| Pulse detection edge | Trailing edge |
| Data update period | 2 ms |
| Maximum current consumption | 400 mA (5 V DC) |
| Weight | Approx. 0.30 kg |
| External connection | Dedicated cable (KS2) |
· Last updated:
Availability & Condition at AutoDCSTech
| Part Number | AAP149 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | Japan |
