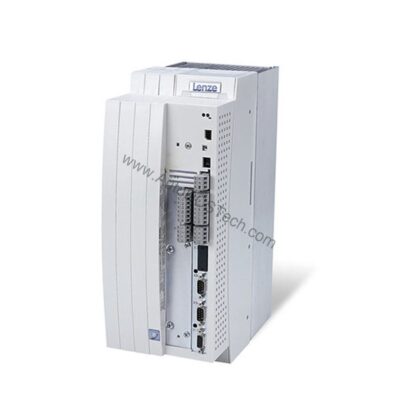

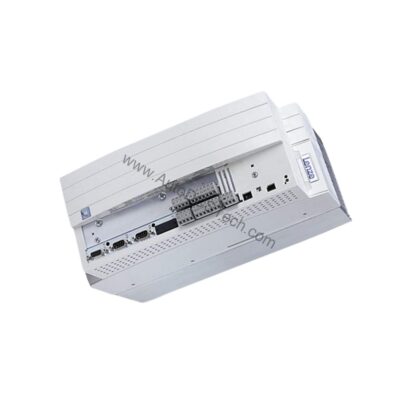

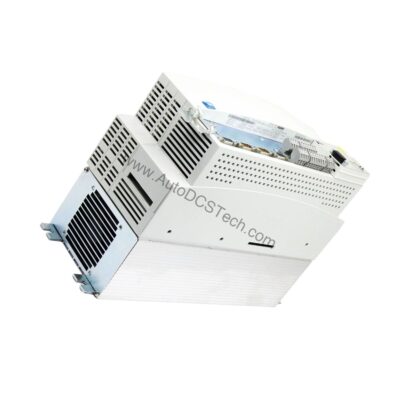

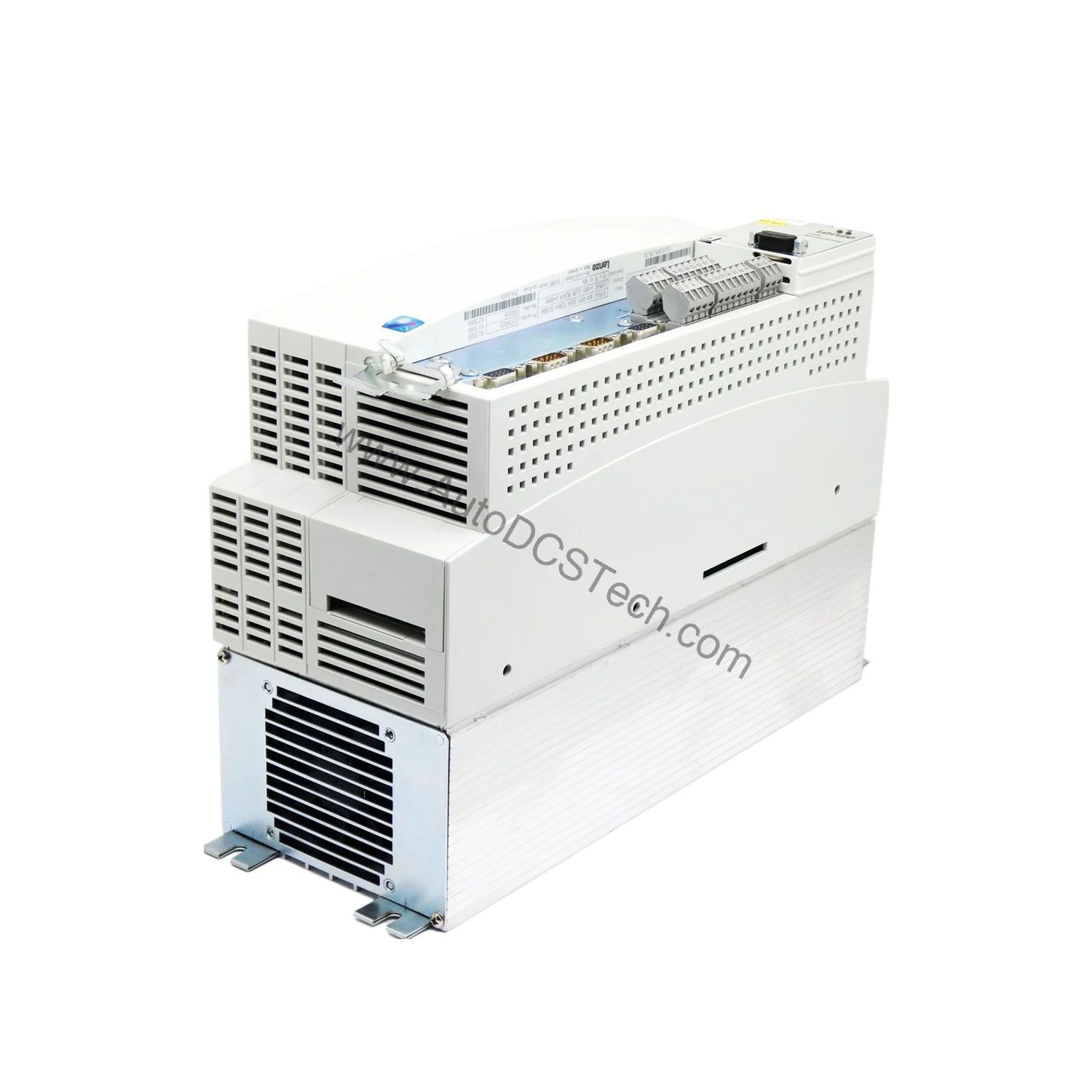

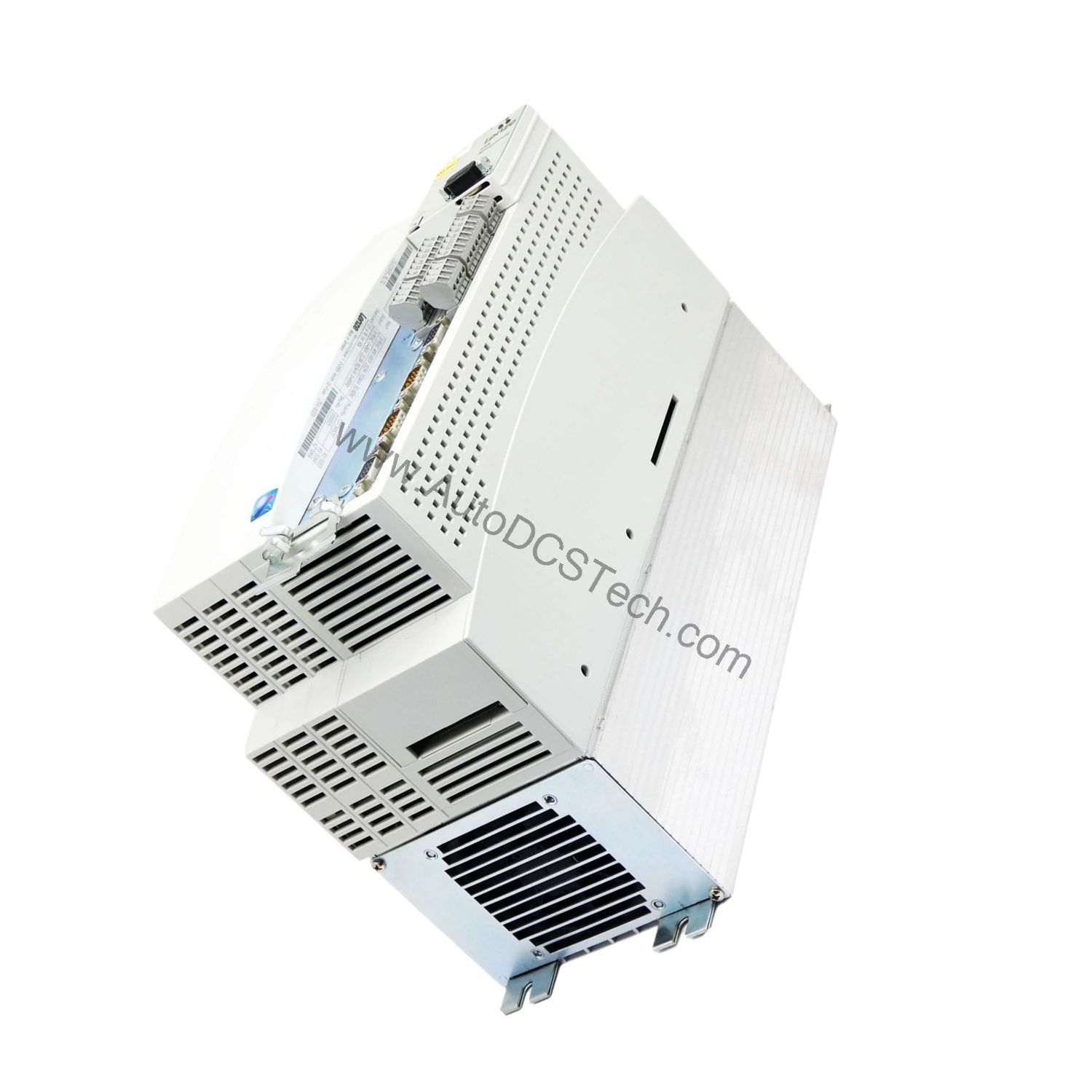

Lenze EVS9322-ESV004 Servo Controller 0.75kW

Technical Specifications Breakdown

Key parameters for the EVS9322-ESV004 are listed below for quick reference:

Industrial Applications and Benefits

The EVS9322-ESV004 is suitable for applications that demand precise speed and position control. Typical uses include conveyor systems, packaging machinery, and material handling equipment. The wide output frequency range (0 to 480 Hertz) allows flexible operation across different motor types. The safe standstill function adds a layer of safety during maintenance or emergency stops, which is critical for protecting personnel and equipment. By choosing this servo controller, you ensure consistent performance and reduce the risk of unplanned downtime.

Installation and Setup Guidance

When installing the EVS9322-ESV004, follow these engineer-level recommendations:

• Mounting: Use the panel mount method to secure the unit inside a control cabinet. Ensure adequate clearance for airflow and cooling.
• Wiring: Connect the 3-phase supply within the rated voltage range (400 to 480 Volts AC). Always verify the motor connections match the output specifications.
• Environment: Operate within the ambient temperature range of -10 to 60°C. Avoid exposure to excessive dust or moisture beyond the IP20 rating.
• Display: Use the LED display to monitor operational parameters during commissioning and troubleshooting.

Maintenance and Reliability

To maintain long-term reliability, inspect the controller periodically for dust accumulation or loose connections. The IP20 enclosure protects against solid objects larger than 12 mm, but it is not dust-tight. Regular cleaning with a dry, lint-free cloth is recommended. Check that the operating temperature stays within the specified limits. The vibration resistance of 9.81 m/s² (1G) ensures stable operation in environments with moderate vibration. For any issues, consult the manufacturer's documentation or contact AutoDCSTech for expert support.

Precision Motor Control with the Lenze EVS9322-ESV004

Industrial motion control demands components that deliver both precision and reliability. The Lenze EVS9322-ESV004 servo controller, part of the proven Series 9300, is engineered to meet these challenges. With a rated active power of 0.75 kilowatt (1 horsepower), this servo inverter provides efficient and accurate motor control for a wide range of automation tasks. Its robust design and advanced features make it a dependable choice for maintaining production uptime.

Selection Guide and Purchasing Advice

When selecting a servo controller, verify that the power rating, voltage, and frequency match your motor and application requirements. The Lenze EVS9322-ESV004 offers a balanced combination of performance and safety features. AutoDCSTech provides genuine industrial automation parts with fast shipping and professional service. Contact us to confirm availability and current lifecycle status before ordering. Our team can help you find the right replacement or upgrade for your system.

Troubleshooting and Common Issues

• No display: Check the input power supply and fuses. Ensure the supply voltage is within 400 to 480 Volts AC.
• Overheating: Verify that the ambient temperature is within -10 to 60°C and that ventilation is not blocked.
• Motor not running: Confirm that the output frequency and voltage settings match the motor specifications. Check all wiring connections.
• Vibration issues: Ensure the unit is mounted securely and that the environment does not exceed the specified vibration limits.

For persistent problems, contact AutoDCSTech for technical assistance. We are here to help you keep your operations running smoothly.
