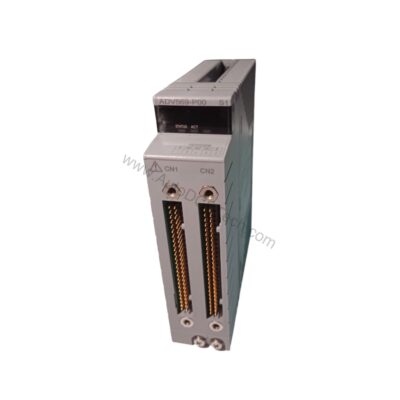

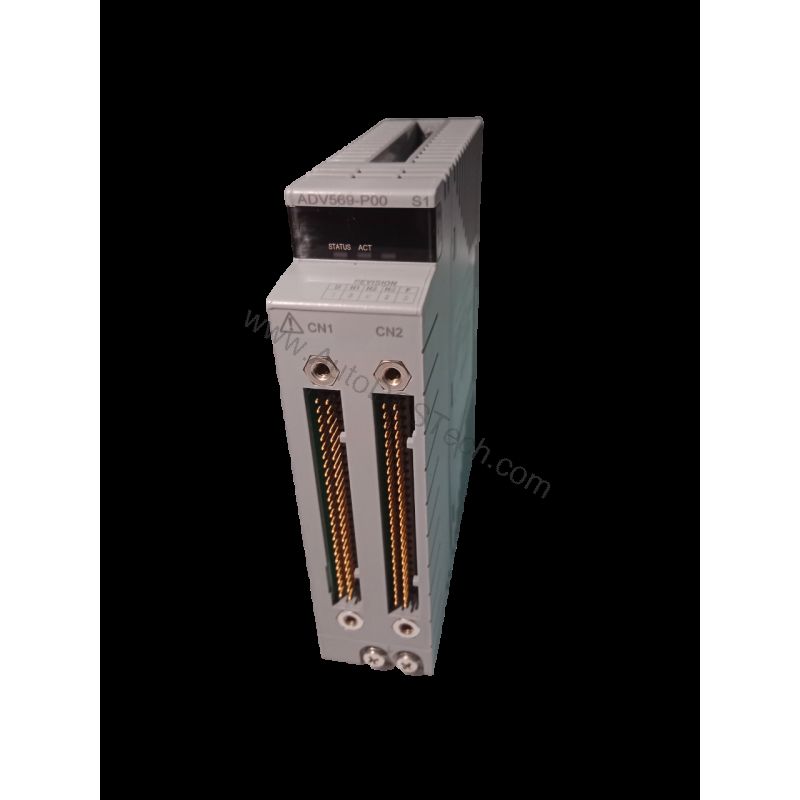

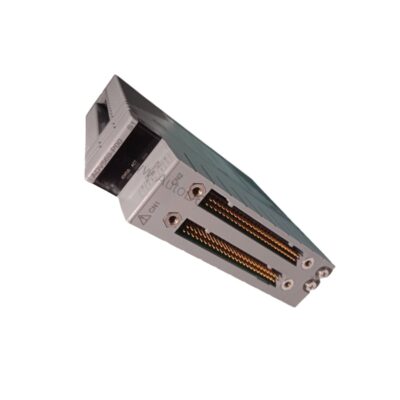

ADV569-P00: 64 Channel Digital Output Module
The ADV569-P00 is the 64 Channel Digital Output Module covered on this page. The attribute that decides whether it fits the existing installation without modification is Approx. 0.30 kg.
What separates this variant from its siblings is 64 channel digital output module. On a rack I/O module the configuration that matters is the one that decides whether the unit drops into the existing slot and speaks the existing signal. 64 channel digital output module sets channel count, voltage or current class and isolation behaviour — the three things that decide compatibility with the backplane, the field wiring and the rest of the I/O. Matching Approx. 0.30 kg against the rack rather than a generic datasheet avoids a module that installs but does not interface.
| Feature | Specification |
|---|---|
| Manufacturer | Yokogawa |
| Brand | Yokogawa |
| Part Number | ADV569-P00 |
| Part Number | ADV569-P00 |
| Number of I/O | 64-channel input |
| Signal Isolation | Common every 16-channel |
| Output Signal | Transistor contact |
| Output Contact Rating | Inductive load, resistive load: 30 V DC, 100 mA |
| Output Response Time | 16 ms or less |
| Pulse Width | 8 ms to 7200 s |
| Maximum Current Consumption | 800 mA (5 V DC) |
| Weight | Approx. 0.30 kg |
Availability & Condition at AutoDCSTech
| Part Number | ADV569-P00 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | Japan |
