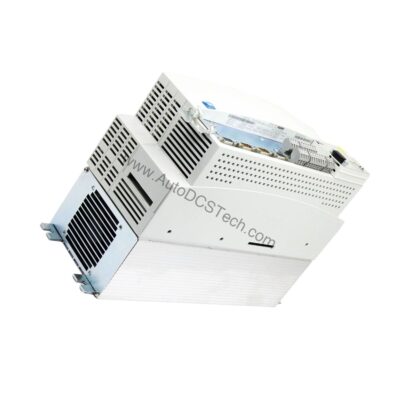

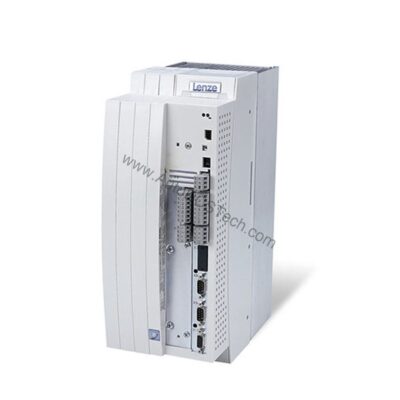

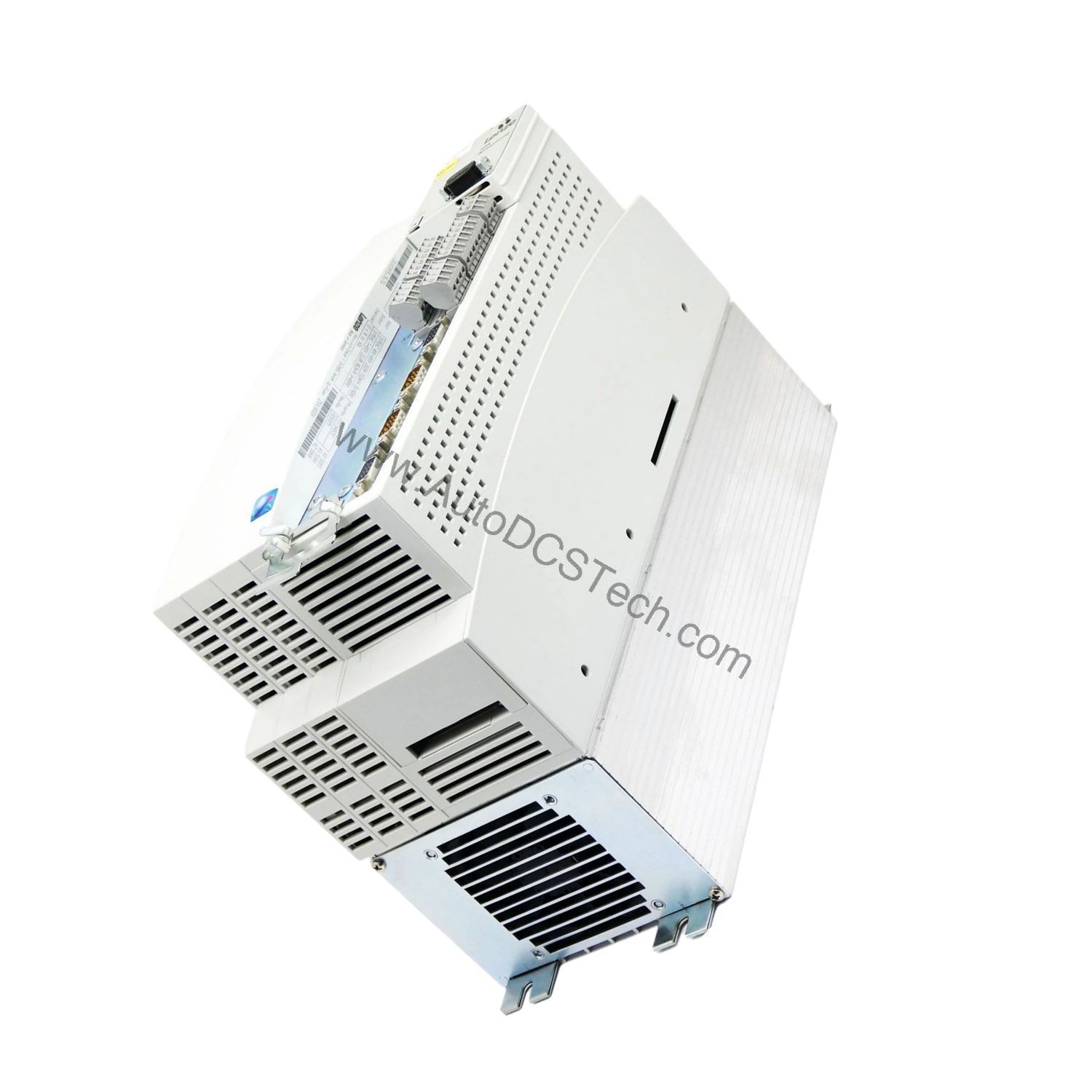

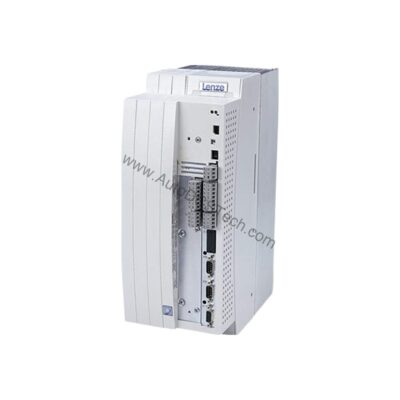

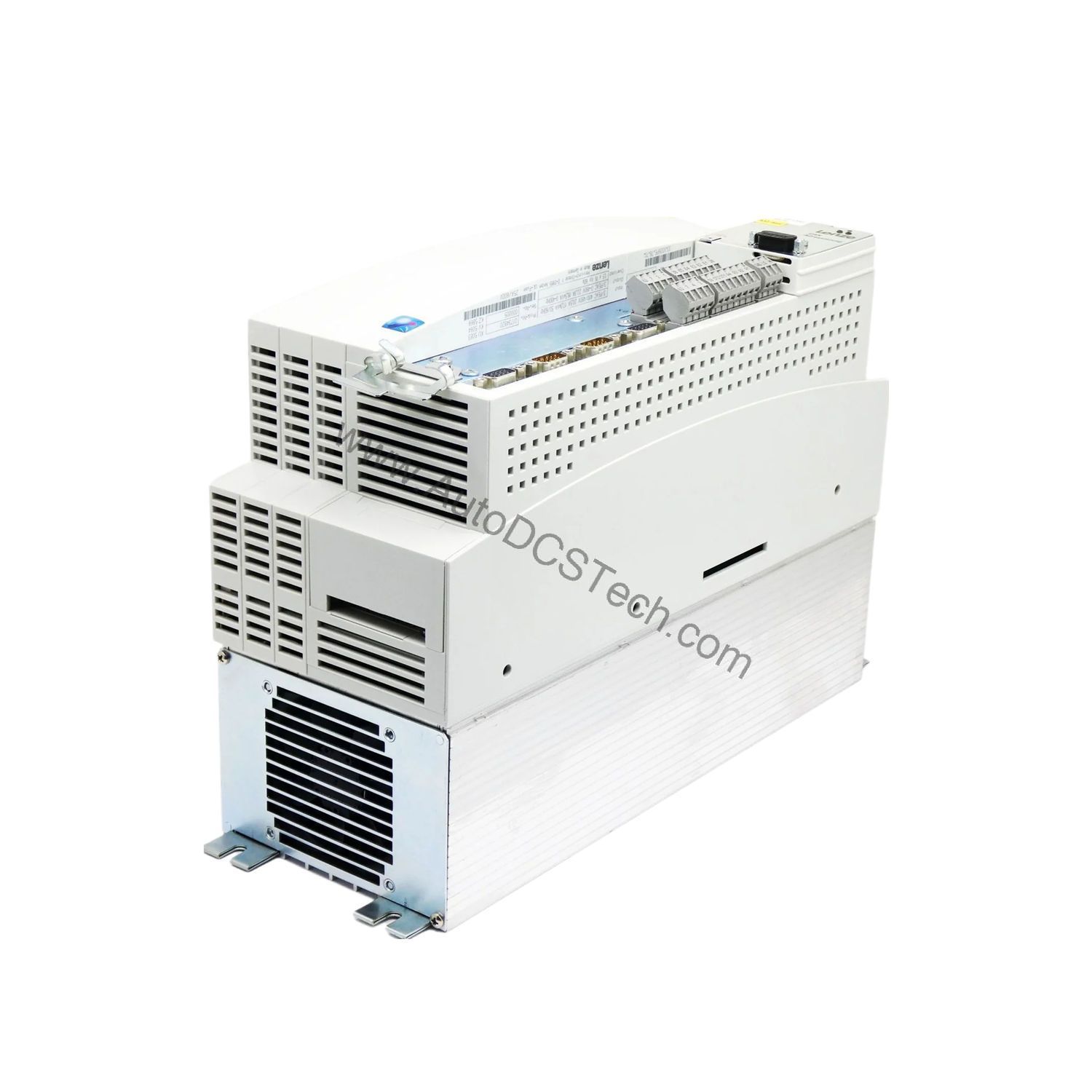

Lenze EVS9322-EI Servo Controller Module 0.75 kW | Series 9300

Overview

Industrial motion control demands precision, reliability, and the ability to adapt to varying power conditions. The Lenze EVS9322-EI servo controller module, part of the Series 9300, is engineered to meet these needs with a compact, built-in design. It delivers a motor power of 0.75 kW and is rated for voltages of 400V and 480V, offering flexibility for a range of servo applications.

This controller is built for three-phase power systems, with a mains voltage range of 320 to 528 VAC. It supports mains frequencies of 50/60 Hz, making it suitable for standard industrial environments worldwide. Whether you are upgrading an existing line or designing a new machine, the EVS9322-EI provides dependable servo control.

Technical Specifications Breakdown

Key parameters for the EVS9322-EI are listed below for quick reference:

Industry Applications

The EVS9322-EI is a versatile servo controller that fits into various industrial settings.

• Packaging Machinery: Precise speed and position control for conveyor belts and filling stations.
• Material Handling: Reliable operation in automated storage and retrieval systems.
• Textile Production: Consistent tension control for spinning and weaving equipment.

In each case, the controller's ability to handle 400V or 480V inputs ensures compatibility with different regional power grids, reducing the need for additional transformers.

Installation & Setup Guidance

Proper installation is crucial for optimal performance. The EVS9322-EI is designed as a built-in unit, meaning it is intended for mounting inside an enclosure. Follow these guidelines:

• Ensure the enclosure provides adequate ventilation to maintain the operating temperature between 0 and 40 degrees Celsius without derating.
• Verify that the mains supply is three-phase and within the 320 to 528 VAC range before connecting.
• Use appropriate fusing and disconnects as per local electrical codes.
• Ground the unit securely to prevent electrical noise and ensure safety.

Always refer to the official Lenze documentation for detailed wiring diagrams and parameter settings.

Maintenance & Reliability

The EVS9322-EI is built for long service life, but routine maintenance is essential. Inspect the unit periodically for dust accumulation, especially on cooling fins and fans. Keep the ambient temperature within the specified range to avoid derating. Check all electrical connections for tightness and signs of corrosion. Because the IP20 rating offers only basic protection against solid objects, ensure the enclosure prevents entry of conductive dust and moisture.

Compatibility & Integration

The EVS9322-EI belongs to the Lenze Series 9300, a well-established family of drives and controllers. This module is designed to work with other Series 9300 components, allowing for straightforward integration into existing systems. Its three-phase input and 50/60 Hz frequency support make it compatible with standard industrial power supplies.

Selection Guide & Purchasing Advice

When selecting a servo controller, consider the motor power, voltage rating, and environmental conditions. The EVS9322-EI is an choice for applications requiring 0.75 kW output and dual voltage capability. At AutoDCSTech, we stock genuine Lenze parts to ensure reliability. Before ordering, verify that the part number matches your requirements and that the unit is available for your application.

Troubleshooting & Common Issues

If the controller fails to operate, check the following:

• No Power: Verify that the mains voltage is present and within the 320 to 528 VAC range.
• Overheating: Ensure the ambient temperature does not exceed 40 degrees Celsius and that airflow is not blocked.
• Motor Not Running: Confirm that the motor power rating does not exceed 0.75 kW and that the wiring is correct.

For persistent issues, consult the Lenze technical support or contact AutoDCSTech for assistance.

Please verify current lifecycle status and availability with AutoDCSTech before ordering.
