Product Overview

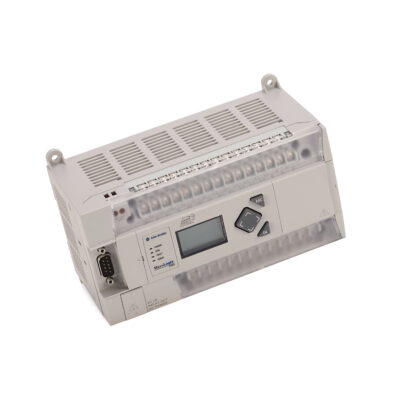

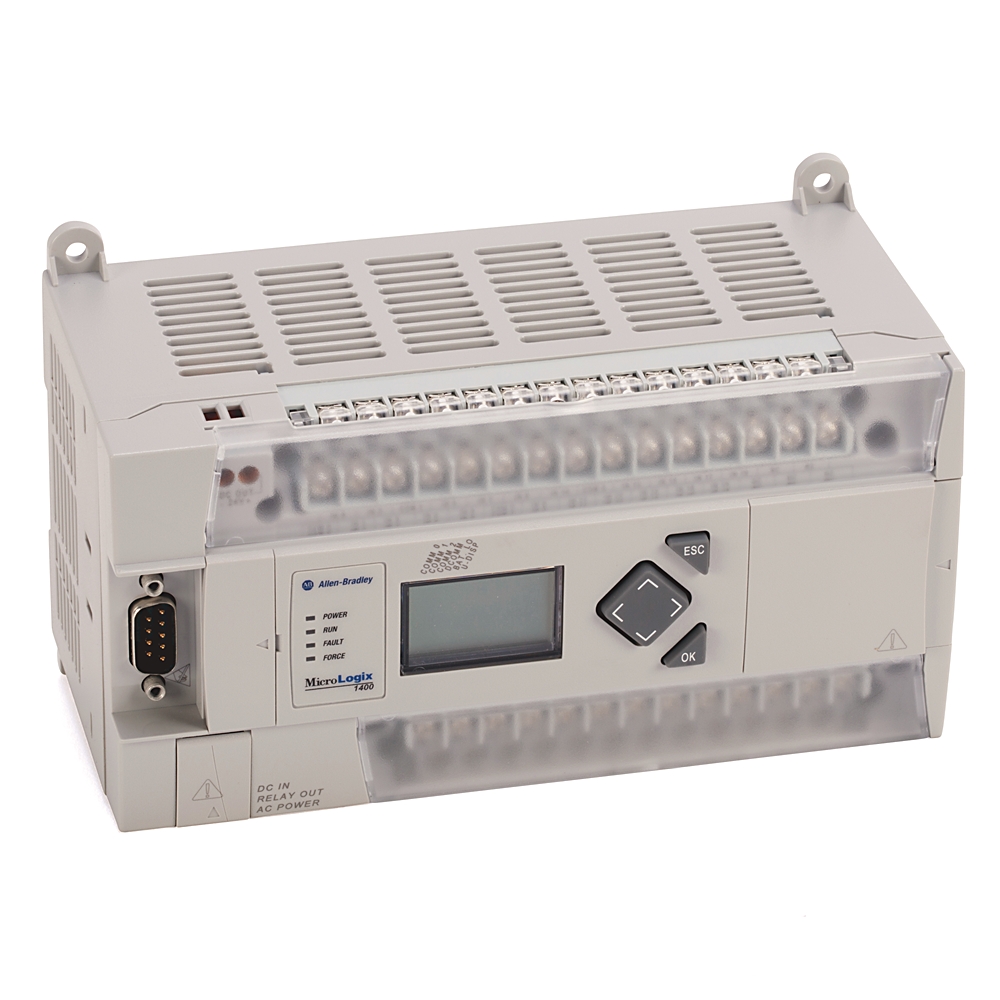

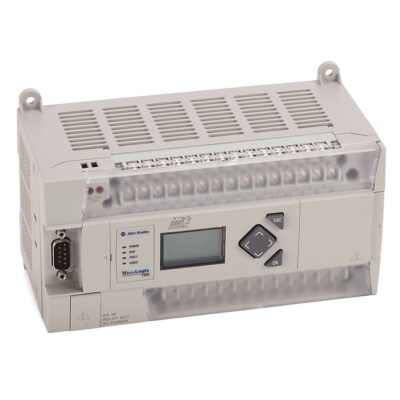

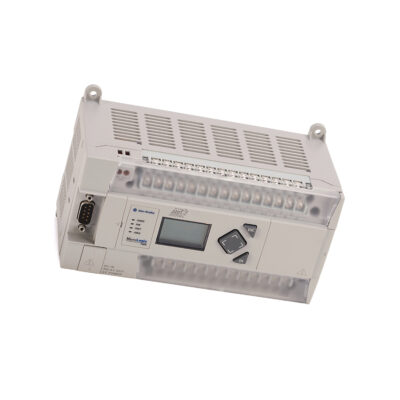

The Allen-Bradley 1766-L32BWA is a MicroLogix 1400 Controller from the Bulletin 1766 product family. Designed for machine-level automation and small processes, this compact controller integrates three communication ports: a combo RS232/RS485 port, an isolated RS232 port, and an Ethernet communication port. It features embedded input and output channels, including twelve fast 24V DC inputs, eight normal 24V DC inputs, and twelve relay outputs.
Technical Specifications Breakdown
Key parameters for the 1766-L32BWA are listed below for quick reference:
| Feature | Specification |
|---|---|
| Manufacturer | Rockwell Automation |
| Brand | Allen-Bradley |
| Part Number | 1766-L32BWA |
| Series | MicroLogix 1400 |
| Product Type | MicroLogix 1400 Controller |
| Number of I/O | 32 points |
| Inputs | (12) Digital Fast 24V DC, (8) Digital Normal 24V DC |
| Outputs | (12) Relay |
| Memory | 20 KB |
| Operating Power | 110-240V AC |
| Weight | 2 lbs |
| Dimensions | 90 x 180 x 87 mm (3.5 x 7.087 x 3.43 in) |
| Communication Ports | 1 RS232/RS485; 1 Ethernet; 1 RS232 |
| Feature | Built-in RTC |
Industry Applications
This controller is well-suited for machine-level automation tasks, such as controlling conveyor systems or packaging machinery. Its high-speed inputs (100 kHz) handle fast switching devices, while the relay outputs manage various voltage loads. The DNP3 protocol support makes it ideal for substation automation, communicating with intelligent electronic devices (IEDs). For factory automation, the ASCII protocol enables barcode reading and data collection.
Installation & Setup Guidance
Mount the controller on a DIN rail or panel in a clean, dry environment. Use wire sizes from 22 to 14 AWG for connections. Ensure input power is within 100 to 240 VAC at 47-63 Hz. The controller supports up to seven 1762 expansion I/O modules for additional flexibility.
Maintenance & Reliability
Inspect the controller periodically for dust or debris. Keep the enclosure open to allow airflow. The built-in real-time clock (RTC) provides time-based control reference. Since the 1766-L32BWA is discontinued, verify lifecycle status with SpareTechPLC before ordering.
Compatibility & Integration
This controller communicates via serial protocols (DF1, ASCII, MODBUS RTU, DNP3, DH485) and Ethernet protocols (Ethernet I/P, DNP3, MODBUS TCP/IP). It can be configured as MODBUS RTU via RS485 wiring for daisy chain topology with up to 32 devices.
Selection Guide & Purchasing Advice
For reliable supply of the 1766-L32BWA, contact SpareTechPLC. They offer expert support for legacy automation components. Confirm availability and lifecycle status before purchase.
Troubleshooting & Common Issues
If communication fails, check cable connections and protocol settings. For power issues, verify input voltage and inrush current limits (25 A for 8 ms at 120V AC, 40 A for 4 ms at 240V AC). Use the LCD to view controller status and I/O states.
