Product Overview

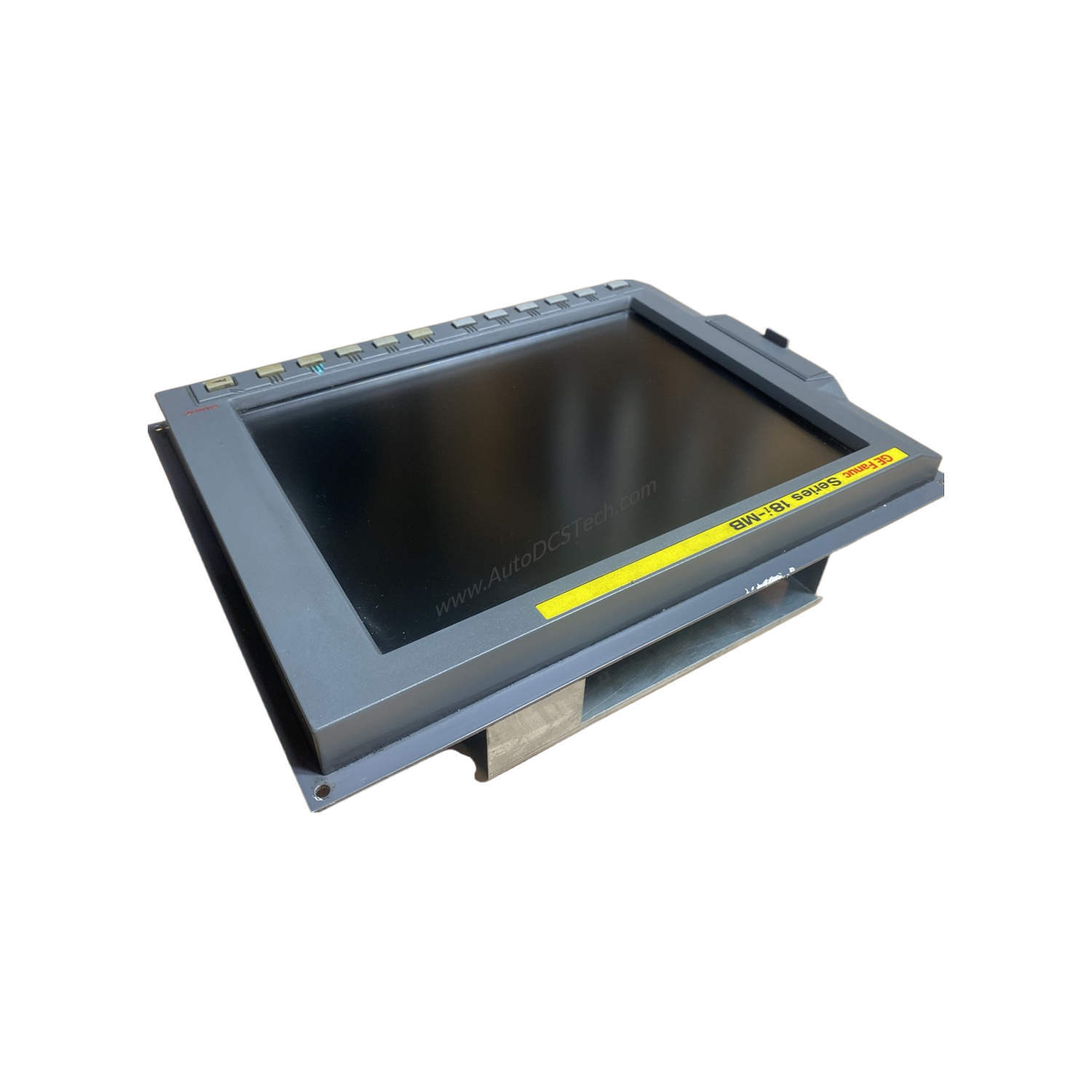

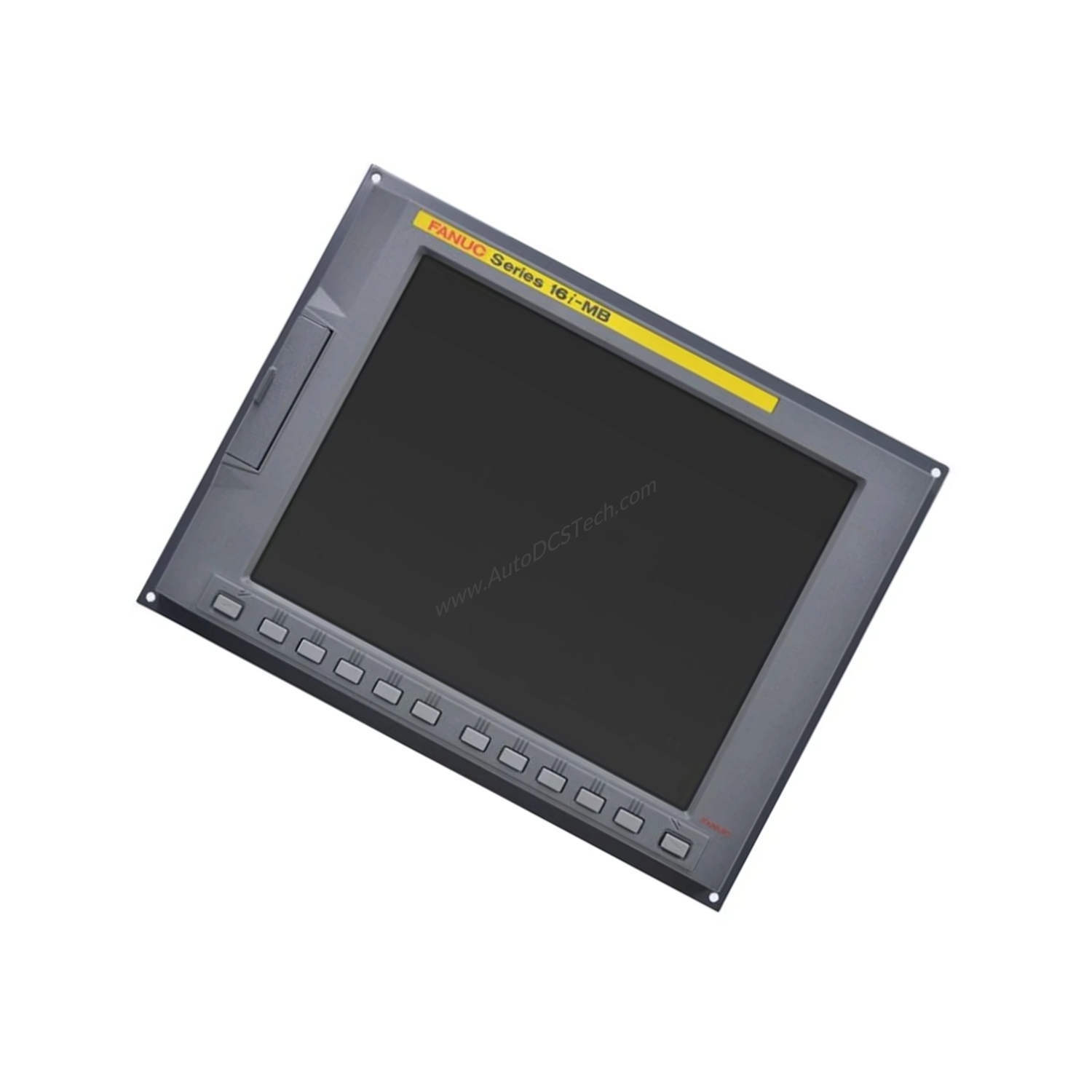

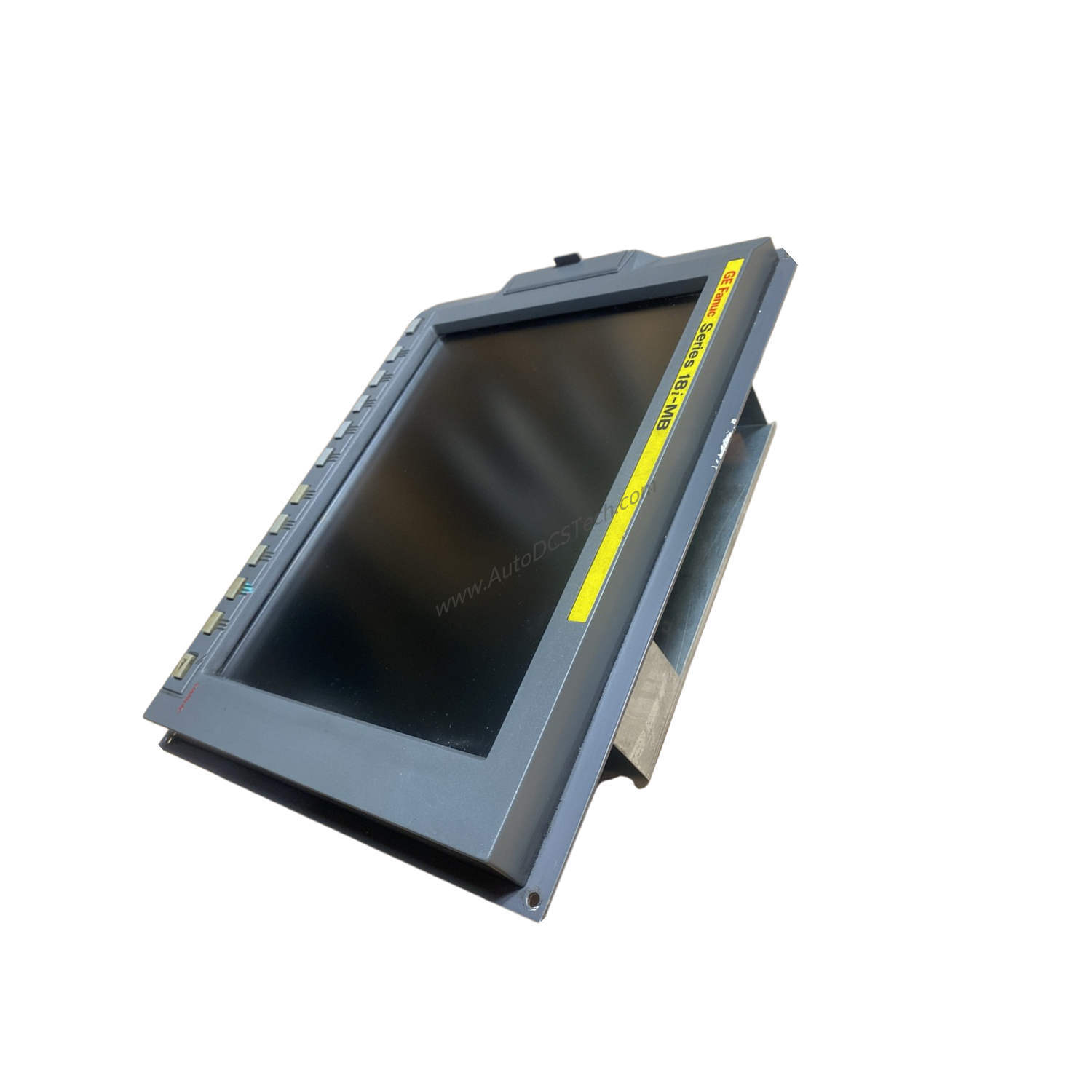

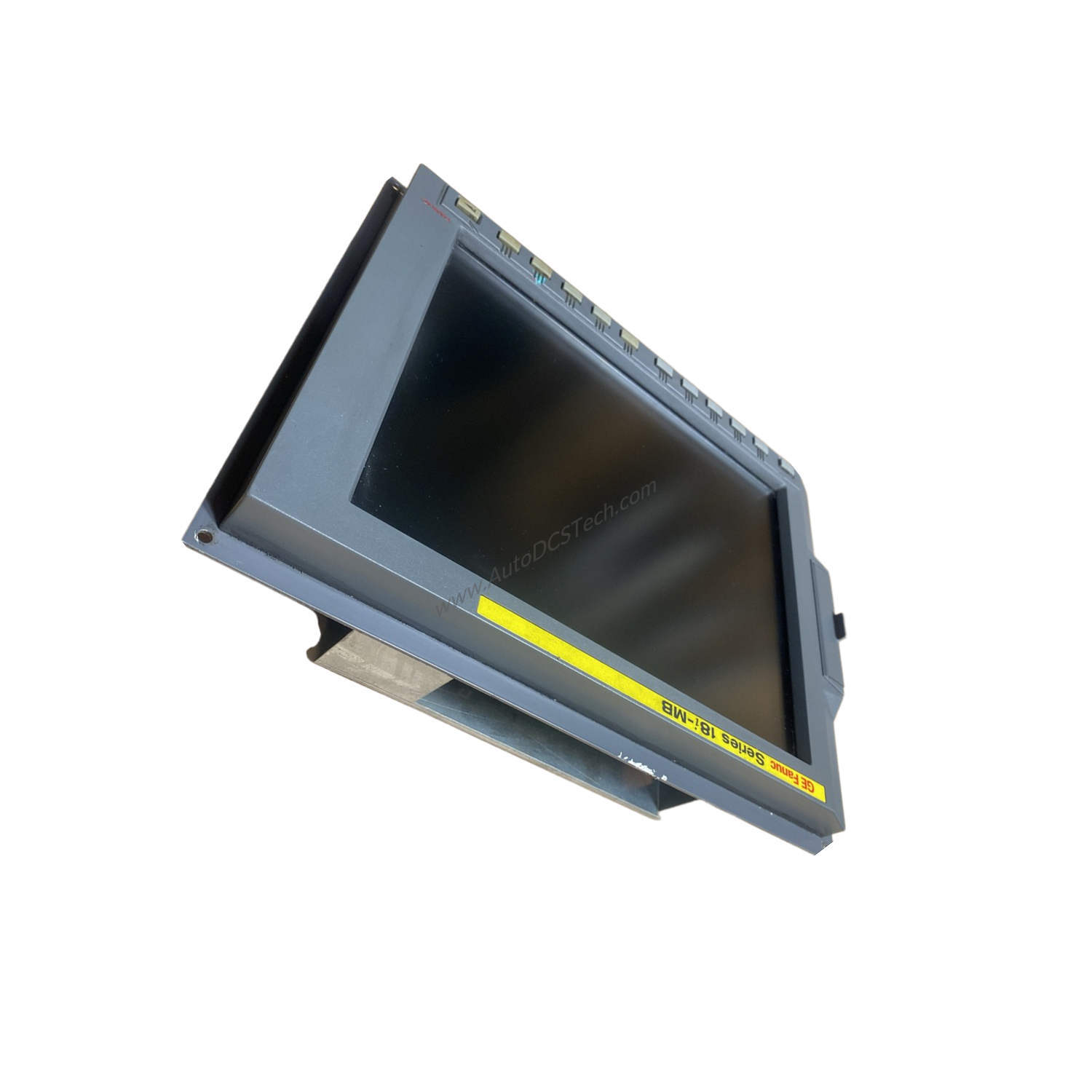

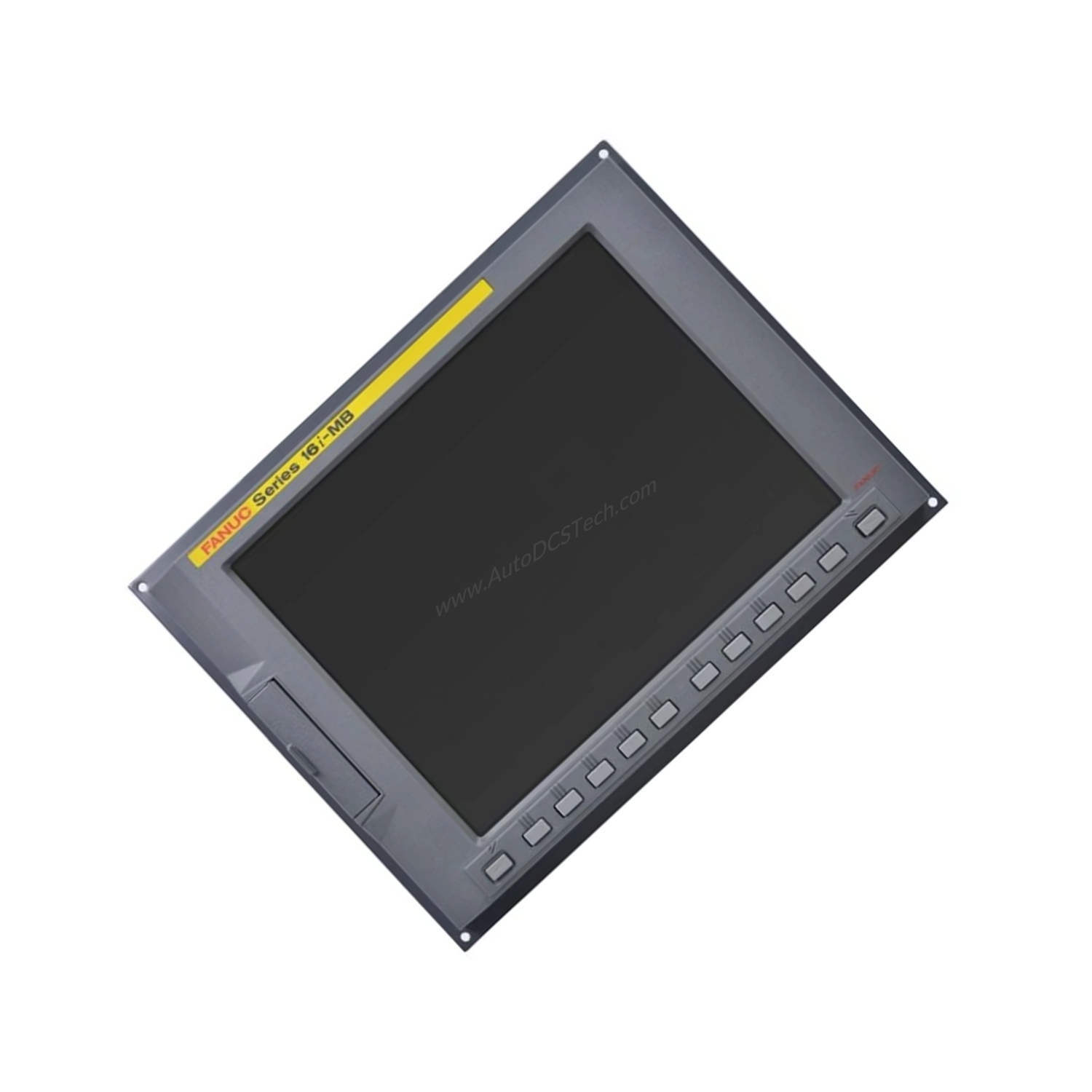

When industrial environments demand reliable visual feedback and intuitive operator interaction, the FANUC A02B-0281-C081 Display Monitor delivers a robust solution. This panel-mounted monitor combines a 10.4-inch color LCD screen with a capacitive touch panel, providing clear graphical representation and precise touch input for demanding automation tasks.
Part of the A02B product line, this monitor is engineered for seamless integration into control panels and operator stations. Its compact design and manageable weight of 4.75 lbs (2.15 kg) simplify installation while maintaining durability in factory floor conditions.
Technical Specifications
| Specification | Value |
|---------------|-------|
| Display Size | 10.4" LCD |
| Display Type | Color LCD with Graphic & Touch Panel |
| Touch Panel | Capacitive Touch Panel |
| Resolution | 800 x 600 pixels |
| Brightness | 300 cd/m² |
| Input Voltage | 100-240 VAC |
| Operating Temperature | 0°C to 50°C |
| Mounting Type | Panel Mount |
| Weight | 4.75 lbs (2.15 kg) |
The 800 x 600 pixel resolution ensures detailed visualization of process data, alarms, and control interfaces. With 300 cd/m² brightness, the display remains readable in varied lighting conditions, from dim control rooms to sunlit factory floors.
Industry Applications
The A02B-0281-C081 excels in several industrial scenarios:
- Machine Tool Control: Operators monitor spindle speeds, tool positions, and coolant levels through the intuitive touch interface. The capacitive touch panel responds accurately even when wearing gloves, a common requirement in machining environments.
- Production Line HMI: In assembly or packaging lines, this display provides real-time production metrics and alarm notifications. The wide input voltage range (100-240 VAC) allows deployment across different electrical infrastructures without additional power conditioning.
- Process Monitoring: For continuous processes like chemical mixing or material handling, the color LCD presents trend graphs and status indicators clearly. The 0°C to 50°C operating temperature range ensures reliable performance in unconditioned industrial spaces.
Installation & Setup Guidance
Panel mounting simplifies integration into existing enclosures. Follow these steps for proper installation:
- Cut a panel opening according to the manufacturer's cutout dimensions (not provided here, but standard for 10.4" displays).
- Insert the monitor from the front and secure it using the provided mounting brackets.
- Connect the power supply to a 100-240 VAC source. Verify voltage matches local mains before energizing.
- Connect the video signal cable from the control system to the monitor's input port.
- Power on the system and verify the display shows the expected graphics. Calibrate the touch panel if necessary using the built-in utility.
Maintenance & Reliability
To maximize service life, keep the display clean using a soft, dry cloth. Avoid abrasive cleaners or solvents that may damage the touch panel surface. Periodically inspect the mounting seal for dust ingress. The capacitive touch panel has no moving parts, reducing mechanical wear. Operate within the specified temperature range (0°C to 50°C) to prevent thermal stress. This low-maintenance design contributes to reduced downtime and lower total cost of ownership.
Compatibility & Integration
The A02B-0281-C081 integrates with FANUC CNC and robotic control systems via standard video interfaces. It is compatible with FANUC Series 0i, 30i, and 31i controllers, providing a unified operator experience. For non-FANUC systems, confirm video signal compatibility (typically VGA or DVI) before ordering. The panel mount design fits standard 19-inch rack or custom enclosures.
Selection Guide & Purchasing Advice
Before purchasing the A02B-0281-C081, verify:
- Panel cutout dimensions match your enclosure.
- Video interface is compatible with your controller.
- Ambient temperature stays within 0°C to 50°C.
- Power supply provides 100-240 VAC.
SpareTechPLC stocks this model and offers competitive pricing with fast shipping. Contact our team to confirm availability and lead times. We also provide technical support to ensure the monitor meets your application requirements.
Frequently Asked Questions
Q: What is the resolution of the FANUC A02B-0281-C081?
A: The resolution is 800 x 600 pixels, providing clear and detailed images for monitoring and control.
Q: What type of touch panel does this monitor use?
A: It uses a capacitive touch panel, which offers smooth and precise input, even with light finger touches.
Q: What is the operating temperature range?
A: The monitor operates reliably from 0°C to 50°C, suitable for many industrial environments.
Q: What input voltage does the A02B-0281-C081 require?
A: It accepts 100-240 VAC, making it versatile for different electrical systems worldwide.
Q: Is the monitor panel mount?
A: Yes, it is designed for panel mount installation, simplifying integration into control cabinets.
