Product Overview

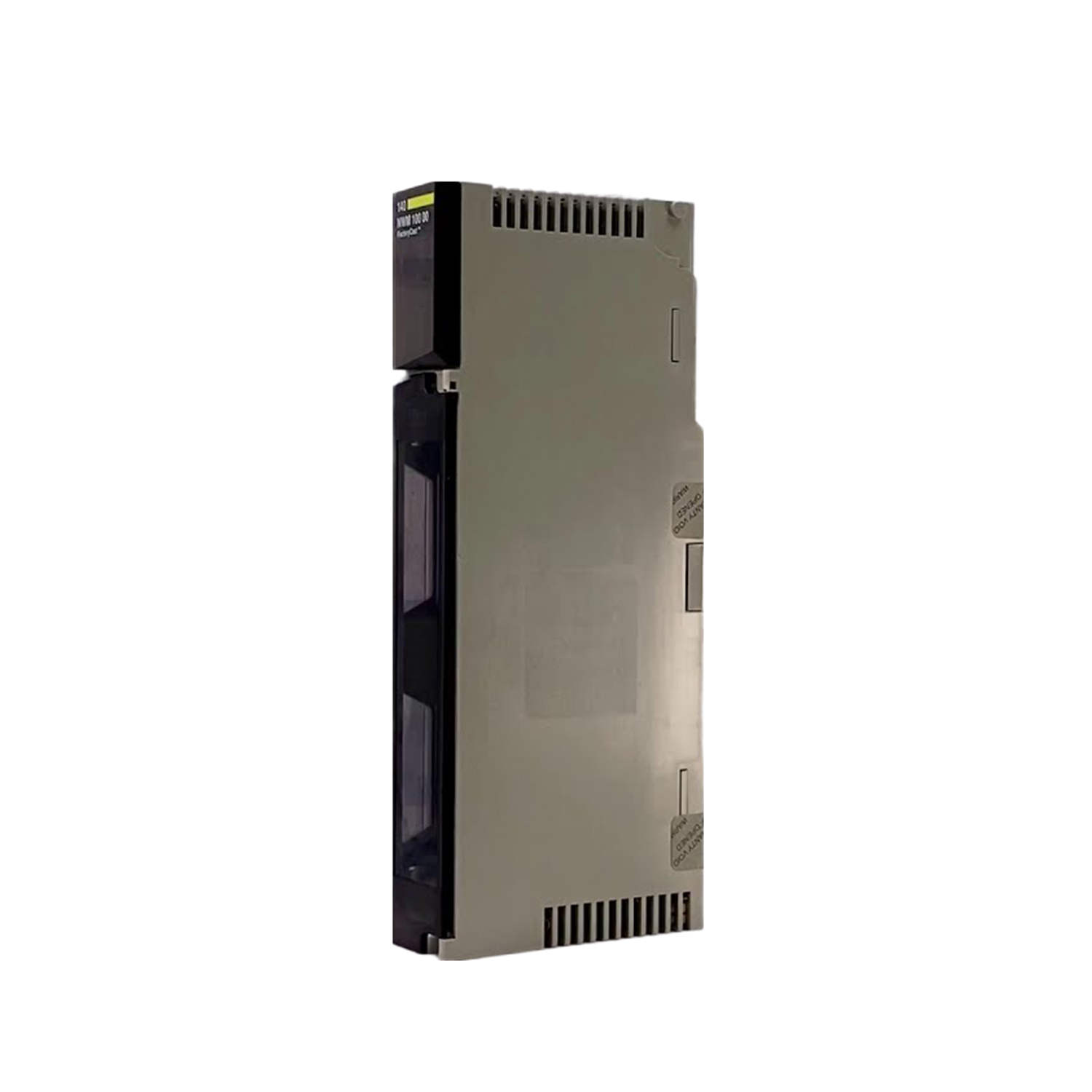

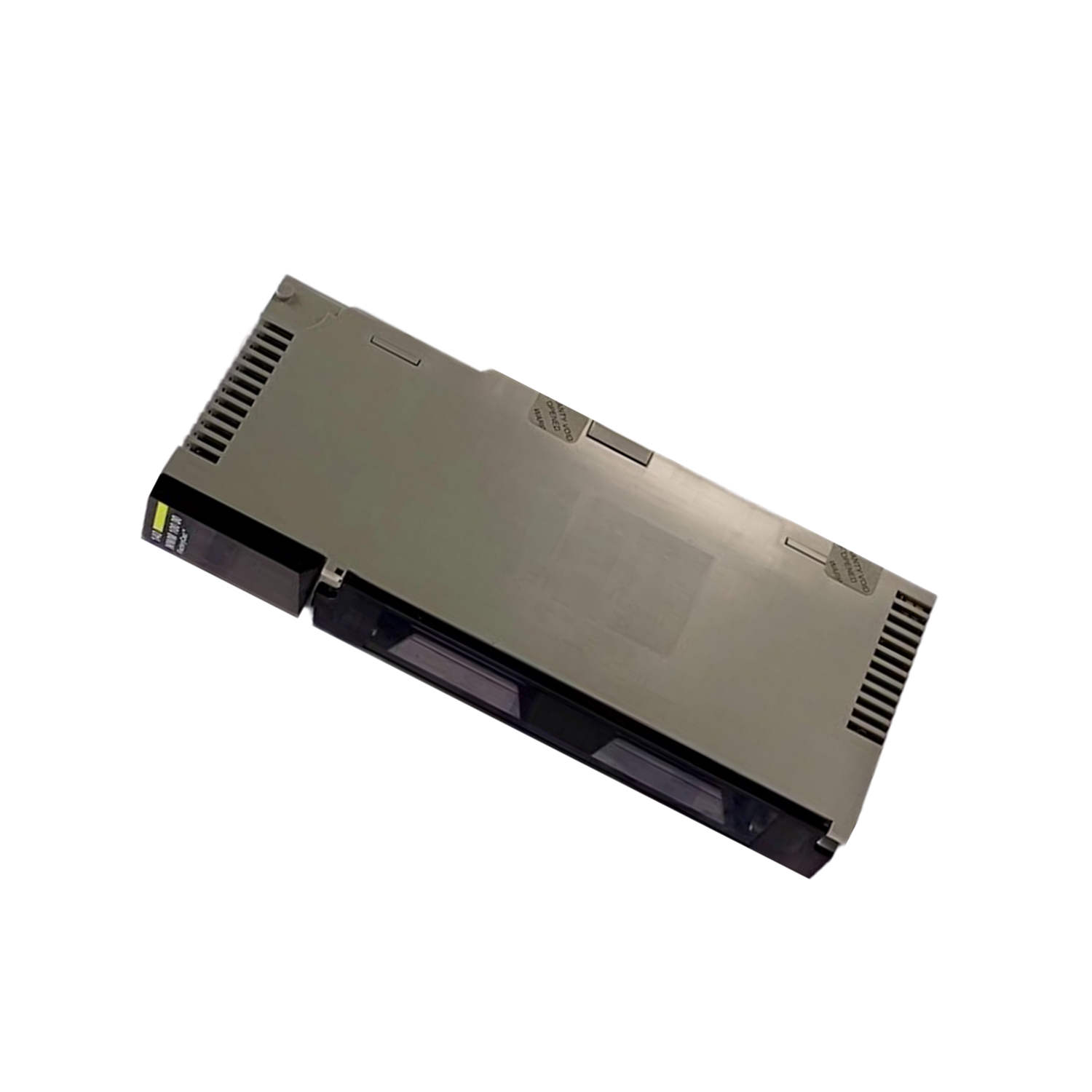

The 140NWM05000 is a DIO head-end adaptor from Schneider Electric's Modicon Quantum series. This module requires an IP address for network configuration and features a removable door for easy access during installation and maintenance. It serves as a critical interface for distributed I/O systems, enabling efficient data exchange in industrial environments.
Technical Specifications Breakdown
Key parameters for the 140NWM05000 are listed below for quick reference:
| Feature | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Product Type | DIO head-end adaptor |
| Product Line | Modicon Quantum |
| Part Number | 140NWM05000 |
| Interfaces | RS-232, 100 Base-Fx, 10/100 Base-T |
| Bus Current | 900 mA |
| Power Dissipation | 4.5 W |
| Serial Port Bus Current | 750 mA |
| Serial Port Power Dissipation | 3.8 W |
| Diagnostics LEDs | Yes |
| Operating Temperature | 0 to 40 degrees Celsius |
| Storage Temperature | 0 to 50 degrees Celsius |
| Maximum Operating Humidity | 80% RH, non-condensing |
| Maximum Storage Humidity | 80% RH, non-condensing |
Industry Applications
This adaptor is ideal for manufacturing plants requiring reliable remote I/O communication. Its RS-232 and Ethernet interfaces (100 Base-Fx, 10/100 Base-T) allow integration with legacy and modern control systems. In process industries, the 140NWM05000 supports data collection from sensors and actuators, improving operational efficiency. The removable door simplifies cabling changes in confined panels.
Installation & Setup Guidance
When installing the 140NWM05000, ensure the module is assigned a unique IP address for network communication. Use the RS-232 port for initial configuration or diagnostics. The removable door provides access to wiring terminals without removing the entire unit. Mount the adaptor in a clean, dry environment within the specified temperature range (0 to 40 degrees Celsius).
Maintenance & Reliability
Regularly inspect the diagnostics LEDs to verify operational status. Keep the unit within the specified humidity limits (80% RH, non-condensing) to prevent condensation damage. Firmware is upgradable, allowing for feature enhancements. Periodic checks of cable connections and environmental conditions help maintain reliability.
Compatibility & Integration
The 140NWM05000 integrates with Modicon Quantum systems using standard Ethernet and serial protocols. It supports 100 Base-Fx fiber optic and 10/100 Base-T copper networks, offering flexibility for different plant layouts. The module's bus current capacity (900 mA) ensures adequate power for connected I/O modules.
Selection Guide & Purchasing Advice
Evaluate your network topology and I/O requirements before selecting the 140NWM05000. For systems needing long-distance communication, choose the 100 Base-Fx interface. Contact SpareTechPLC for availability and lifecycle status. Please verify current lifecycle status and availability with SpareTechPLC before ordering.
Troubleshooting & Common Issues
If communication fails, check the IP address assignment and network cable integrity. Use the RS-232 port for direct diagnostics. Verify that the bus current draw does not exceed 900 mA. If diagnostics LEDs are off, ensure power supply is within specifications. For persistent issues, consult Schneider documentation.
