Overcoming Signal Integrity Challenges in Harsh Industrial Environments
When electrical noise, voltage fluctuations, and sensor compatibility issues threaten the reliability of your discrete input signals, the Schneider BMXDAI1604 digital input module provides a robust solution. Designed as part of the Modicon X80 family, this 16-channel isolated capacitive input module ensures accurate state detection even in electrically noisy environments, reducing false triggers and unscheduled downtime.
Product Overview

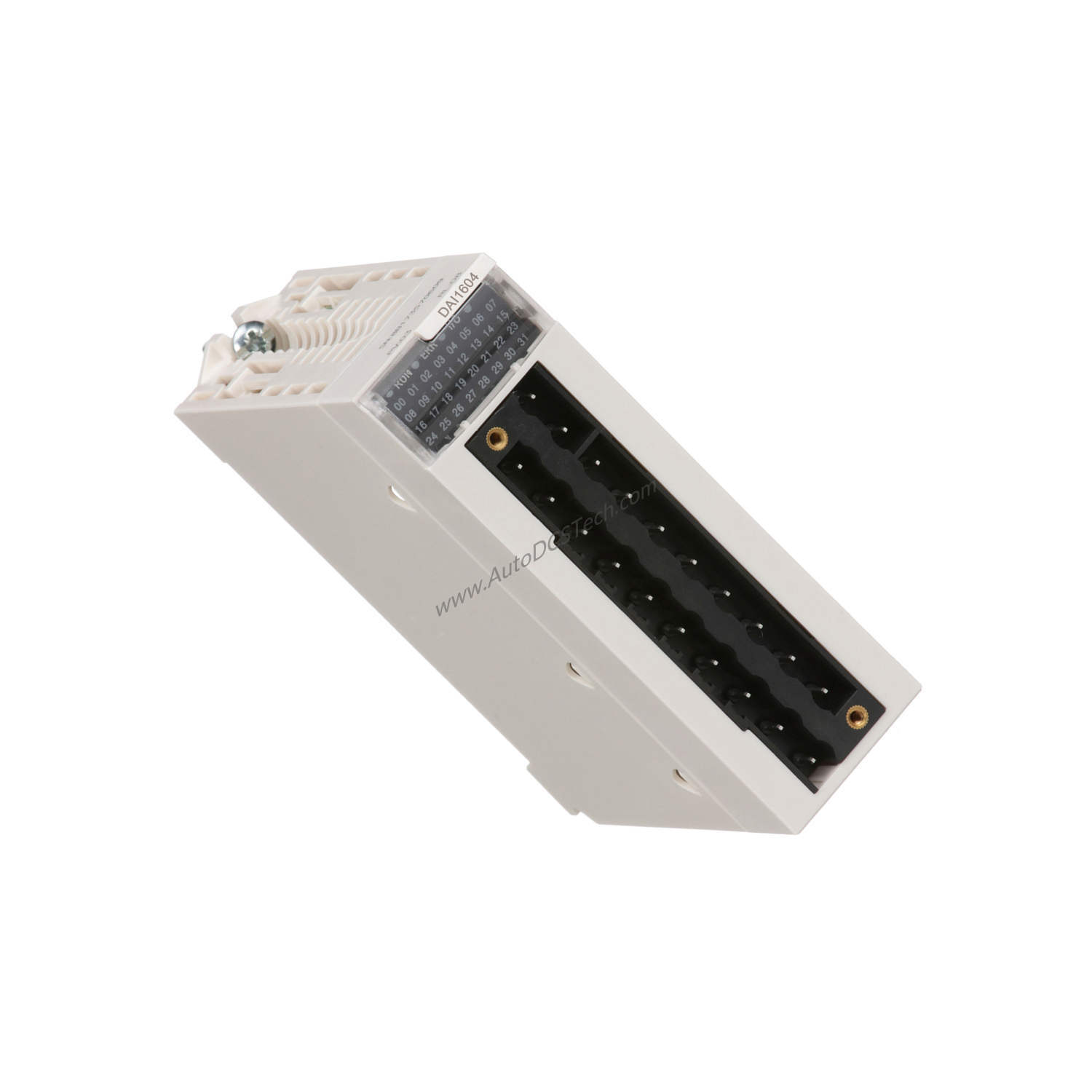

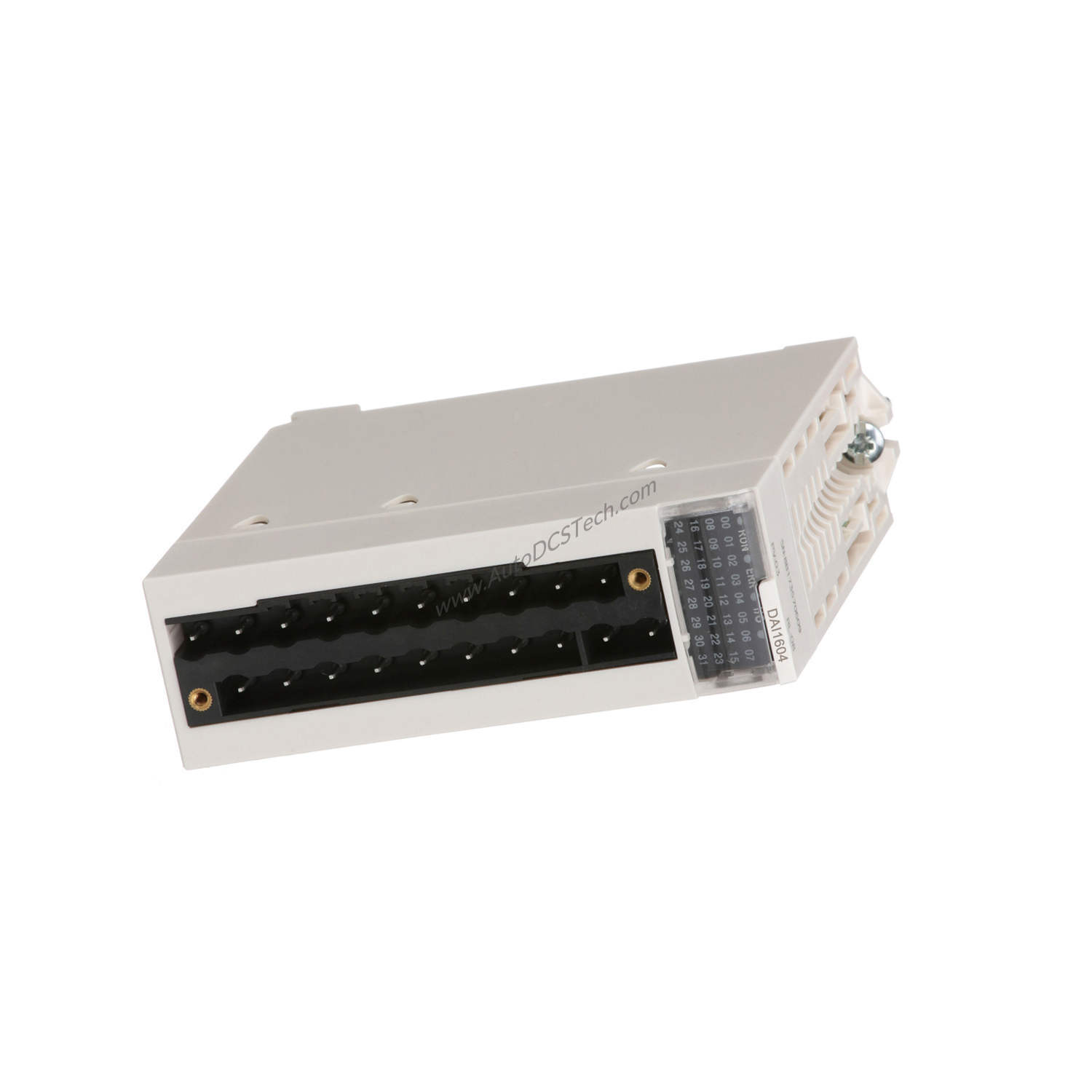

The BMXDAI1604 is a discrete input module from Schneider Electric, belonging to the Modicon X80 range of products. It functions as a digital input interface, processing 16 capacitive digital inputs with isolation per channel. The module operates on a 100-120 VAC supply voltage and supports both 2-wire and 3-wire proximity sensors, complying with IEC 60947-5-2 and IEC 61131-2 type 3 standards. Its IP20 protection rating makes it suitable for installation in clean, enclosed industrial cabinets.
Technical Specifications Breakdown
- Input Voltage and Current: The module accepts 100...120 V AC discrete input voltage with a guaranteed on-state current of ≥ 2.5 mA and off-state current of ≤ 1 mA. This ensures clear state discrimination.
- Input Impedance: With an input impedance of 13000 Ohm, the BMXDAI1604 minimizes loading on the sensor power supply.
- Response Times: AC activation response time is 10 ms, and deactivation response time is 20 ms, providing fast and predictable signal processing.
- Power Consumption: The module consumes ≤ 3.8 W, contributing to energy-efficient system design.
- Reliability: Mean time between failures (MTBF) is rated at 1,504,958 hours, indicating long-term dependable operation.
Industry Applications
- Manufacturing Assembly Lines: In automotive or electronics assembly, the BMXDAI1604 reliably reads presence sensors and limit switches, ensuring precise part positioning despite line voltage variations.
- Material Handling Systems: For conveyor belts and sorting systems, the module's capacitive inputs detect objects through non-metallic containers, maintaining throughput in dusty environments.
- Packaging Machinery: The module handles high-speed sensor signals from packaging machines, where consistent 50/60 Hz operation and fast response times are critical.
Installation & Setup Guidance
Mount the BMXDAI1604 on a standard DIN rail within a Modicon X80 rack. Ensure the ambient air temperature for operation stays between 32…140 °F (0…60 °C). Use an external fuse per group of channels (0.5 A fast blow) as specified. Connect 2-wire or 3-wire proximity sensors to the input terminals, observing polarity. The module's status LEDs (RUN, channel diagnostic, module error, I/O) provide immediate visual feedback during commissioning.
Maintenance & Reliability
With an MTBF of over 1.5 million hours, the BMXDAI1604 requires minimal routine maintenance. Periodically inspect the module for dust accumulation, as IP20 protection does not prevent dust ingress. Verify that the ambient relative humidity stays between 5…95 % at 131 °F (55 °C) without condensation. For installations above 2000 m, apply a derating factor as per the manufacturer's guidelines.
Compatibility & Integration
The BMXDAI1604 integrates seamlessly into Modicon X80 automation platforms. It is compatible with Schneider Electric programmable logic controllers (PLCs) that support the Modicon X80 backplane. The module's isolated inputs reduce ground loop issues when interfacing with sensors from different power sources.
Selection Guide & Purchasing Advice
Before purchasing, verify that your system's backplane supports the BMXDAI1604 and that the input voltage (100-120 VAC) matches your sensor power supply. The module weighs 0.254 lb (0.115 kg) and ships in a single-unit package. SpareTechPLC stocks this module and can assist with availability and lifecycle status. Please confirm current lifecycle status with SpareTechPLC before ordering.
Troubleshooting & Common Issues
- No Input Detection: Check the external fuse (0.5 A fast blow) per channel group. Verify sensor power supply is within 85...132 V.
- False Triggering: Ensure off-state current is ≤ 1 mA. If using 3-wire sensors, confirm compatibility with capacitive input type.
- Module Error LED On: Inspect for loose connections or voltage outside 100-120 VAC. The module error (ERR) LED indicates a fault.
Frequently Asked Questions
Q1: What is the input voltage range for the BMXDAI1604?
A: The discrete input voltage is 100...120 V AC.
Q2: Can the BMXDAI1604 work with 3-wire proximity sensors?
A: Yes, it supports both 2-wire and 3-wire proximity sensors per IEC 60947-5-2.
Q3: What is the response time for deactivation?
A: The AC deactivation response time is 20 ms.
Q4: What certifications does the BMXDAI1604 hold?
A: It is certified CE, CSA, UL, RCM, and EAC.
Q5: What is the power consumption of this module?
A: Power dissipation is ≤ 3.8 W.
