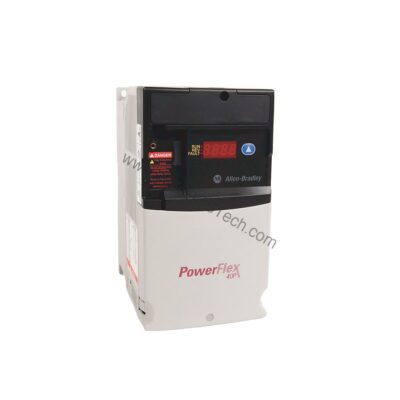

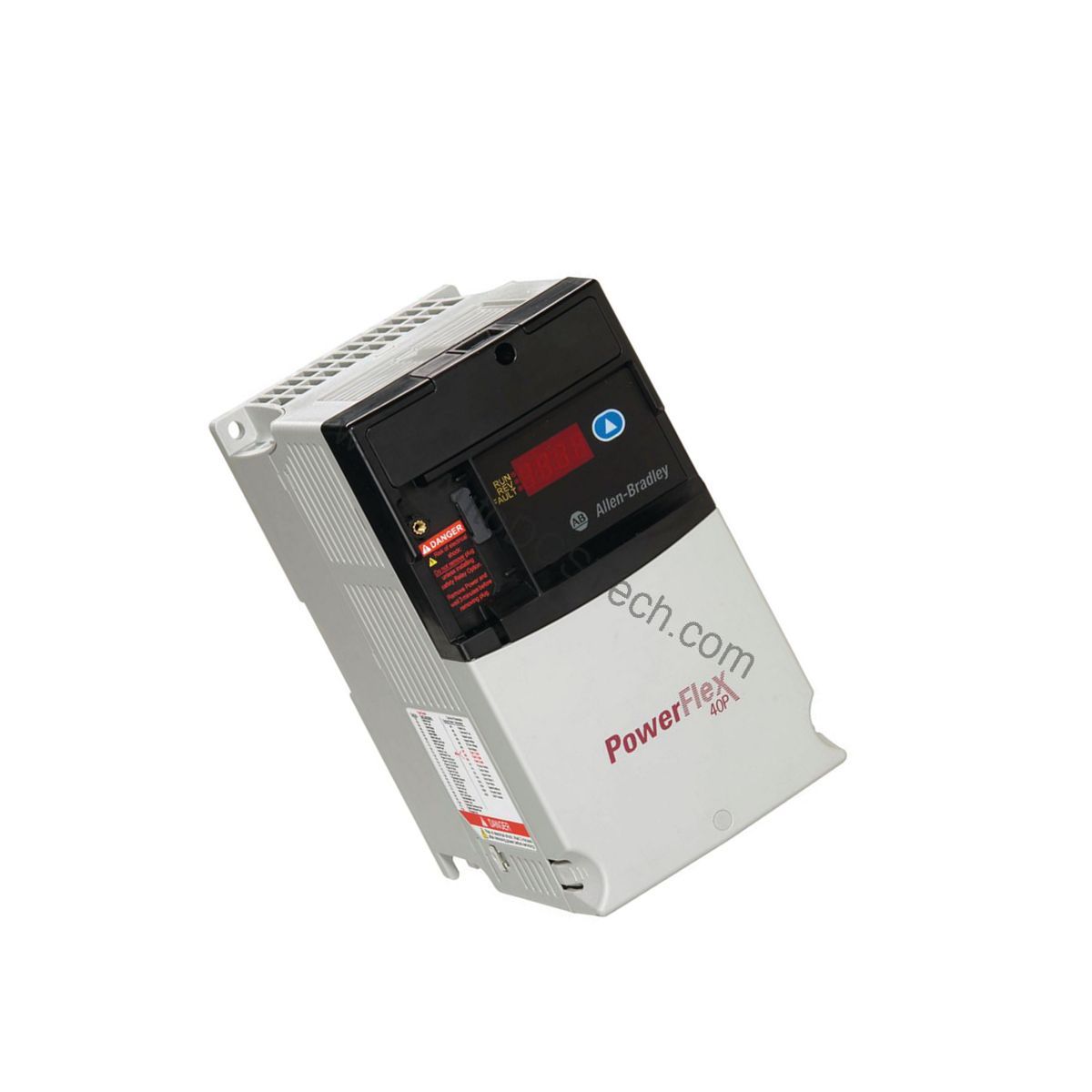

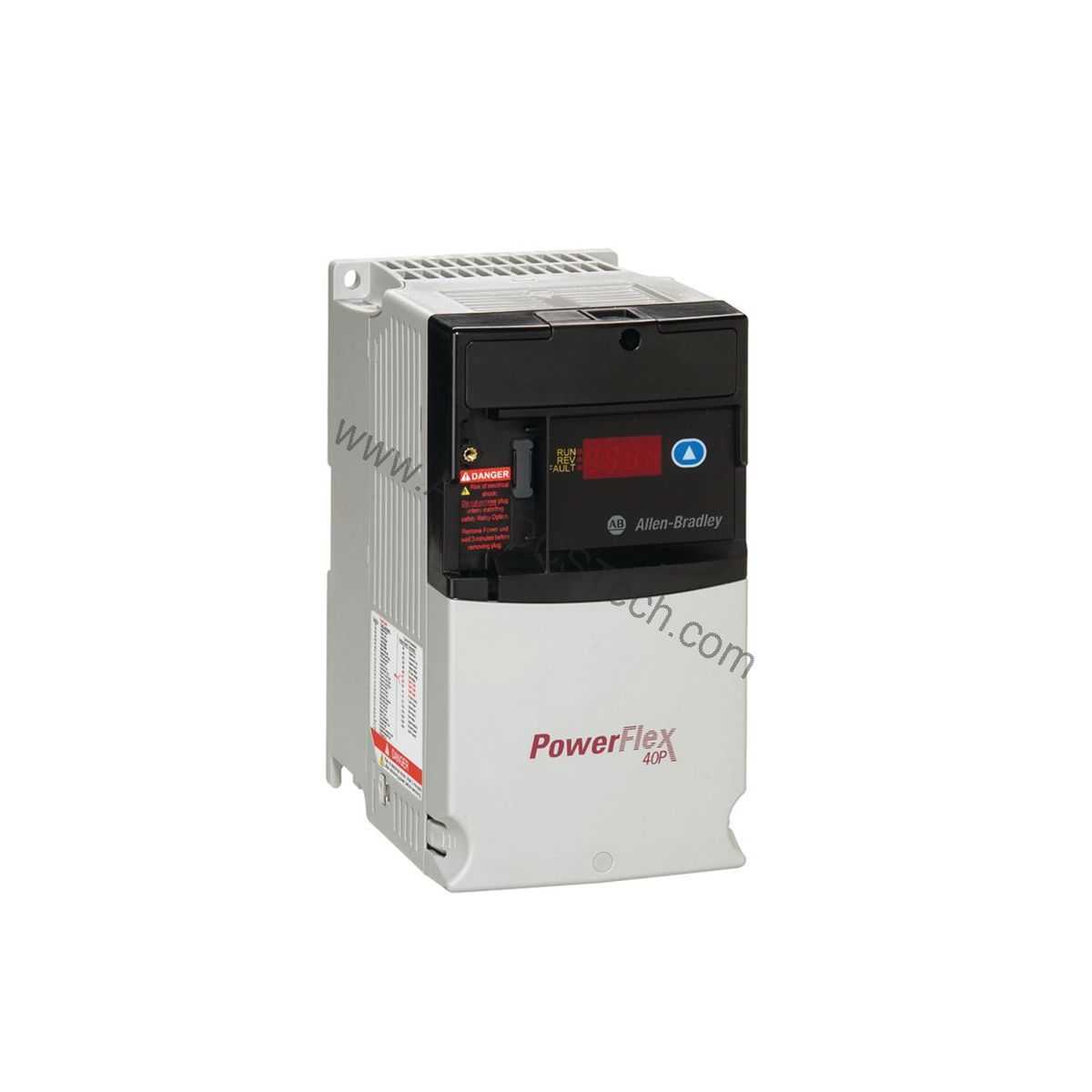

Allen-Bradley 22D-B024H204 PowerFlex 40P Drive, 7.5 HP

Product Overview

The Allen-Bradley 22D-B024H204 is an adjustable frequency drive (AFD) from the PowerFlex 40P series, designed to deliver exceptional motor control in industrial environments. As a standard plate-type drive with a Size C frame, it provides a cost-effective solution for applications requiring closed-loop control and the category 3 Safe-off feature. Its compact, open-type IP20 enclosure allows for flexible mounting options within control panels.

Technical Specifications Breakdown

Key parameters for the 22D-B024H204 are listed below for quick reference:

Industry Applications

This drive is well-suited for a variety of industrial applications that demand precise speed control and reliability. Its sensorless vector control and volt-per-hertz modes make it versatile for different motor types. Typical uses include:

• Conveyor Systems: The 22D-B024H204's 150% overload capacity for 60 seconds ensures it can handle sudden load changes, while its programmable acceleration and deceleration times (0 to 600 seconds) allow for smooth material handling.
• Pumps and Fans: With a displacement power factor of 0.98 across the entire speed range, this drive helps reduce energy costs. Its built-in PID control (implied by the closed-loop capability) can maintain consistent pressure or flow.
• Packaging Machinery: The drive's precise speed regulation (±1% of base speed across an 80:1 speed range) ensures consistent product quality. The Safe-off feature enhances operator safety during maintenance.

Installation & Setup Guidance

Proper installation is critical for optimal performance and longevity. The 22D-B024H204 is designed for plate mounting, and its IP20 enclosure requires installation within a suitable cabinet to protect against dust and moisture. Consider the following guidelines:

• Mounting: Ensure adequate clearance around the drive for airflow. The operating temperature range is 14 to 122 degrees Fahrenheit, so proper ventilation is essential.
• Wiring: Follow local electrical codes and the manufacturer's manual. Use the correct wire sizes for 24.0 A and 240V AC. The input tolerance is -10% to +10% at 48 to 63 Hertz.
• Grounding: Proper grounding is essential for safety and to reduce electromagnetic interference. The drive includes a removable Metal Oxide Varistor for ground fault and phase-to-phase protection.
• Configuration: Program the drive using the integral LCD and reset buttons or via the RS-485 serial communication port. Set the motor parameters, acceleration/deceleration times, and stop modes (Ramp, Coast, DC-Brake, Ramp-to-Stop) according to your application.

Maintenance & Reliability

Regular maintenance ensures reliable operation and extends the life of the drive. The 22D-B024H204 is built to withstand harsh conditions, but periodic checks are recommended:

• Inspection: Inspect the drive for dust accumulation, loose connections, and signs of overheating. The drive can operate at up to 95% non-condensing relative humidity, but keep the enclosure clean.
• Environmental Considerations: The drive can withstand a 15G operational shock for 11ms and 1G peak vibration at 5 to 2000 Hertz. It is rated for installation at a maximum altitude of 1000 meters without de-rating.
• Overload Protection: The drive provides Class 10 Electronic Motor Overload Protection, with a microprocessor-monitored overcurrent trip at 200% of rated output. This protects the motor from damage.

The Evolution of Motor Control: Why Precision Matters

Industrial automation has evolved from simple on/off controls to sophisticated variable speed systems. Today, precise motor control is not a luxury but a necessity for optimizing energy consumption, reducing mechanical stress, and improving product quality. The Allen-Bradley PowerFlex 40P series represents a significant step in this evolution, offering a blend of performance and reliability for demanding applications. This article focuses on the 22D-B024H204, a model that stands out for its robust feature set and compact design.

Compatibility & Integration

The 22D-B024H204 offers multiple integration options to fit into existing automation systems:

• RS-485 Communication: The integral RS-485 serial communication port allows for multi-drop network configuration and PC programming. This enables remote monitoring and control.
• I/O Capabilities: The drive features 7 digital inputs (2 dedicated and 5 programmable), 2 analog inputs (10-bit voltage or current), 1 programmable Form C relay output, and 1 non-isolated analog output. This flexibility allows for easy integration with PLCs and other controllers.
• Control Modes: Standard volt-per-hertz and sensorless vector control modes provide compatibility with a wide range of AC motors.

Selection Guide & Purchasing Advice

When selecting a drive for your application, consider the following factors:

• Power Requirements: The 22D-B024H204 is rated for 7.5 HP (5.5 kW) and 24.0 A output. Ensure this matches your motor's requirements.
• Enclosure Type: The IP20 plate-mount design is suitable for cabinet installation. If you need a standalone enclosure, consider other options.
• Filter Options: This model comes without a CE-compliant filter. If your application requires compliance with EMC directives, you may need to add an external filter.

At AutoDCSTech, we understand the importance of finding the right part. We offer genuine Allen-Bradley products and can help you verify compatibility. Contact our team for availability and lifecycle status before ordering.

Troubleshooting & Common Issues

Even reliable drives can encounter issues. Here are some common troubleshooting steps:

• Drive Does Not Start: Check the input power supply (240V AC, 3-phase) and ensure the enable signal is present. Verify that all safety circuits are closed.
• Overcurrent Trip: If the drive trips on overcurrent, check for short circuits in the motor wiring or mechanical overload. The drive can handle 200% of rated output for 3 seconds, but sustained overloads will cause a trip.
• Bus Overvoltage/Undervoltage: The drive has bus overvoltage and undervoltage trips at 405 and 210 Volts DC, respectively. These can be caused by power supply fluctuations or regenerative loads. Verify the input voltage is within tolerance.
• Communication Issues: If using the RS-485 port, check the wiring and baud rate settings. Ensure the drive address is correct for multi-drop networks.

For persistent issues, consult the user manual or contact AutoDCSTech for technical support.
