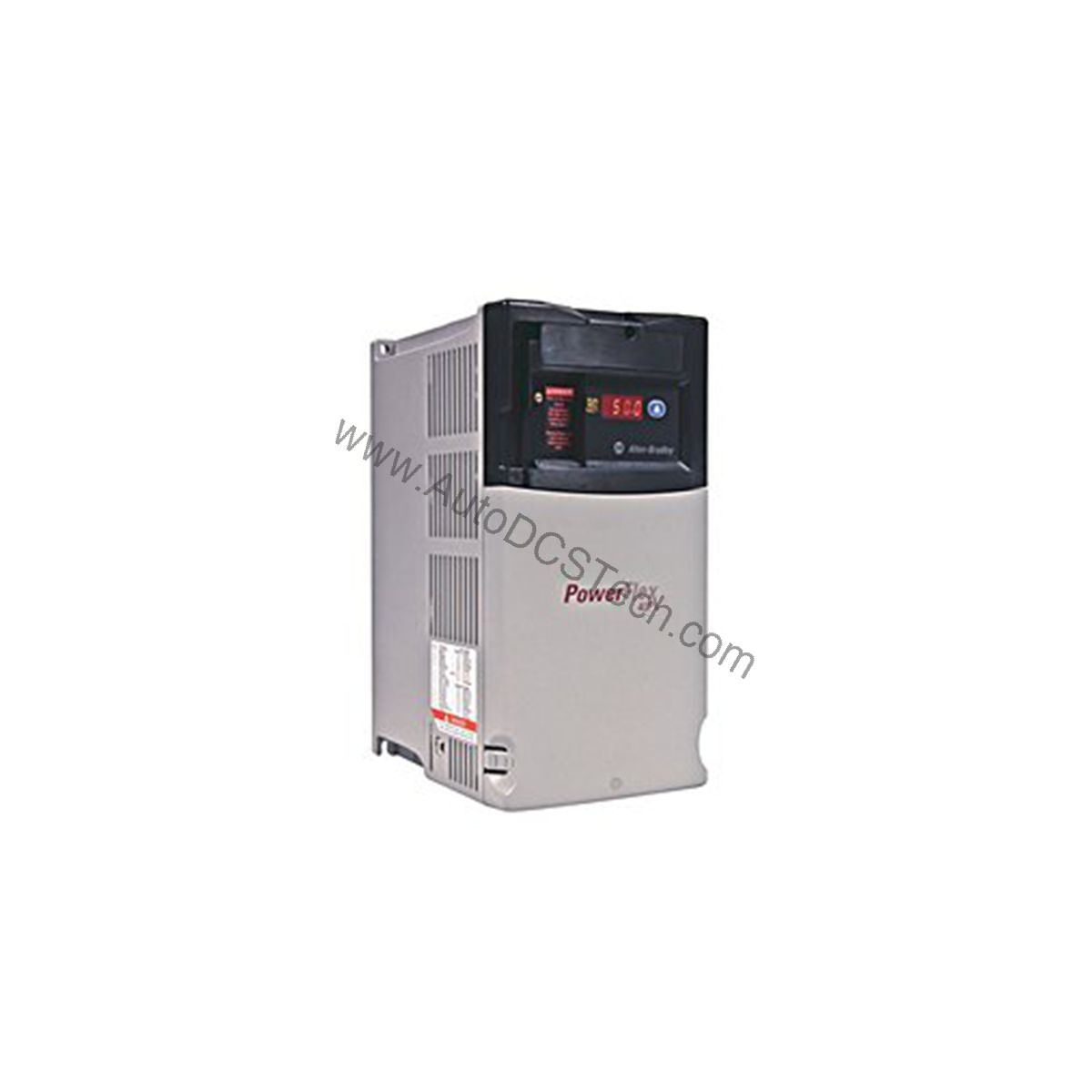

Allen-Bradley 22D-B2P3F104 PowerFlex 40P AC Drive, 0.5 HP, 240VAC

Technical Specifications Breakdown

Key parameters for the 22D-B2P3F104 are listed below for quick reference:

This drive is well-suited for applications that demand flexibility and precise speed regulation. Common uses include packaging machinery, smart conveyors, diverters, and fiber-spinning machines. The 22D-B2P3F104 provides closed-loop control and an option for Category 3 Safe Torque-Off, making it a versatile component for automated lines. Its compact size allows for efficient panel layout, reducing overall equipment footprint.

Installation & Setup Guidance

When installing this drive, ensure the input voltage matches the 240 Volts AC rating. The three-phase input should be connected per the wiring diagram provided in the user manual. The flange mount (IP20) enclosure allows for panel mounting, which helps dissipate heat effectively. For programming, you can use a PC interface or remote Human Interface Modules (HIMs). The integral display and reset button simplify local parameter changes and fault resets.

Maintenance & Reliability

Regular inspection of the drive's cooling fan and air filters is recommended to prevent overheating. The IP20 enclosure protects against solid objects larger than 12 mm, but it is not dust-tight. Keep the surrounding area clean and ensure adequate ventilation. Periodically check all electrical connections for tightness to maintain reliable operation.

The 22D-B2P3F104: A Compact PowerFlex 40P Drive for Precise Motor Control

This adjustable frequency drive is engineered to manage how a motor starts, stops, and changes speed during operation. Its compact design and flexible mounting options make it a practical choice for modern machinery.

Compatibility & Integration

This drive uses CIP (RS-485) communication, enabling integration with various controllers. The serial converter allows connectivity to any controller with a DFI port. This makes it easy to incorporate into existing automation architectures. The optional IP30 (NEMA 1) conduit box can be added to the standard IP20 enclosure to increase environmental protection.

Selection Guide & Purchasing Advice

When selecting a drive for your application, consider the horsepower, input voltage, and enclosure type. The 22D-B2P3F104 is a solid choice for 0.5 HP motors in a 240VAC three-phase system. At AutoDCSTech, we stock this model and can help you verify it meets your requirements. Contact us for current availability and lifecycle status before ordering.

Troubleshooting & Common Issues

If the drive does not start, check the input power and control wiring. The integral display will show error codes that can be referenced in the manual. For speed regulation issues, ensure that auto boost and slip compensation features are correctly configured. These features automatically adjust to maintain optimal performance under varying loads.
