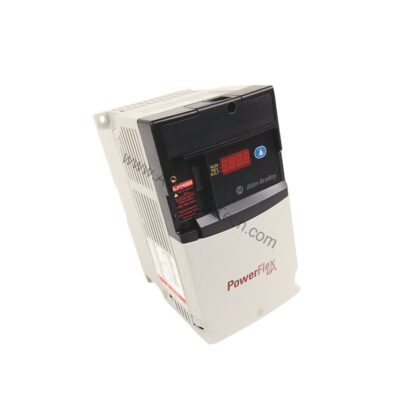

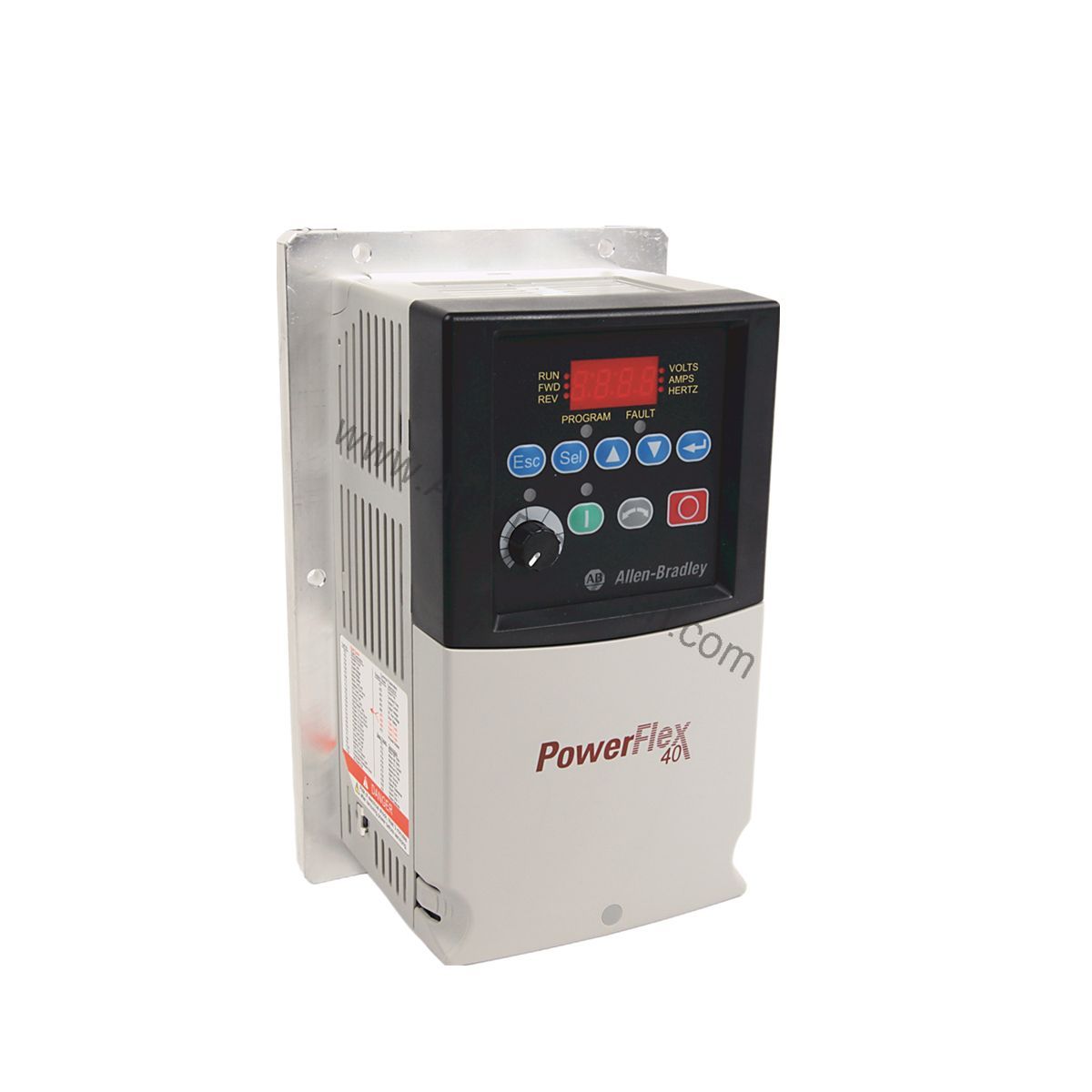

Allen-Bradley 22D-B017F104 PowerFlex 40P Drive 5 HP

PowerFlex 40P Adjustable Frequency Drive Overview

Industrial operations often face the challenge of precisely controlling motor speed and torque while maintaining efficiency. The Allen-Bradley 22D-B017F104 from the PowerFlex 40P family addresses this need with adjustable frequency technology. This drive enables seamless integration into Allen-Bradley PLC systems, allowing for fine-tuned motor control. Its robust design and flexible control methods make it a reliable choice for various applications.

Technical Specifications Breakdown

Key parameters for the 22D-B017F104 are listed below for quick reference:

Industry Applications

This drive is well-suited for applications requiring variable speed and torque control. In conveyor systems, it ensures smooth starts and stops, reducing mechanical stress. For pump and fan applications, it optimizes energy consumption by adjusting motor speed to match demand. Its compact IP20 flange-mount design allows for easy integration into control panels.

Installation and Setup Guidance

Proper installation is crucial for optimal performance. Mount the drive in a clean, dry environment with adequate ventilation. Ensure the operating temperature stays between -10 to 50 degrees Celsius and relative humidity remains at 0 to 95% non-condensing. The drive's dimensions are 180 x 100 x 144.2 millimeters, so plan your panel layout accordingly. Use proper wiring practices and follow local electrical codes. The HMI supports parameter display and fault reset, simplifying configuration. For detailed wiring and parameter settings, refer to the user manual.

Maintenance and Reliability

Regular inspection helps maintain reliability. Periodically check for dust accumulation on the heatsink and ensure cooling fans operate correctly. Verify that all connections remain tight and free from corrosion. The drive includes integrated Class 10 motor overload protection per NEC article 430 and motor over-temperature protection per NEC article 430.125. These features help prevent motor damage, reducing downtime. With proper care, the drive provides long service life.

Control Methods and Performance

The drive supports Sinusoidal Pulse Width Modulation, Volts per Hertz, and Sensorless Vector Control. This flexibility lets you match the control strategy to your application's needs. Output frequency is configurable from 0 to 500 Hertz, accommodating a wide range of motor speeds. The drive also provides multiple stop modes and four acceleration/deceleration times, giving you precise control over motor ramping. For overload conditions, it sustains 150% overload for up to 1 minute and 200% for up to 3 seconds, ensuring reliable operation under transient loads.

Compatibility and Integration

The 22D-B017F104 is designed to work with Allen-Bradley PLC systems. It supports multiple control methods, making it compatible with various motor types. The drive's adjustable frequency output allows for precise speed and torque control. Its open NEMA Type flange-mount enclosure (IP20) is suitable for indoor installations. The drive does not include an integrated EMC filter, so you may need external filtering in sensitive environments. Bus over-voltage and under-voltage trip ratings are 405 Volts DC and 210 Volts DC, respectively.

Selection Guide and Purchasing Advice

When selecting a drive, verify your motor's voltage, current, and horsepower requirements. The 22D-B017F104 is a standard version drive without a CE-compliant filter. If your application demands EMC compliance, consider an external filter. The drive dissipates 235 Watts of heat, so ensure your enclosure has adequate cooling. For availability and lifecycle status, contact AutoDCSTech. Our team can help you find the right drive for your application. We offer genuine Allen-Bradley products and expert support.
