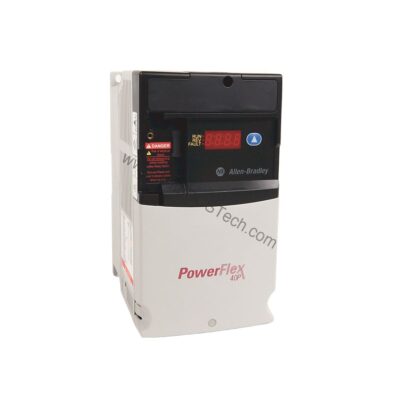

Allen-Bradley 22D-B033N104 PowerFlex 40P Drive, 33A, 10HP

Technical Specifications Breakdown

Key parameters for the 22D-B033N104 are listed below for quick reference:

Installation and Setup Guidance

When installing the 22D-B033N104, follow the user manual for proper wiring and configuration. Ensure the enclosure is mounted on a flat, non-flammable surface. The drive operates in temperatures from -10 to 50 degrees Celsius (14 to 122 degrees Fahrenheit). Keep the ambient temperature within this range to avoid derating.

Because this unit has no CE-compliant filter, consider external filtering if your installation requires electromagnetic compatibility. The drive includes a Display/Fault reset HMI, which simplifies local monitoring and fault clearing.

Maintenance and Reliability

The 22D-B033N104 is built to withstand harsh industrial environments, but it still needs regular inspection. Check for dust buildup on the heatsink and ensure proper airflow. The drive can handle up to 95% humidity (non-condensing) and vibration up to 1G peak at 5 to 2000 Hertz. For shock, it withstands 15G peak for 11 milliseconds.

Periodically verify that all connections are tight and that the enclosure remains properly sealed. If the drive trips on overcurrent or overload, inspect the motor and wiring before resetting.

Solving Speed Control Challenges in Industrial Automation

The PowerFlex 40P drive addresses this with closed-loop control and encoder feedback functionality. This allows the drive to correct speed deviations in real time, which is critical for applications like diverters and smart conveyors where timing is everything.

Another common issue is motor overheating due to improper drive settings. The Autotune feature simplifies commissioning by automatically measuring and setting the drive parameters to match your motor. This reduces the risk of misconfiguration and extends motor life.

Where to Use the 22D-B033N104 Drive

The 22D-B033N104 is designed for indoor, non-hazardous environments. Its IP20 enclosure is not waterproof, so it should be installed in a clean, dry control cabinet. Typical applications include:

• Smart Conveyors: The drive's precise speed control ensures smooth product flow and reduces jams.
• Industrial Machines: From packaging to material handling, the drive's torque capability handles varying loads.
• Diverters: Quick speed changes are handled reliably, improving throughput.

Compatibility and Integration

This drive is part of the PowerFlex 40P series, known for its flexibility and simple functions. It works with standard three-phase induction motors. The closed-loop capability requires an encoder feedback module (not included). For applications requiring speed regulation, this is a key feature.

The drive's Sensorless Vector Control provides speed regulation even without an encoder, making it a cost-effective choice for many installations.

Purchasing Advice from AutoDCSTech

At AutoDCSTech, we stock the Allen-Bradley 22D-B033N104 and other PowerFlex drives. Before ordering, verify the current lifecycle status and availability with our team. We can help you confirm that this model fits your application and provide guidance on accessories like encoders or filters.

Our team understands industrial automation and can assist with replacement or upgrade decisions. Contact us for a quote or technical support.
