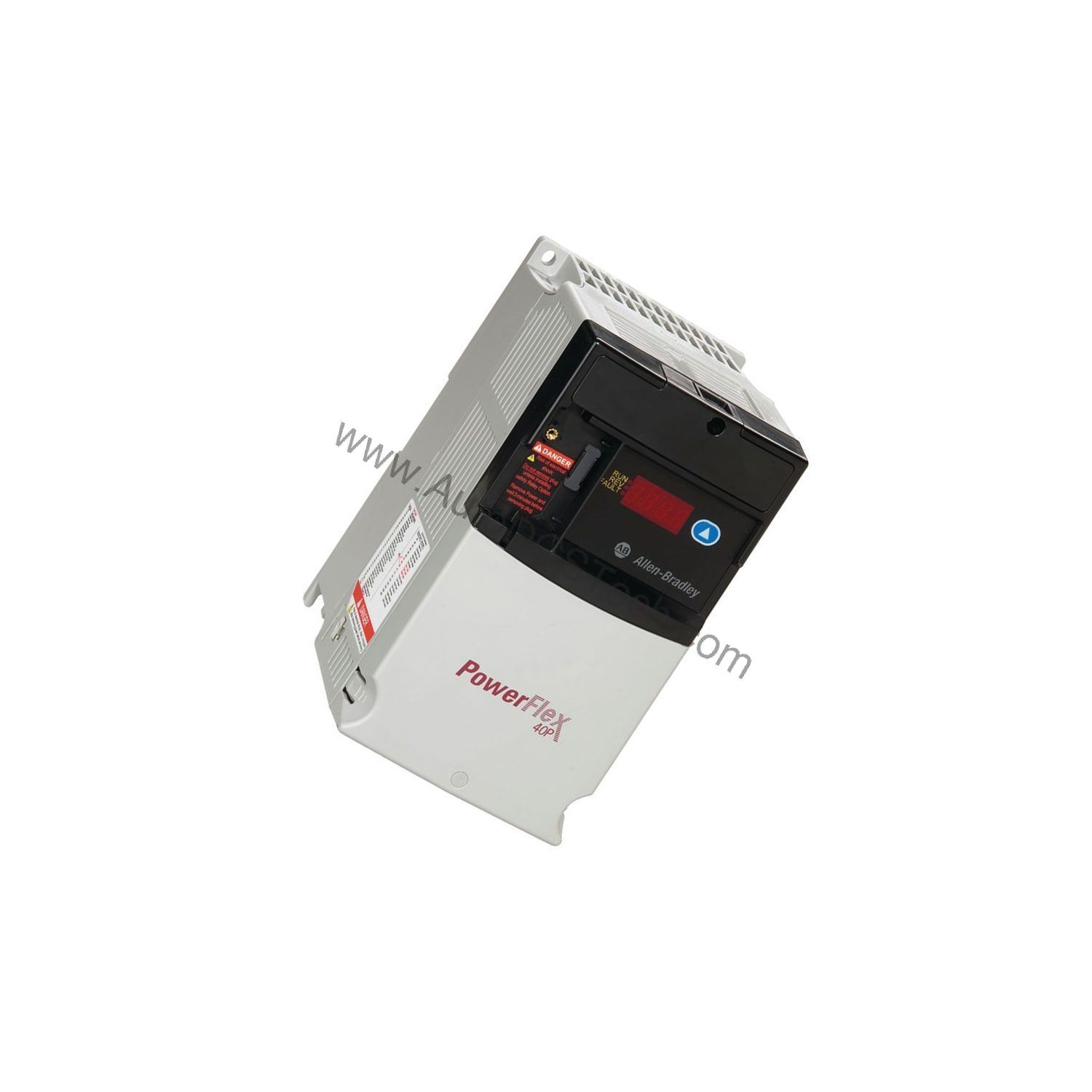

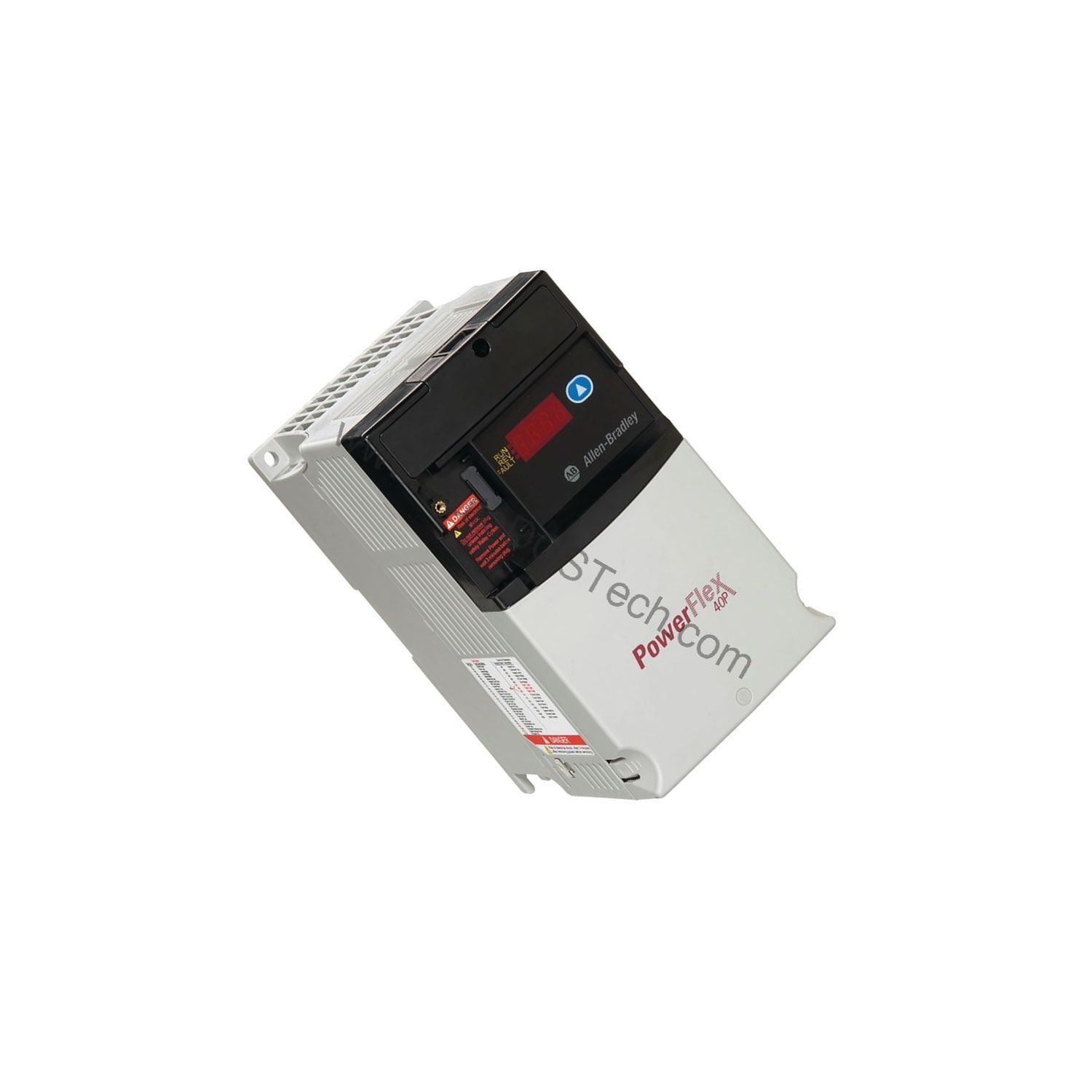

Allen-Bradley 22D-D2P3H204 PowerFlex 40P AC Drive, 480V, 2.3A

Technical Specifications Breakdown

Key parameters for the 22D-D2P3H204 are listed below for quick reference:

Built for Real-World Applications

The 22D-D2P3H204 is engineered for primary position control and speed control in applications such as diverters, packaging machines, smart conveyor belts, and fiber-spinning machines. Its closed-loop control capability and optional Category 3 Safe Torque-off make it a safe and reliable choice for machinery that demands precise stopping and holding. The drive’s V/Hz control, process PID, and sensorless vector control modes allow it to adapt to varying load conditions without excessive tuning.

Installation and Setup Guidance

From a maintenance engineer’s perspective, the 22D-D2P3H204 is straightforward to install. The open NEMA Type – Plate Mount (IP20) enclosure is designed for panel mounting, so ensure the cabinet provides adequate cooling and protection from dust and moisture. The drive features an internal RS-485 port and a Common Industrial Protocol (CIP) communication port, simplifying integration with existing control networks. Use the 4-digit display and scroll/reset button for local programming, or connect the optional virtual Human Interface Module for PC-based configuration.

Maintenance and Reliability

To keep the drive running reliably, follow a periodic inspection routine. Check for dust buildup on the heatsink and verify that ambient temperature stays within the rated range. Because the drive has no CE-compliant filter, consider external filtering if your facility experiences electrical noise. The drive’s flying start and ramp regulation features help protect the motor during start-up and stopping, reducing mechanical stress and extending equipment life.

Reliable Speed and Position Control for Compact Machinery

The Allen-Bradley 22D-D2P3H204 from the PowerFlex 40P series delivers exactly that in a compact, economical package. Designed for global OEMs and end users, this adjustable frequency drive provides the flexibility and space savings needed for modern automation systems.

Compatibility and Integration

This PowerFlex 40P drive works with Rockwell Automation’s Logix control platform. The Premier Integration feature simplifies parameter setup and tag programming, reducing development time and minimizing commissioning errors. The built-in RS-485 and CIP ports allow for easy connection to PLCs and HMIs, making it a versatile component in both new and retrofit installations.

Selection and Purchasing Advice

When selecting a replacement or new drive, verify that the 22D-D2P3H204 meets your voltage, current, and horsepower requirements. Contact AutoDCSTech to confirm current lifecycle status and availability before ordering. Our team can help you source genuine Allen-Bradley parts and provide technical support for your application.

Troubleshooting Common Issues

If the drive fails to start, check the input power and ensure the control wiring is correct. If the motor runs erratically, verify that the motor parameters match the drive settings. For communication issues, confirm that the RS-485 or CIP connections are properly terminated. Always refer to the user manual for specific fault codes and follow safe lockout/tagout procedures before servicing.
