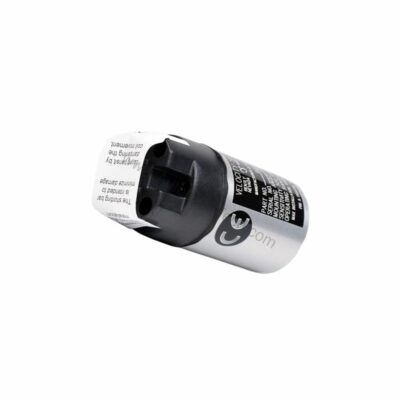

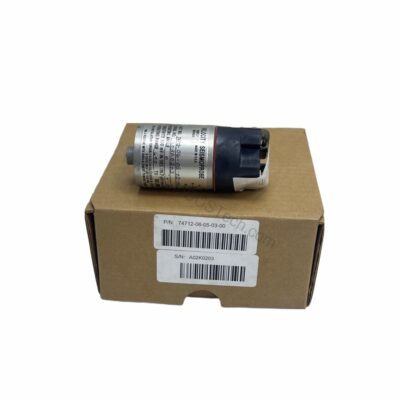

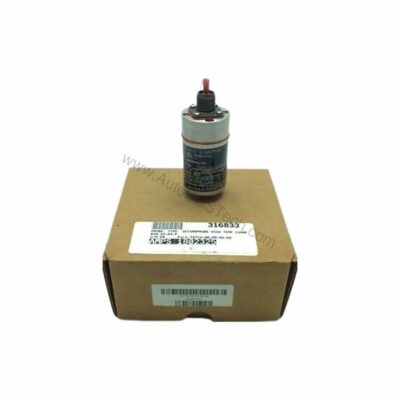

9200-03-05-01-00 4.5 Hz Two-Wire Velocity Seismoprobe

Introduction to the 9200-03-05-01-00

In rotating machinery monitoring, the ability to detect low-frequency vibration is critical. The 9200-03-05-01-00 from Bently Nevada is a two-wire velocity seismoprobe transducer engineered for this purpose. It provides accurate casing vibration measurements even in demanding industrial environments.

This model features a mounting angle of 90 ±2.5 degrees and a minimum operating frequency of 4.5 Hz (270 cpm). Such low-frequency response is essential for capturing slow-speed machinery issues before they escalate. The transducer is designed for permanent installation, offering reliable data for predictive maintenance programs.

Key Features and Technical Specifications

The 9200-03-05-01-00 delivers precise velocity measurements. Its sensitivity is 20 mV/mm/s (500 mV/in/s) with a ±5% tolerance, when properly terminated and oriented at the calibration angle. The calibration load is 10 kΩ, with output taken across pins A and B.

• Sensitivity: 20 mV/mm/s ±5%
• Calibration Load: 10 kΩ across terminals A and B
• Temperature Coefficient: 0.2%/°C
• Dynamic Operating Range: 2.54 mm (0.100 in) peak-to-peak maximum displacement
• Velocity Range: 25 mm/s (1 in/s) at +22 °C casing vibration at 100 Hz with 10 kΩ load
• Coil Resistance: 1.25 kΩ ±5%
• Locked Coil Inductance: 125 mH typical
• Operating Temperature (9200): -29°C to +121°C
• Relative Humidity: Up to 95% noncondensing; 100% non-submerged with integral cable
• Case Material: Anodized aluminum A204
• Gasket Material: Neoprene
• Height: 102 mm (4 in) typical
• Diameter: 41 mm (1.6 in) typical
• Weight: 300 grams (10.5 oz) typical

These specifications highlight the transducer's ability to operate in harsh conditions while maintaining high accuracy. The dust and moisture resistant design ensures longevity in industrial settings.

Real-World Applications

The 9200-03-05-01-00 is suitable for monitoring vibration on pumps, fans, compressors, and other rotating equipment. By providing continuous velocity data, it supports condition-based maintenance strategies, reducing unplanned downtime.

For example, in a paper mill, the transducer can monitor the health of dryer rolls operating at low speeds. This allows maintenance teams to detect bearing wear or imbalance before catastrophic failure occurs. The robust construction ensures reliable performance even in dusty or humid environments.

Installation and Mounting

Proper installation is vital for accurate measurements. The 9200-03-05-01-00 comes with a circular mounting base with a 1/4-20 UNC stud. The connector option is a terminal block top mount, simplifying wiring.

When installing, ensure the transducer is oriented at the specified angle of 90 ±2.5 degrees. Use a 10 kΩ load across terminals A and B for calibration. Secure the stud firmly to the machine surface, and route the cable to avoid damage. Following these steps will help maintain the specified sensitivity and performance.

Maintenance and Reliability

Routine inspection of the transducer and its mounting is recommended. Check for any signs of physical damage or corrosion. Verify that the cable connections are tight and free from moisture ingress.

The anodized aluminum case and neoprene gasket provide robust protection against environmental factors. With proper care, the 9200-03-05-01-00 offers long-term reliability, minimizing the need for frequent replacements. Regular calibration checks ensure continued accuracy.

Compatibility and Integration

This transducer is designed to work with Bently Nevada monitoring systems. It provides a standard velocity output signal that can be integrated into existing vibration monitoring networks. The two-wire configuration simplifies installation and reduces wiring complexity.

For integration, ensure that the monitoring system accepts the 20 mV/mm/s sensitivity and the 10 kΩ load requirement. The transducer's output can be used for trend analysis, alarm generation, and shutdown protection.

Common Issues and Troubleshooting

If the output signal is erratic or absent, check the wiring connections. Verify that the load resistance is 10 kΩ. Also, confirm that the transducer is mounted at the correct angle and not loose.

Temperature variations can affect sensitivity; the temperature coefficient is 0.2%/°C. For applications with extreme temperatures, consider the 74712 model which operates up to +204°C. If issues persist, consult the official Bently Nevada documentation or contact AutoDCSTech for support.

Product Support and Availability

The 9200-03-05-01-00 is available from AutoDCSTech. We supply new and original factory-packed units with a 12-month warranty. For technical assistance or ordering information, contact our team. We ensure prompt delivery and reliable support for your vibration monitoring needs.
