Introduction

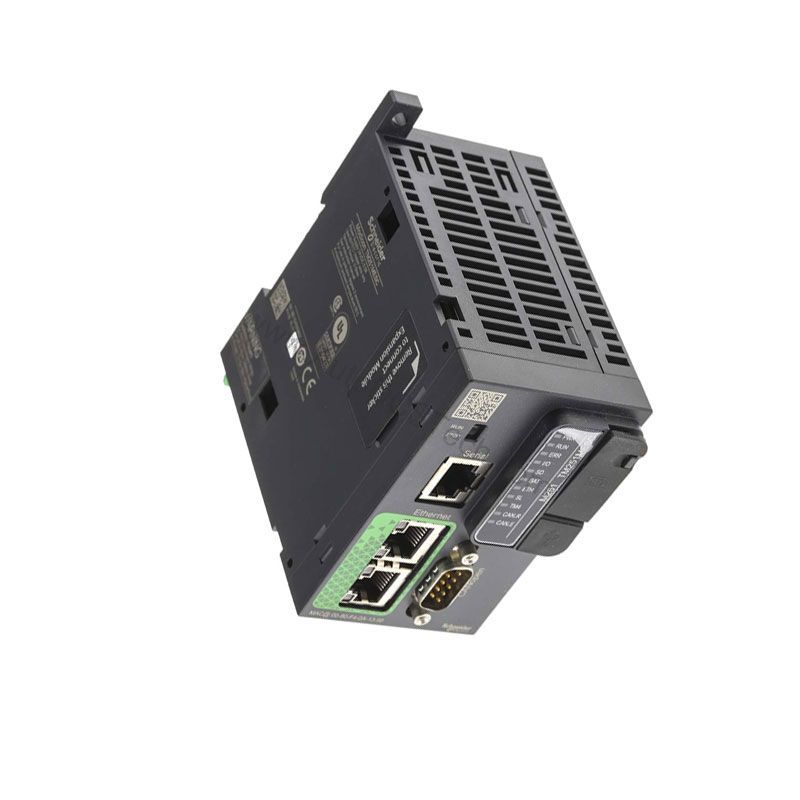

When a packaging line experiences intermittent communication failures between controllers and remote I/O, the Schneider TM251MESC logic controller from the Modicon M251 series provides a reliable solution. Designed for demanding industrial environments, this controller integrates Ethernet and CANopen connectivity to streamline data exchange and reduce downtime.
Technical Specifications Breakdown
Power and Performance
- Rated supply voltage: 24 V DC with limits of 20.4…28.8 V ensures stable operation even with fluctuating power sources.
- Inrush current: 50 A, managed by built-in protection.
- Power consumption: 32.6…40.4 W when fully loaded with I/O expansion modules.
- Memory: 64 MB system RAM and 128 MB flash memory for user program backup, with optional SD card support up to 16 GB.
Connectivity and Protocols
- Ethernet: Dual-port RJ45 supporting 10BASE-T/100BASE-TX for Modbus TCP, EtherNet/IP, and web services.
- CANopen: SUB-D 9 connector with support for up to 63 devices, compliant with DS 301 V4.02 and DR 303-1.
- Serial: RS232/RS485 via RJ45, plus USB mini B for programming.
Environmental Resilience
- Operating temperature: -10…55 °C (horizontal) or -10…35 °C (vertical).
- Vibration resistance: 3 gn at 8.4…150 Hz on symmetrical rail.
- Certifications: cULus, CE, UKCA, DNV-GL, ABS, LR, meeting marine and industrial standards.
Industry Applications
Material Handling Systems
In conveyor networks requiring precise coordination, the TM251MESC uses its CANopen master capability to manage up to 63 drives and sensors, while the dual Ethernet ports enable seamless integration with higher-level SCADA systems.
Water Treatment Plants
With support for Modbus TCP and serial Modbus RTU, this controller bridges legacy pumps and modern PLCs. Its 0.3 ms execution time for event tasks ensures rapid response to alarm conditions, minimizing water loss.
Installation & Setup Guidance
Mount the TM251MESC on a top-hat rail (TH35-15 or TH35-7.5) or panel using the fixing kit. Connect the 24 V DC supply to the removable screw terminal block (pitch 5.08 mm). Use shielded cables for Ethernet and CANopen to maintain signal integrity. For first-time setup, connect via USB mini B to SoMachine software and configure the IP address using the built-in DHCP client.
Maintenance & Reliability
Periodically inspect the LED indicators (PWR, RUN, ERR, I/O, SD, BAT, SL, TM4, CANopen run/error) for quick diagnostics. Replace the BR2032 lithium battery every 4 years to preserve real-time clock and program backup. Keep the protective cover in place to maintain IP20 rating. Operating within -10…55 °C and below 95% humidity ensures long service life.
Compatibility & Integration
The TM251MESC integrates with:
- Ethernet/IP: Up to 16 target connections for slave devices.
- Modbus TCP: 8 server and 8 client connections.
- CANopen: 63 server devices.
- Serial: Modbus RTU/ASCII master/slave.
- Web services: Built-in web server for WebVisu and XWeb system.
It supports up to 7 local and 14 remote I/O expansion modules, making it scalable for medium-sized applications.
Selection Guide & Purchasing Advice
Before ordering, verify your system voltage (24 V DC) and required I/O count. The TM251MESC is ideal for new installations or upgrades where Ethernet and CANopen are needed. SpareTechPLC stocks this controller with fast shipping and technical support to ensure a smooth integration.
Frequently Asked Questions
What is the maximum number of CANopen devices the TM251MESC supports?
It supports up to 63 CANopen server devices, compliant with DS 301 V4.02.
Can the TM251MESC be used in marine environments?
Yes, it holds certifications from DNV-GL, ABS, and LR for marine applications.
What memory backup options are available?
It has 128 MB built-in flash memory for user program backup and an optional SD card up to 16 GB.
What is the execution time for a 1 K instruction?
0.3 ms for event and periodic tasks, and 0.7 ms for other instructions.
Does the controller support web-based visualization?
Yes, it includes a web server for WebVisu and XWeb system, plus OPC UA server.
