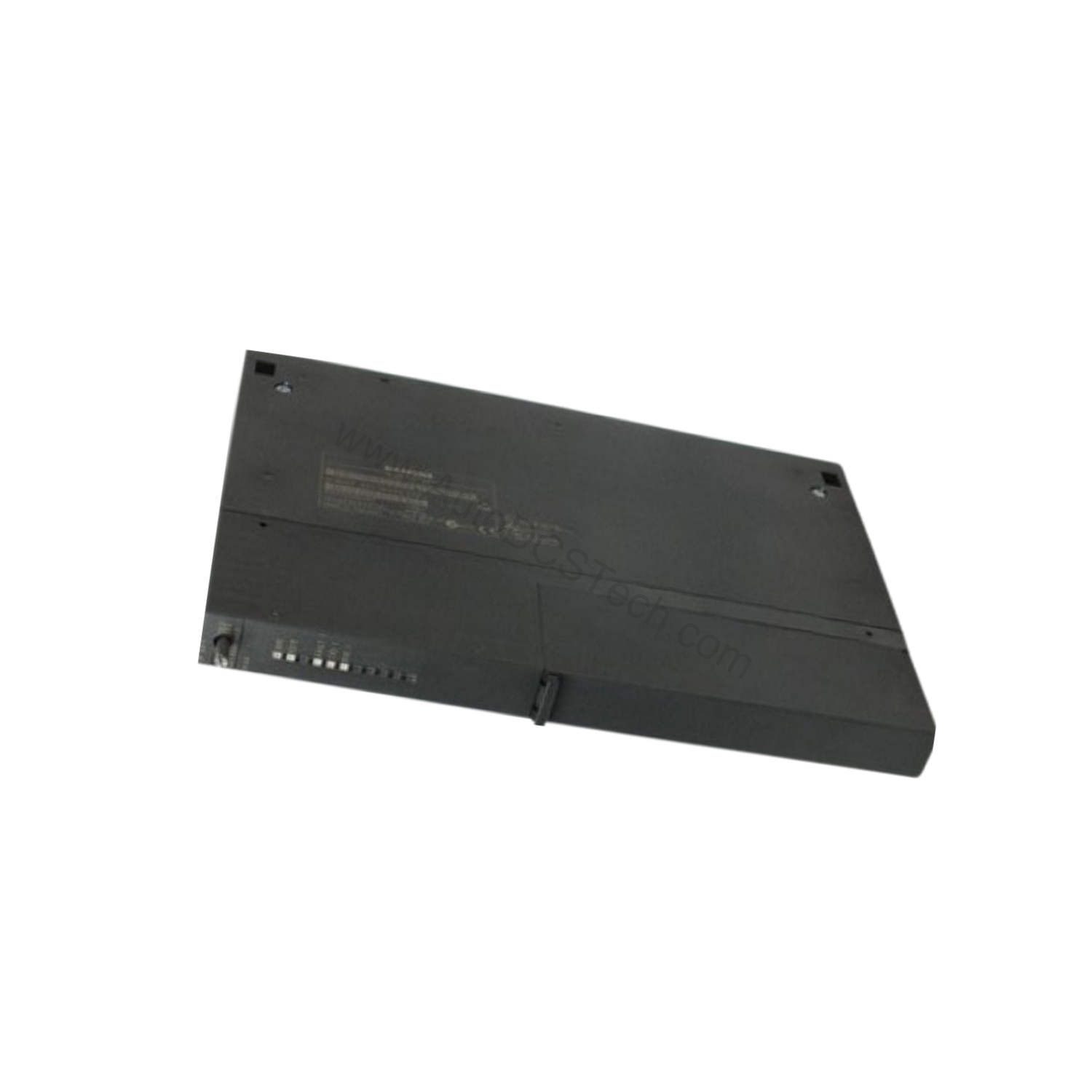

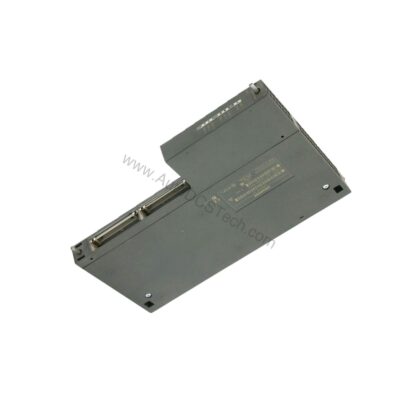

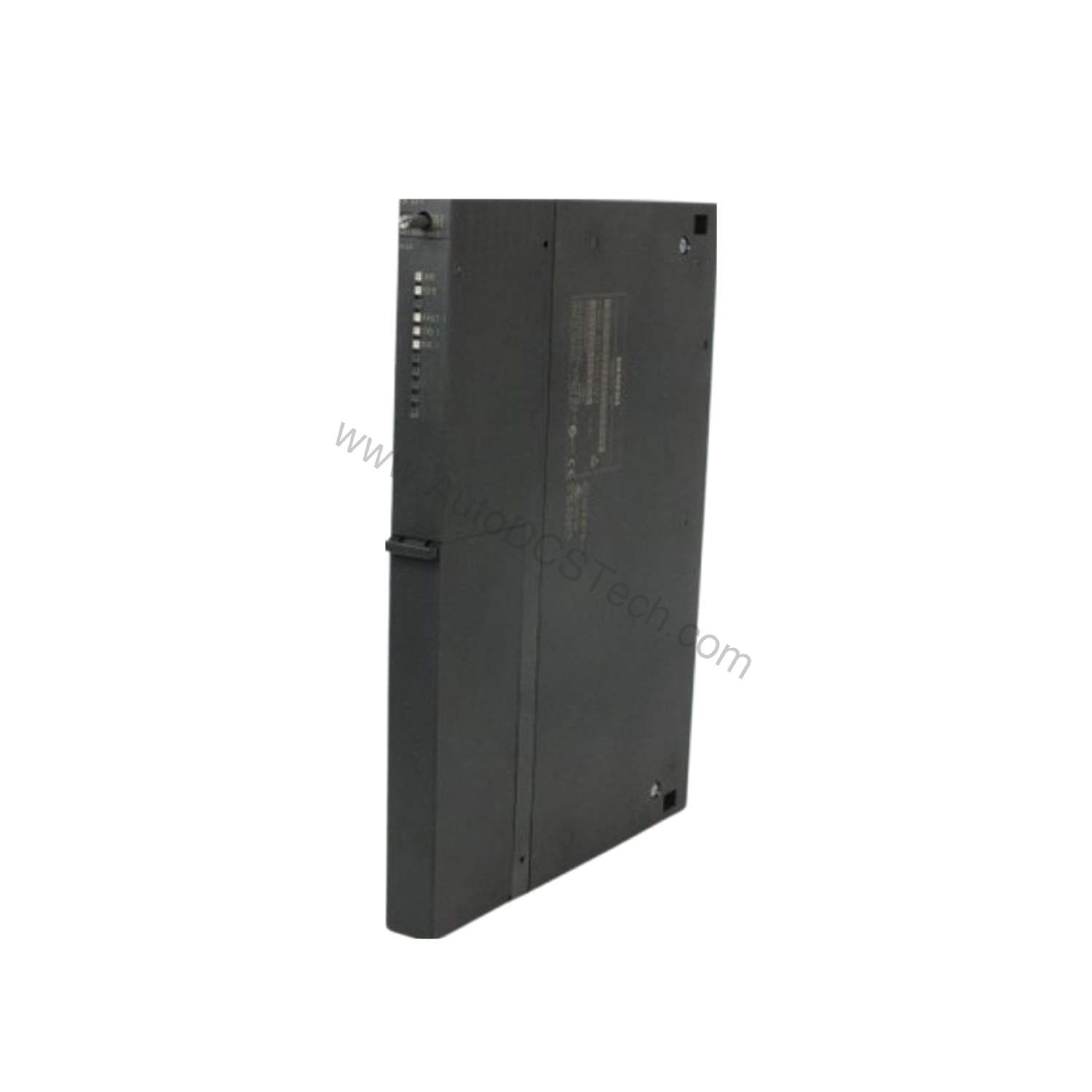

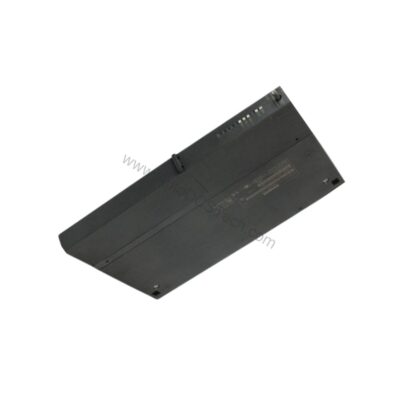

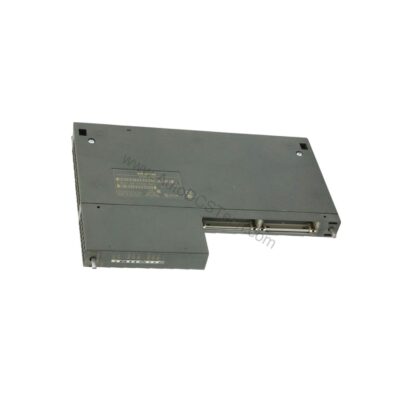

6ES7441-2AA03-0AE0 2-Channel Siemens CP 441-2 Module

Introduction: Reliable Point-to-Point Communication for S7-400 Systems

When your S7-400 controller must exchange data with remote devices, the 6ES7441-2AA03-0AE0 delivers dependable point-to-point connectivity. This Siemens communications module supports two channels, making it a versatile choice for serial links in demanding industrial environments.

Designed for the SIMATIC S7-400 family, the CP 441-2 handles both simple and complex communication tasks. Its configurable interfaces allow you to adapt to various physical standards without changing hardware, reducing downtime and simplifying inventory.

Key Features and Technical Specifications

The 6ES7441-2AA03-0AE0 offers a robust set of features that ensure stable and flexible serial communication. Below are the critical specifications extracted from the official datasheet:

• Two variable interfaces supporting 20 mA (TTY), RS 232C (V.24), and RS 422/485 (X.27) physical standards.
• Maximum transmission rate of 115.2 kbit/s, distributed across both interfaces.
• Backplane bus current draw: 700 mA from 5 V DC (without interface module).
• Interface module power consumption: 300 mA at 5 V for all types; additionally 45 mA at 24 V for TTY.
• Cable length limits: 1,000 m for TTY, 10 m for RS 232, and 1,200 m for RS 422/485.
• Integrated protocol drivers for 3964 (R), ASCII, RK512, and printer support.
• Reloadable customer-specific drivers for custom protocols.
• Memory requirements: 1–5 KB for parameters, 0–55 KB for message texts, and 0–64 KB for loadable drivers.
• Dimensions: 25 mm width, 290 mm height, 210 mm depth; weight approx. 720 g (interface module: 100 g).

One distinctive advantage is the ability to run different protocols on each interface simultaneously. This flexibility lets you connect a printer on one channel while maintaining a 3964 (R) link to a PLC on the other, maximizing the module's utility.

Applications and Use Cases

In manufacturing, the 6ES7441-2AA03-0AE0 is used for connecting S7-400 PLCs to barcode scanners, weigh scales, and operator panels.

Furthermore, the module's long cable reach (up to 1,200 m for RS 422/485) suits distributed layouts, such as conveyor systems spanning large facilities. By using the TTY interface, you can achieve 1,000 m connections in electrically noisy environments, thanks to its current-loop immunity.

For engineers upgrading older point-to-point links, the CP 441-2 provides a modern, configurable solution that preserves existing cabling and protocols, reducing retrofit costs.

Installation and Setup

Mount the 6ES7441-2AA03-0AE0 directly on the S7-400 rack. Ensure the backplane bus can supply the required 700 mA at 5 V DC. Select the appropriate interface module (TTY, RS 232, or RS 422/485) based on your device's physical layer.

Use shielded cables with lengths within the specified limits to maintain signal integrity. Configure the module using STEP 7, which provides dedicated parameter assignment forms. Load the necessary protocol drivers onto the memory card of the S7-CPU, keeping in mind the memory requirements (1–5 KB for parameters, 0–55 KB for message texts, and 0–64 KB for loadable drivers).

For RS 422/485 networks, pay attention to termination and biasing resistors as per standard practice. Always verify the wiring against the interface module's pinout before powering up.

Maintenance and Reliability

Regular inspection of the module and its connections helps prevent communication failures. Check that all cable connectors are secure and free from corrosion. Periodically verify that the interface module is seated correctly and that the backplane bus voltage remains within specification.

Because the module draws up to 700 mA from the 5 V bus, ensure adequate cooling and airflow in the cabinet. Avoid exposing the module to excessive dust or humidity, which can degrade connector contacts over time.

For long-term reliability, follow the manufacturer's guidelines for cleaning and handling. If you notice intermittent errors, review the configuration and cable quality, as these are common sources of point-to-point issues.

Compatibility and Integration

The 6ES7441-2AA03-0AE0 is designed for the SIMATIC S7-400 family, working with any S7-400 CPU that supports the CP 441-2. It supports S7 extended communication, enabling seamless data exchange with other S7 systems.

With up to 8 total connections, the module can handle multiple simultaneous links, making it suitable for small to medium-sized networks. The integrated protocol drivers cover 3964 (R), ASCII, RK512, and printer protocols, while customer-specific drivers can be reloaded for proprietary systems.

For new installations, verify that the CPU's firmware and STEP 7 version are compatible with the CP 441-2. Use the configuration package on the included CD to simplify setup.

Troubleshooting and Common Issues

If communication fails, first check the physical layer. Ensure the correct interface module is installed and that cable lengths are within the specified limits (1,000 m for TTY, 10 m for RS 232, 1,200 m for RS 422/485). Verify that the transmission rate matches the connected device's capability.

For protocol-specific issues, confirm that the correct driver is loaded and that the memory card has sufficient space. If using a custom driver, test it in a controlled environment before deploying.

When using the printer driver, ensure the printer model is supported (HP-Deskjet, HP-Laserjet, IBM-Proprinter, or user-defined). For RS 422/485 networks, check termination and grounding to avoid signal reflections.

Product Support and Availability

The 6ES7441-2AA03-0AE0 is available from AutoDCSTech. Contact our team to confirm current stock and lead times.
