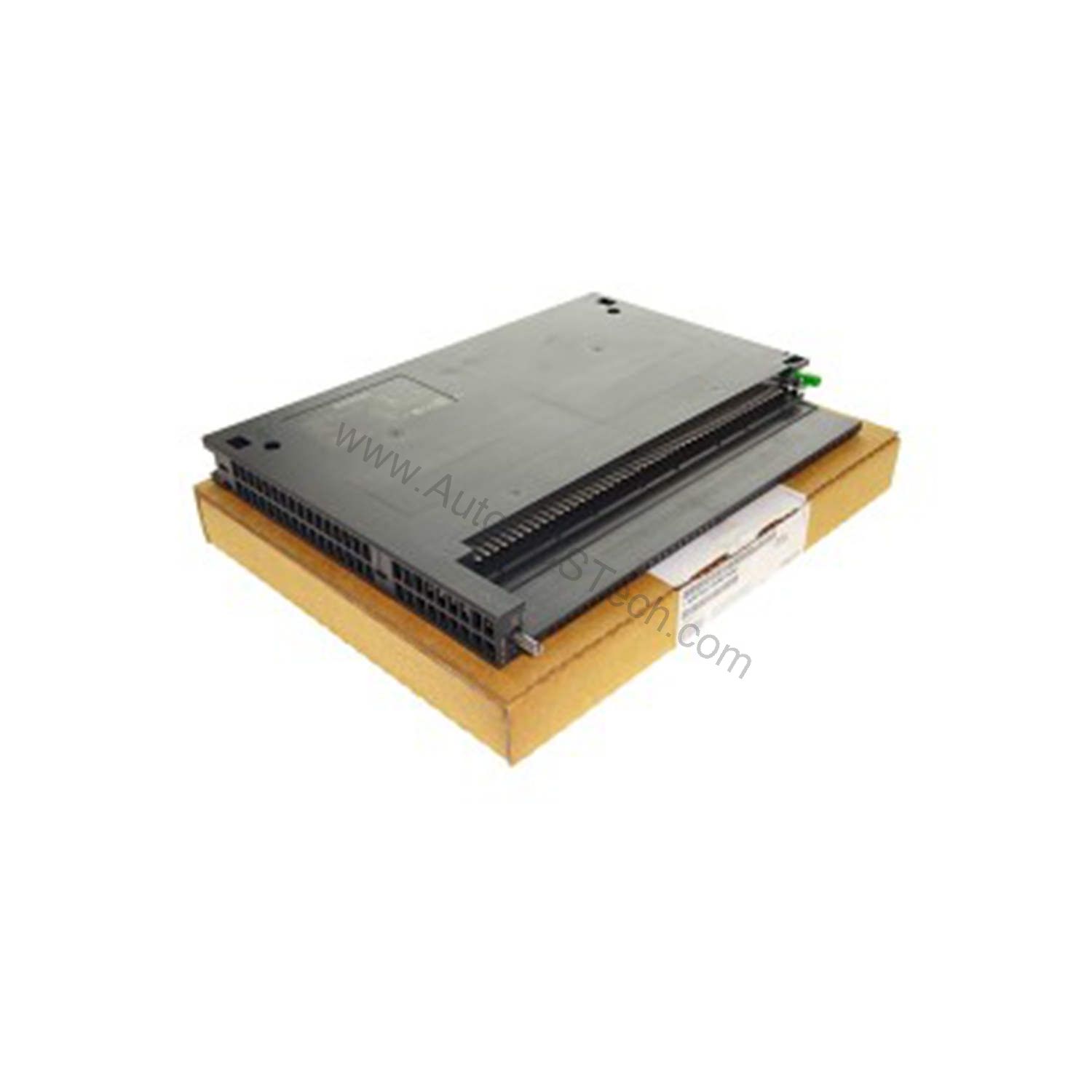

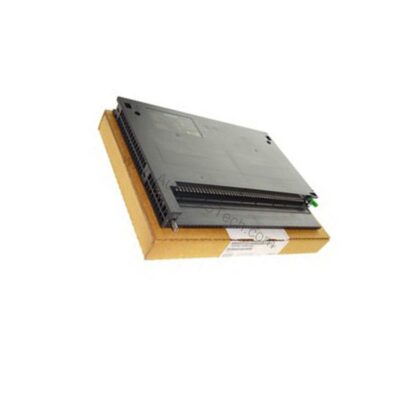

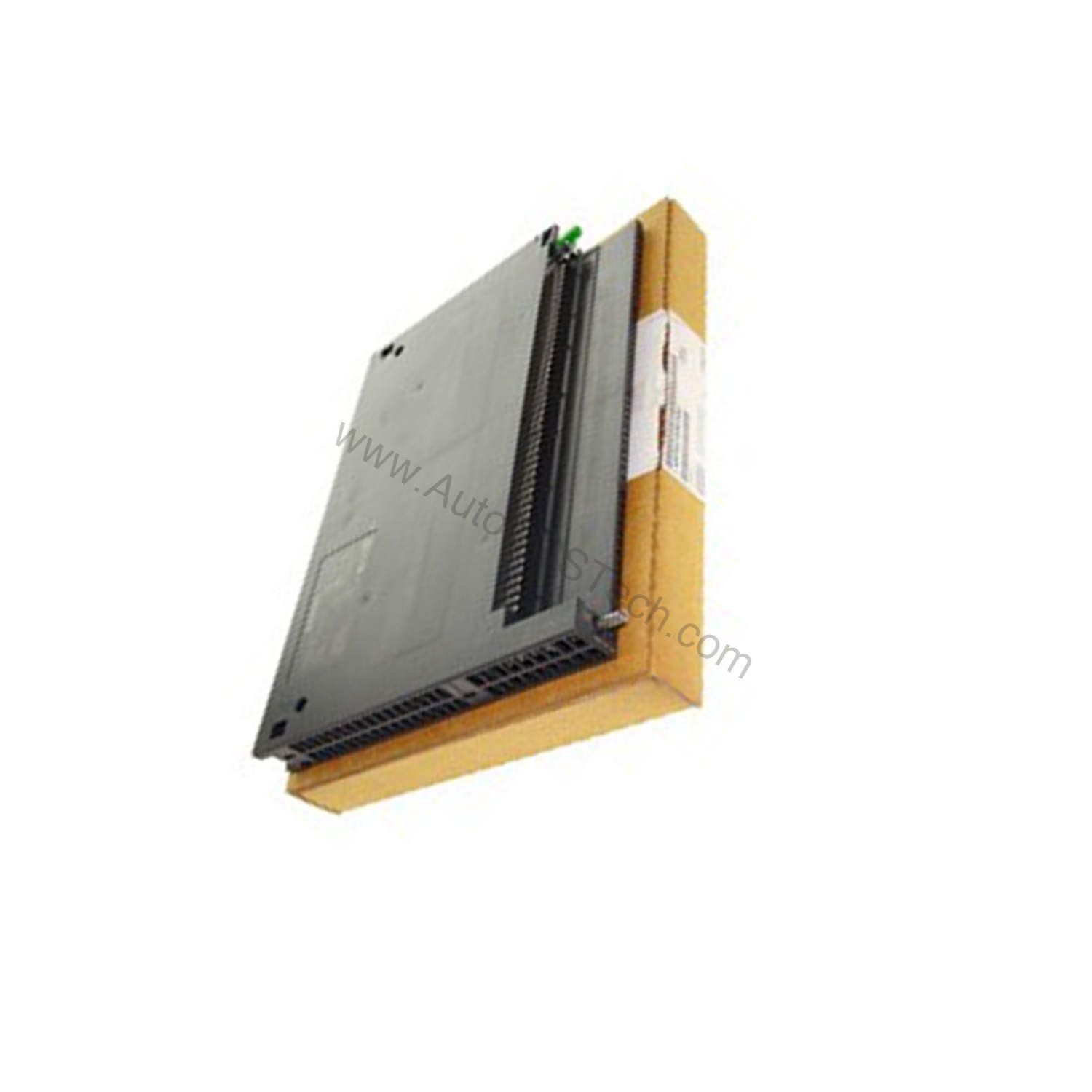

6ES7432-1HF00-0AB0 8-Channel Analog Output Module

Introduction to the 6ES7432-1HF00-0AB0 Analog Output Module

This SIMATIC S7-400 module provides eight isolated analog outputs with 13-bit resolution, supporting both voltage and current ranges. Designed for industrial environments, it ensures stable signal generation for critical processes.

Engineers choose this module for its robust construction and consistent accuracy. With a typical power loss of 9 W, it operates efficiently within the S7-400 rack. The module's isolated channels prevent ground loops, enhancing signal integrity in noisy plant environments.

Key Technical Specifications of the 6ES7432-1HF00-0AB0

The 6ES7432-1HF00-0AB0 offers a comprehensive set of analog output features. Below are the core parameters that define its performance:

• Number of analog outputs: 8 isolated channels
• Resolution: 13 bits including sign
• Supply voltage L+: 24 V DC with reverse polarity protection
• Current consumption from L+: max. 200 mA without load; max. 400 mA at rated load
• Current consumption from backplane bus: 5 V DC, max. 150 mA
• Power loss: typ. 9 W
• Voltage output ranges: 0 to 10 V, 1 V to 5 V, -10 V to +10 V
• Current output ranges: 0 to 20 mA, -20 mA to +20 mA, 4 mA to 20 mA
• Short-circuit protection: Yes, for voltage outputs
• Short-circuit current: max. 30 mA
• No-load voltage for current outputs: max. 19 V
• Load impedance (voltage outputs): min. 1 kΩ
• Capacitive load (voltage outputs): max. 1 µF
• Load impedance (current outputs): max. 500 Ω; 600 Ω if common-mode voltage reduced to <1 V
• Shielded cable length: max. 200 m
• Conversion time per channel: 420 µs (1-5 V, 4-20 mA); 300 µs in all ranges
• Settling time: 0.1 ms resistive, 3.5 ms capacitive, 0.5 ms inductive
• Operational error limit (voltage): ±0.5% of output range
• Operational error limit (current): ±1% of output range
• Basic error limit (25 °C): ±0.5% for both voltage and current
• Isolation: Between channels and backplane bus, and between channels and load voltage L+
• Dimensions: 25 mm x 290 mm x 210 mm (W x H x D)
• Weight: approx. 650 g

These specifications make the 6ES7432-1HF00-0AB0 a versatile choice for precise analog control tasks.

Applications and Use Cases for the 6ES7432-1HF00-0AB0

The 6ES7432-1HF00-0AB0Its isolated outputs protect against ground potential differences, making it suitable for distributed installations. In a typical scenario, the module controls variable speed drives, valve positioners, or chart recorders with high accuracy.

Moreover, the module's fast conversion time (300 µs in some ranges) supports high-speed control loops. Additionally, the wide selection of output ranges allows seamless integration with various actuators.

Installation and Setup Guidance

Installing the 6ES7432-1HF00-0AB0 is straightforward. First, ensure the S7-400 rack is powered off. Then, insert the module into a free slot, ensuring proper seating. Connect the 24 V DC load voltage to L+ and M terminals, observing polarity. For wiring, use shielded cables up to 200 m to maintain signal integrity.

After installation, configure the output ranges via the hardware configuration software. Verify that the load impedance meets the minimum requirements: 1 kΩ for voltage outputs and 500 Ω for current outputs. Finally, test each channel to confirm correct operation.

Maintenance and Reliability

To ensure long-term reliability, periodically inspect the module's connections and verify that the supply voltage remains within specification. The module's reverse polarity protection prevents damage from wiring errors. Also, keep the enclosure clean and free from excessive dust, which could affect cooling.

Given the module's solid-state design, there are no moving parts, reducing wear. Regular system checks, as part of routine maintenance, will help detect any drift in output accuracy. Consequently, the 6ES7432-1HF00-0AB0 offers dependable service over its lifespan.

Compatibility and Integration

The 6ES7432-1HF00-0AB0 is designed for the SIMATIC S7-400 PLC family. It communicates over the backplane bus, requiring 5 V DC power. The module is compatible with standard S7-400 racks and power supplies. Integration with existing S7-400 systems is seamless, as it follows the same form factor and configuration principles.

For programming, use SIMATIC STEP 7 software to configure the module's parameters. The module supports both voltage and current outputs, offering flexibility in connecting to field devices. Therefore, it fits well into both new installations and upgrades of existing S7-400 systems.

Common Issues and Troubleshooting

One common issue is incorrect output readings due to improper load impedance. For voltage outputs, ensure the load is at least 1 kΩ. For current outputs, keep the load below 500 Ω (or 600 Ω with reduced common-mode voltage). Another issue is signal noise, which can be mitigated by using shielded cables and proper grounding.

If a channel fails, check the wiring and supply voltage. The module does not provide diagnostics, so external monitoring may be necessary. In case of persistent problems, consult the Siemens manual or contact AutoDCSTech for support.

Product Support and Availability

The 6ES7432-1HF00-0AB0 is available from AutoDCSTech. Please verify current lifecycle status and availability before ordering. Our team can assist with technical questions and provide documentation. Contact us for a quote or further information.
