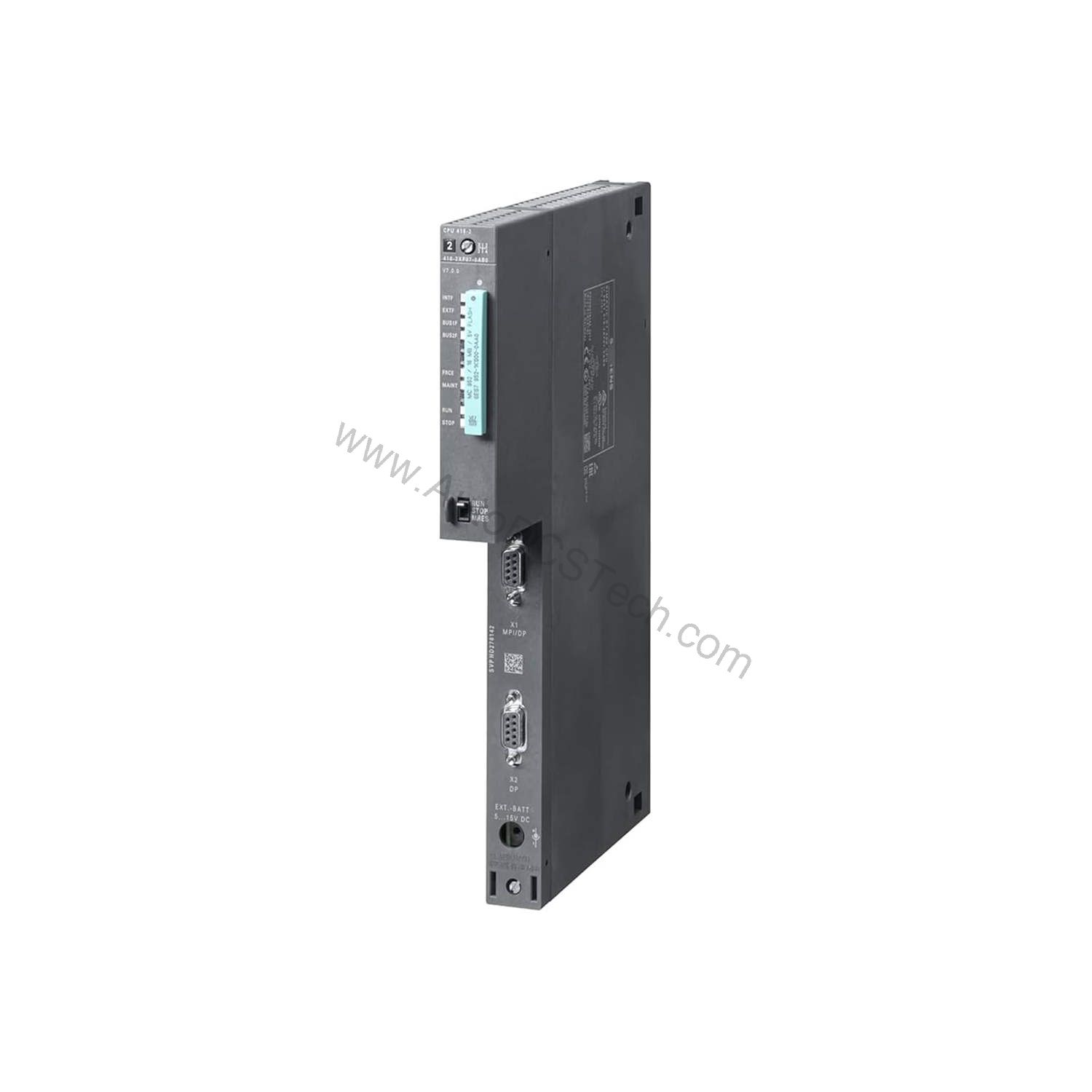

6ES7416-2XP07-0AB0 8MB CPU 416-2 S7-400

Key Features and Technical Specifications

• Work memory: 8 MB total (4 MB code, 4 MB data) – non-expandable, but ample for large applications.

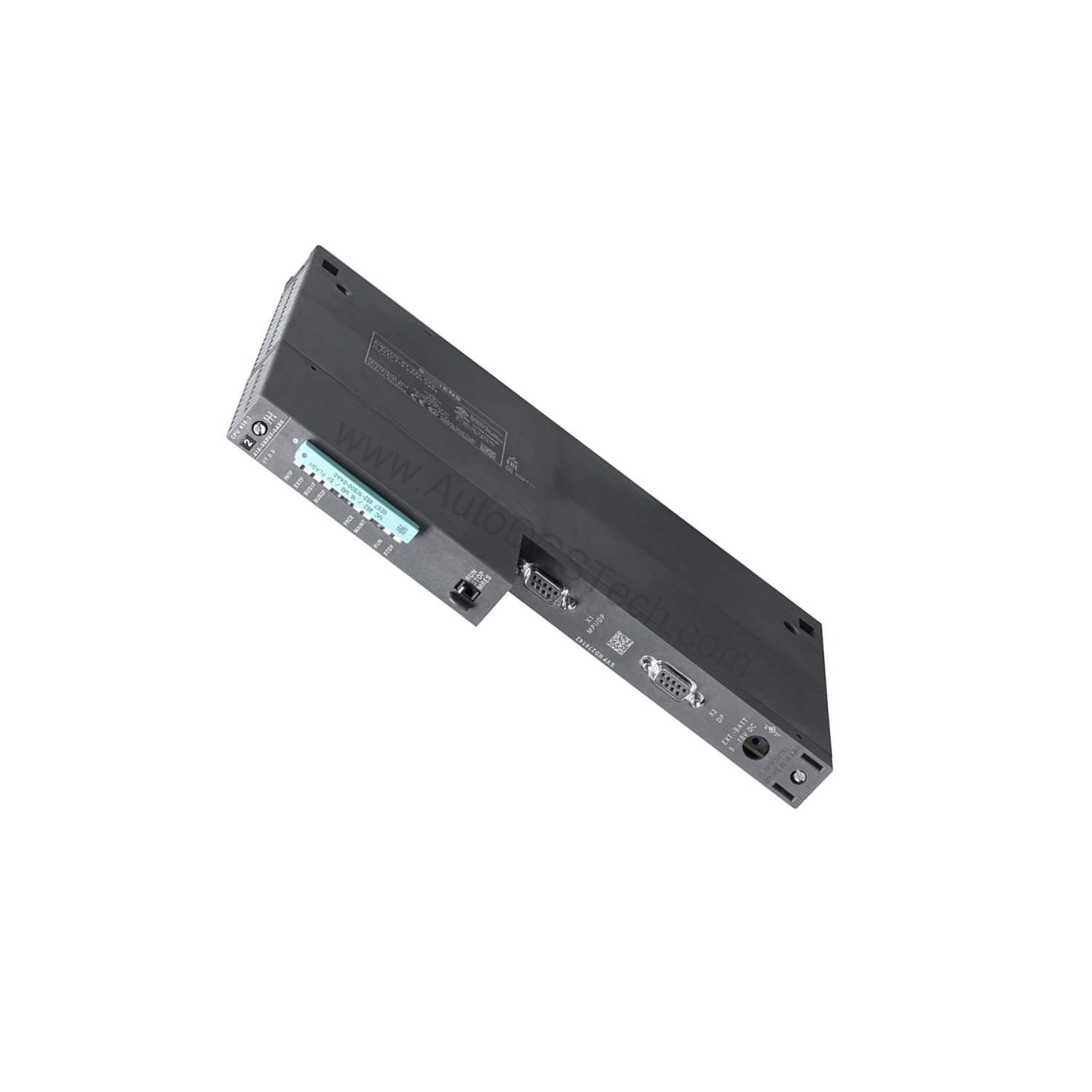

• Interfaces: 1x MPI/PROFIBUS DP (12 Mbit/s) and 1x PROFIBUS DP (12 Mbit/s), both isolated.
• Processing speed: 12.5 ns for bit, word, and fixed-point operations; 25 ns for floating-point.
• Power supply: Via system power supply; draws 5 V DC (typ. 0.9 A, max. 1.1 A) and 24 V DC (max. 300 mA) from backplane bus.
• Power loss: Typ. 4.5 W, max. 5.5 W.
• Memory types: RAM integrated; load memory expandable via Memory Card (FEPROM or RAM) up to 64 MB.
• Backup: Battery-backed, retains all data; external backup voltage 5–15 V DC.
• Dimensions: 25 mm (W) x 290 mm (H) x 219 mm (D); weight approx. 700 g.

One distinctive spec is the isochronous mode for PROFIBUS, which enables equidistant DP cycles—critical for motion control and high-speed process synchronization.

Real-World Applications

Its two DP masters allow you to manage up to 125 slaves on the second interface, while the first interface can handle 32 slaves. With 131,072 digital I/O and 8,192 analog I/O channels (central), it scales to large installations. The 96 total connections support extensive HMI and SCADA integration, ensuring seamless data flow across the plant.

Installation and Setup

Mount the CPU in a S7-400 rack (UR1 or UR2) and connect the backplane bus. Use the MPI/DP interface for programming via STEP 7 V5.4 or higher (with HSP 261). For PROFIBUS DP, set the transmission rate up to 12 Mbit/s and configure the master/slave parameters in the hardware config. Ensure proper grounding and shielding for the RS-485 lines to maintain signal integrity.

Maintenance and Reliability

Routine inspection of the battery and backplane connections is recommended to ensure uninterrupted operation. The CPU's low power loss (typ. 4.5 W) reduces heat stress, extending component life. Operating temperature range is 0–60 °C, so verify adequate ventilation in the control cabinet. Periodically check the diagnostic buffer (up to 3,200 entries) for early warning of faults.

Compatibility and Integration

As a S7-400 CPU, it integrates with Siemens I/O modules, CPs (e.g., CP 443-1 for Ethernet, CP 443-5 for PROFIBUS), and IM 460/463 interface modules. It supports S7 communication (client/server), PG/OP communication, and global data communication. For PROFINET, you can add CP 443-1 modules (max. 4 as controller). The CPU also supports S5-compatible communication via AG_SEND/AG_RECV.

Troubleshooting Common Issues

If the CPU fails to start, check the battery backup and the memory card. For DP slave faults, use the diagnostic buffer and the DPV1 services to isolate the problem. If communication is slow, verify the transmission rate and the number of active connections (max. 96). Ensure that the isochronous mode is correctly configured for equidistant DP cycles.

Product Support and Availability

At AutoDCSTech, we stock the Siemens 6ES7416-2XP07-0AB0 CPU 416-2. Contact our team for availability and lead times.
