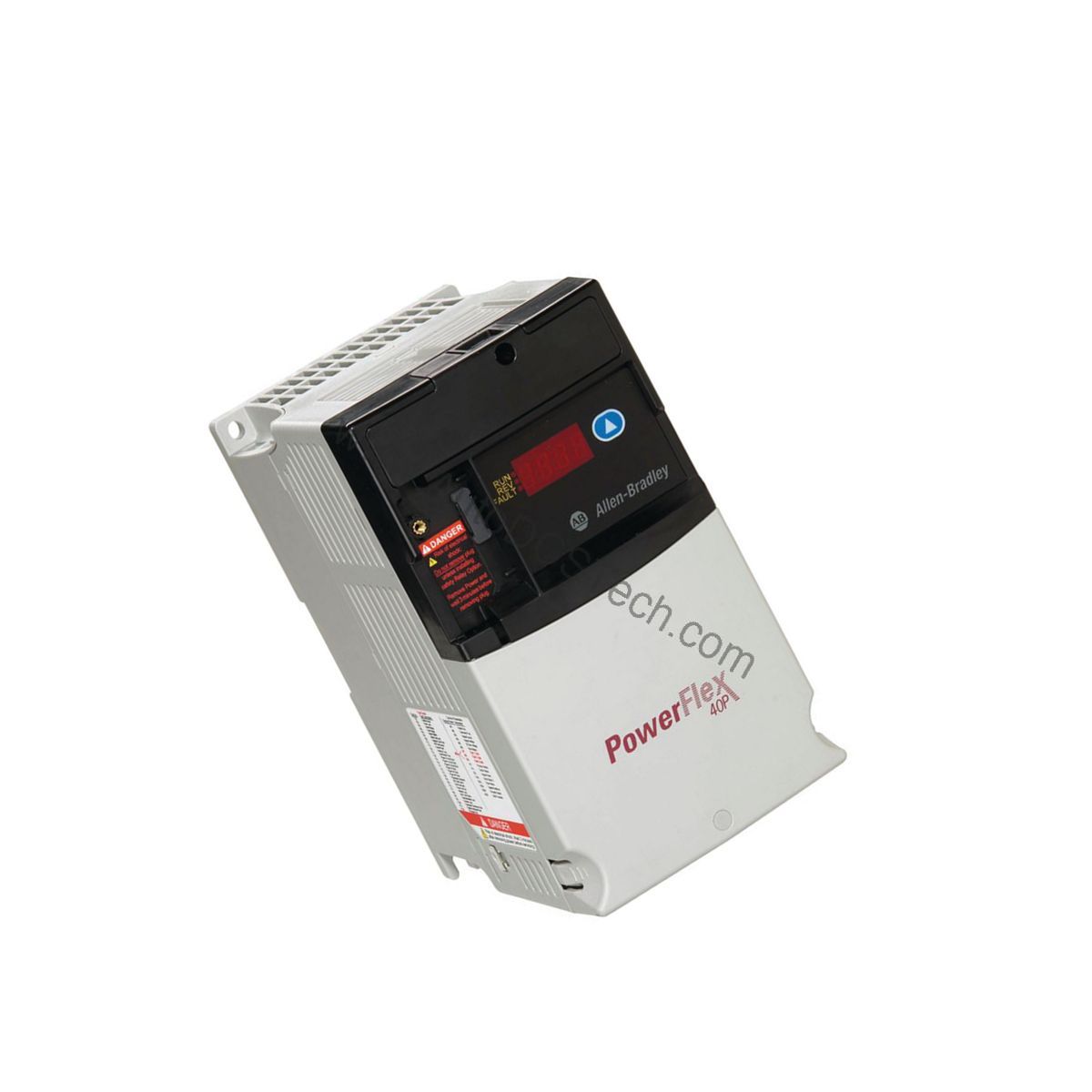

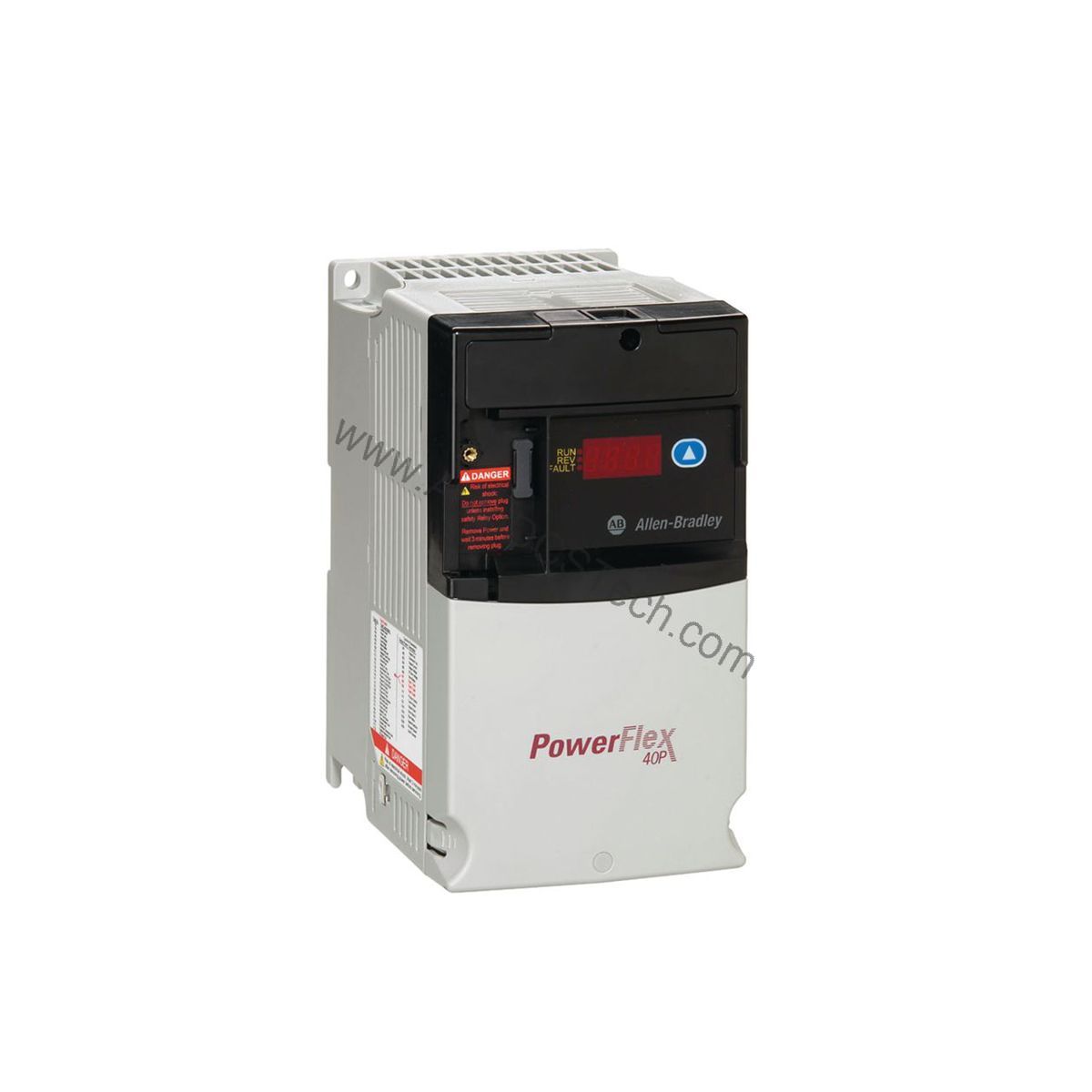

Allen-Bradley 22D-B024F104 PowerFlex 40P AC Drive, 24A, 240V

PowerFlex 40P Adjustable Frequency Drive Overview

This PowerFlex 40P series drive is engineered for demanding industrial environments, offering a compact, standard flange-mount design that simplifies panel integration. With a 3-phase 240 Volts AC input and a 24 Amp output rating, it provides 7.5 Horsepower of continuous motor control. Whether you are retrofitting an aging drive or designing a new control system, this unit offers the flexibility and performance your application requires.

Technical Specifications Breakdown

Key parameters for the 22D-B024F104 are listed below for quick reference:

Industry Applications and Control Benefits

This adjustable frequency drive is well-suited for applications such as conveyors, fans, pumps, and mixers where variable speed control improves process efficiency and reduces mechanical stress. The 22D-B024F104 supports multiple control methods—Sensorless Vector, Sinusoidal PWM, and Volts/Hertz—allowing you to match the drive to your motor and load characteristics. The programmable output frequency range of 0 to 500 Hertz gives you the flexibility to run high-speed spindles or standard induction motors. By integrating this drive into your PLC system, you gain precise regulation of acceleration, deceleration, and running speed, which translates to better product quality and lower energy consumption.

Installation and Setup Guidance

The flange-mount design of this PowerFlex 40P drive allows for convenient installation inside an IP20 rated enclosure, protecting the unit from dust and accidental contact. When mounting, ensure adequate clearance for airflow and heat dissipation. The drive operates reliably in ambient temperatures from -10 to 50 degrees Celsius, so proper ventilation is essential. For wiring, always follow the manufacturer's manual and local electrical codes. Since this unit does not include a CE-compliant EMC filter, you may need to add an external filter if your installation requires strict electromagnetic compatibility. Verify that your motor's full-load current does not exceed the 24 Amp output rating of the drive.

Maintenance and Reliability

Routine maintenance is straightforward. Periodically inspect the drive for dust buildup, loose connections, and signs of overheating. The unit is designed to withstand shock up to 15 G peak for 11 milliseconds and vibration of 1G peak at 5 to 2000 Hertz, making it robust for industrial environments. Keep the enclosure clean and ensure the ambient relative humidity stays between 0 and 95% non-condensing. Storage temperature should remain between -40 and 85 degrees Celsius. By following these simple practices, you can extend the service life of your drive and minimize unplanned downtime.

Compatibility and Integration

As part of the PowerFlex 40P family, this drive is designed to work with Allen-Bradley programmable logic controllers. It supports standard analog and digital I/O interfaces, allowing easy integration into existing control schemes. The drive's control methods—Sensorless Vector, Sinusoidal PWM, and Volts/Hertz—provide compatibility with a wide range of AC induction motors. When selecting a drive for your application, always match the drive's output current and voltage to your motor's nameplate ratings.

Purchasing Advice from AutoDCSTech

The 22D-B024F104 is available for immediate shipment. Our team can help you verify that this model meets your specific requirements. We are committed to providing quality industrial automation parts that keep your operations running smoothly.
