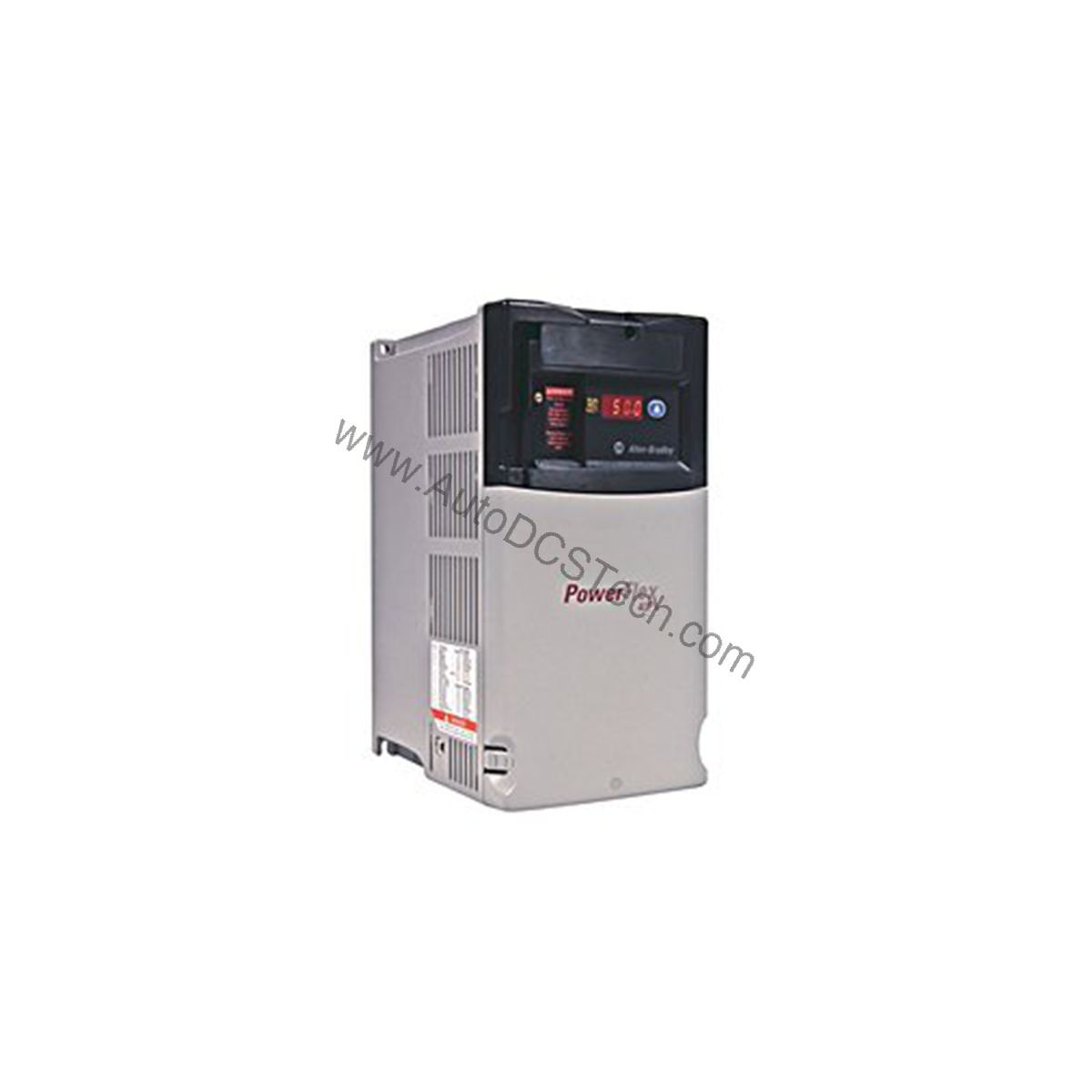

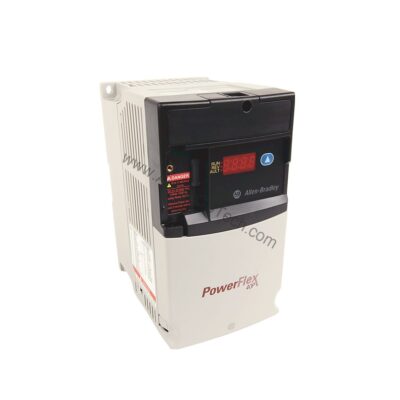

Allen-Bradley 22D-B2P3H204 PowerFlex 40P AC Drive – 0.5 HP

Technical Specifications Breakdown

Key parameters for the 22D-B2P3H204 are listed below for quick reference:

Industry Applications That Cut Costs

For example, in conveyor systems, it allows you to adjust belt speed to match production flow, reducing mechanical stress and energy waste. In fan and pump applications, the drive's sensorless vector control maintains precise speed regulation across a 100:1 speed range, which translates directly to lower power consumption compared to constant-speed operation. Similarly, in packaging machinery, the drive's programmable acceleration and deceleration times (0 to 600 seconds in 0.1-second increments) minimize product damage and reduce downtime.

Installation & Setup Guidance

Proper installation is key to maximizing the life of your drive. Mount the 22D-B2P3H204 in a clean, dry location with adequate clearance for airflow. The IP20 (NEMA open) enclosure is suitable for indoor use in a control cabinet. Ensure the input voltage is within the tolerance range of -10% to +10% of 240VAC, and the frequency is between 48 and 63 Hz. Use the integral RS-485 communication port for programming, and take advantage of the PC programming capability to simplify setup. Always follow local electrical codes and use properly sized fuses or circuit breakers.

Maintenance & Reliability

The 22D-B2P3H204 is built for reliability, but periodic inspection is recommended. Check for dust buildup on the heatsink and ensure the ambient temperature stays within the operational range of 14 to 104 degrees Fahrenheit. The drive's Class 10 motor overload protection using the i²t algorithm helps prevent motor damage, reducing unplanned maintenance costs. With a drive efficiency of 97.5%, energy losses are minimized, contributing to lower operating expenses over time.

Cost-Effective Speed Control with the Allen-Bradley 22D-B2P3H204

This compact drive is designed for applications where precise speed regulation and torque control directly impact your operating costs. By matching motor speed to actual demand, you reduce energy consumption and extend equipment life, delivering a fast return on investment.

Compatibility & Integration

The 22D-B2P3H204 is designed to work with standard 3-phase induction motors. It supports both sensorless vector control and standard Volt per Hertz control, giving you flexibility. The integral RS-485 port allows easy integration with PLCs or other control systems, enabling remote monitoring and control. The drive also features a Human-Machine Interface (HMI) with an integral display and fault reset buttons, simplifying local operation.

Selection Guide & Purchasing Advice

When selecting a drive, consider your motor's full-load current and the required overload capability. The 22D-B2P3H204 provides 150% overload for 1 minute and 200% for 3 seconds, which is suitable for most light-to-medium duty applications. If you need a drive with a CE-compliant filter, note that this model does not include one. We specialize in industrial automation parts and can help you find the right solution.

Please verify current lifecycle status and availability with AutoDCSTech before ordering.
