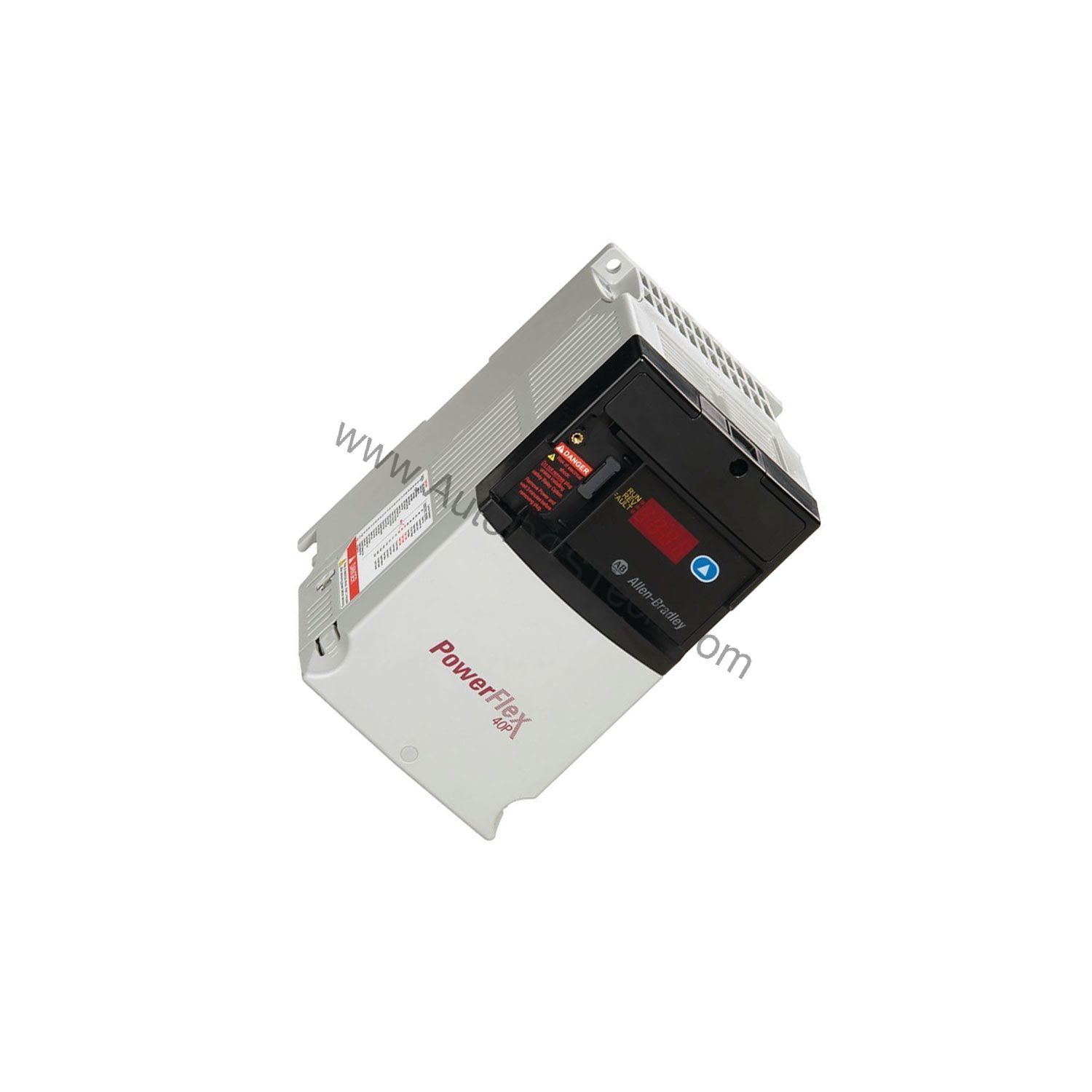

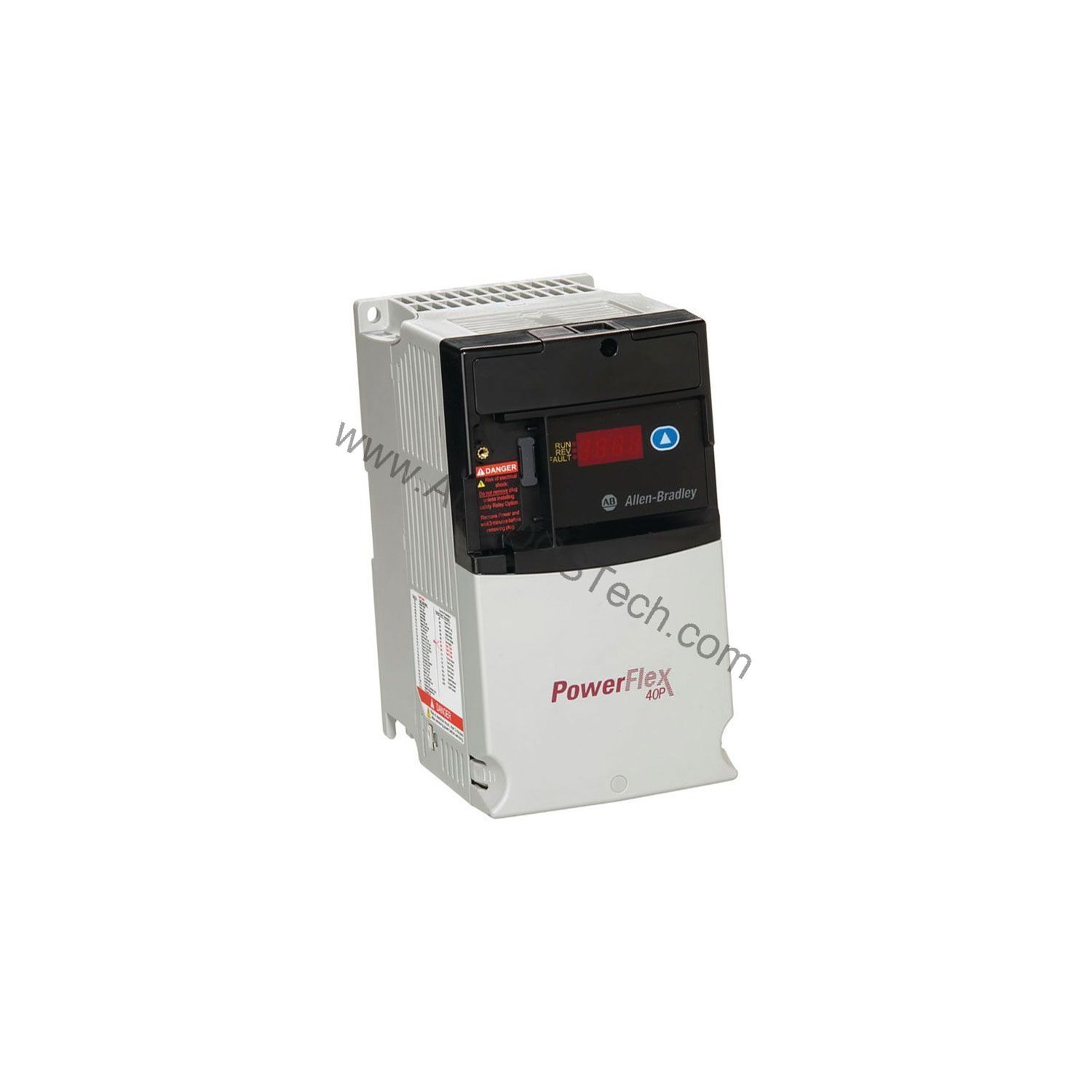

Allen-Bradley 22D-D4P0F104 PowerFlex 40P AC Drive 4.0A

Technical Specifications Breakdown

Key parameters for the 22D-D4P0F104 are listed below for quick reference:

Industry Applications: Where This Drive Shines

The 22D-D4P0F104 is a workhorse for applications that demand precise speed regulation and a small footprint. Its closed-loop control capability makes it suitable for processes where accuracy is critical, such as:

• Conveyor Systems: Maintain consistent belt speed for accurate product positioning and smooth material handling.
• Packaging Machinery: Coordinate multiple axes with repeatable start/stop cycles, improving throughput and reducing waste.
• Pump and Fan Control: Adjust motor speed to match process demand, saving energy and reducing mechanical stress on the system.

The drive's ability to mount in NEMA 1/IP30 and NEMA 4/IP66 enclosures using a plate or flange driver adds a layer of design flexibility. This means you can integrate the drive into existing equipment without major re-engineering, a key advantage for retrofits and space-constrained installations.

Installation & Setup Guidance

Proper installation is critical for reliable operation. Here are some practical guidelines:

• Mounting: The 22D-D4P0F104 supports DIN rail mounting and panel mounting. The virtual snap feature allows for installation without physical access to the machine, simplifying the process. Ensure adequate spacing around the drive for airflow.
• Zero Stacking: You can save valuable panel space by Zero Stacking the drive at ambient temperatures up to 40 degrees Celsius. If the ambient temperature reaches up to 50 degrees Celsius, you must provide a minimum amount of spacing between drives to ensure proper cooling.
• Enclosure: The drive is rated for IP20 (Open NEMA Type - Flange Mount). For environments with dust, dirt, vapors, chemicals, or water, install the drive in an IP 20, IP 40, IP 54, or IP 65 rated enclosure for protection.
• Wiring: Always follow the manufacturer's wiring diagrams and local electrical codes. Use the correct wire sizes and torque specifications for the terminal blocks.

Maintenance & Reliability

To ensure long-term reliability, follow a routine maintenance schedule:

• Periodic Inspection: Check for loose connections, signs of overheating, and accumulated dust on the heatsink and internal components. The frequency of inspection depends on the operating environment.
• Environmental Control: Keep the drive in a clean, dry environment. If installed in a harsh area, the protective enclosure will help shield it from contaminants.
• Filter Maintenance: If external filters are used to meet EMC regulations (EN55011, Class A and B), inspect and clean or replace them as needed to maintain performance.

The PowerFlex 40P includes features like a removable MOV for ungrounded distribution systems, pre-charge limits, and integral brake transistors for integrated braking capability. These contribute to the drive's robustness and help protect the motor and the drive itself.

The Challenge: Fine-Tuned Motor Control in Tight Spaces

Imagine a packaging line where space is at a premium, and you need precise speed control for a conveyor motor. You also need the flexibility to mount the drive in a way that suits your cabinet layout, not the other way around. The Allen-Bradley 22D-D4P0F104 from the PowerFlex 40P series is engineered to solve exactly this kind of problem. It delivers reliable, adjustable frequency control in a compact package, making it a smart choice for both OEMs and end users who value efficiency and adaptability.

Compatibility & Integration

The 22D-D4P0F104 is part of the PowerFlex 40P series, which offers power ratings from 0.4 to 11 kilowatts (0.5 to 15 Horsepower) and voltage ranges of 240 Volts, 480 Volts, and 600 Volts. This makes it easy to standardize on a single drive family across different motor sizes and voltages. The drive's user interface includes online and offline programming, an on-screen control bar, step logic setup, and the ability to compare present parameters with factory defaults. This simplifies setup and troubleshooting, reducing downtime.

Selection Guide & Purchasing Advice

When selecting a drive, consider the motor's full-load amperage, voltage, and horsepower. The 22D-D4P0F104 is rated for 4.0 A, 480 Volts AC, and 2 Horsepower, making it suitable for a range of three-phase motors. Always verify that the drive's ratings match your motor's requirements.

For a reliable source of this Allen-Bradley drive, AutoDCSTech offers the 22D-D4P0F104. As an industrial automation parts supplier, AutoDCSTech can help you find the right components for your application. Please verify current lifecycle status and availability with AutoDCSTech before ordering.
