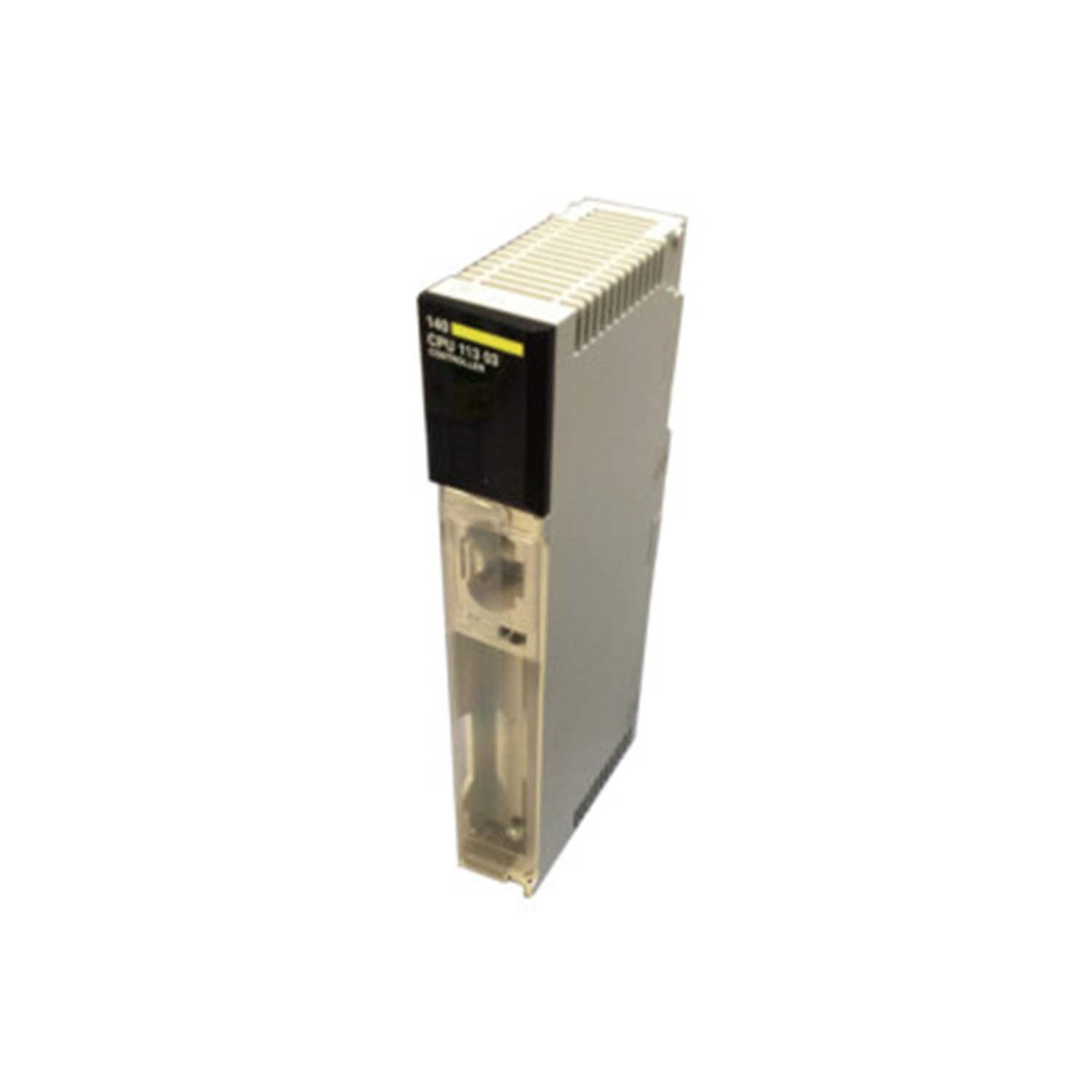

Product Overview
The 140CPU11303C processor module is part of the Modicon Quantum series from Schneider Electric. It is designed as a central processing unit for industrial automation systems, leveraging the reliable 80186 processor architecture. This module handles logic execution, data processing, and communication tasks in demanding environments.
Technical Specifications Breakdown
Key parameters for the 140CPU11303C are listed below for quick reference:
| Feature | Specification |
|---|---|
| Processor Type | 80186 |
| Clock Frequency | 20 MHz |
| Internal RAM | 368 KB |
| Watchdog Timer | 250 ms |
| I/O Words (Local Max) | 64 I/64 O |
| I/O Words (Remote) | 64 I/64 O |
| I/O Words (Distributed) | 30 I/32 O |
| I/O Words per Network (Distributed) | 500 I/500 O |
| Number of Remote Drops | 31 |
| Number of Networks | 3 distributed, 2 remote |
| Battery Type | Lithium 7 µA 210 µA |
| Battery Capacity | 1.2 Ah |
| Battery Life | 10 years |
| Number of Ports | 1 Modbus Plus, 1 Modbus RS232 |
| Communication Module Processor Capacity | 2 NOM, NOE, CR, NMS |
Industry Applications
This processor module is well-suited for medium-scale automation systems requiring distributed control. For example, in manufacturing lines, it can manage up to 500 I/O words per distributed network, enabling coordinated control of multiple stations. In water treatment facilities, the 31 remote drops allow monitoring of pumps and valves across large areas. The Modbus Plus and RS232 ports facilitate integration with existing SCADA systems.
Installation & Setup Guidance
When installing the 140CPU11303C, ensure the bus current requirement of 790 mA is met by the power supply. Mount the module in a standard Quantum rack. Connect the Modbus RS232 port for programming via Concept or ProWORX 32 software. The built-in watchdog timer (250 ms) helps detect system hangs; configure it according to your application cycle time.
Maintenance & Reliability
The lithium battery with 1.2 Ah capacity provides up to 10 years of backup, preserving program memory during power loss. The module operates reliably in ambient temperatures from 0 to 60°C and can be stored between -40 and 85°C. The conformal coating (Humiseal 1A33) protects against moisture and contaminants. Periodically inspect the battery voltage and replace it before the end of its service life.
Compatibility & Integration
This processor supports up to two communication modules (NOM, NOE, CR, NMS) for network expansion. It works seamlessly with Modbus Plus and Modbus RS232 devices. For distributed I/O, the module can handle up to 500 I/O words per network, making it compatible with remote I/O drops and third-party Modbus equipment.
Selection Guide & Purchasing Advice
When selecting a processor for your Quantum system, consider the I/O count and network topology. The 140CPU11303C is ideal for applications needing up to 64 local I/O words and 500 distributed I/O words per network. For higher performance, consider newer processors. Contact SpareTechPLC to verify current lifecycle status and availability before ordering.
Troubleshooting & Common Issues
If the module fails to communicate, check the Modbus cable connections and port settings. A watchdog timeout may indicate a software loop or hardware fault; review the logic for infinite loops. Battery low alarms suggest replacement is needed. Always power down before removing or inserting the module.
