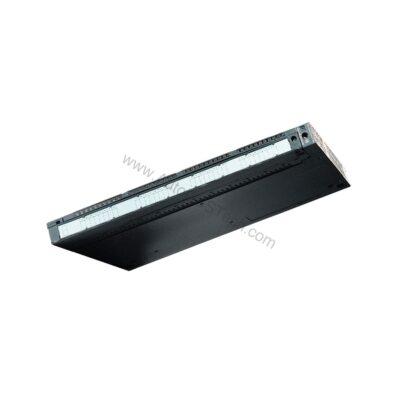

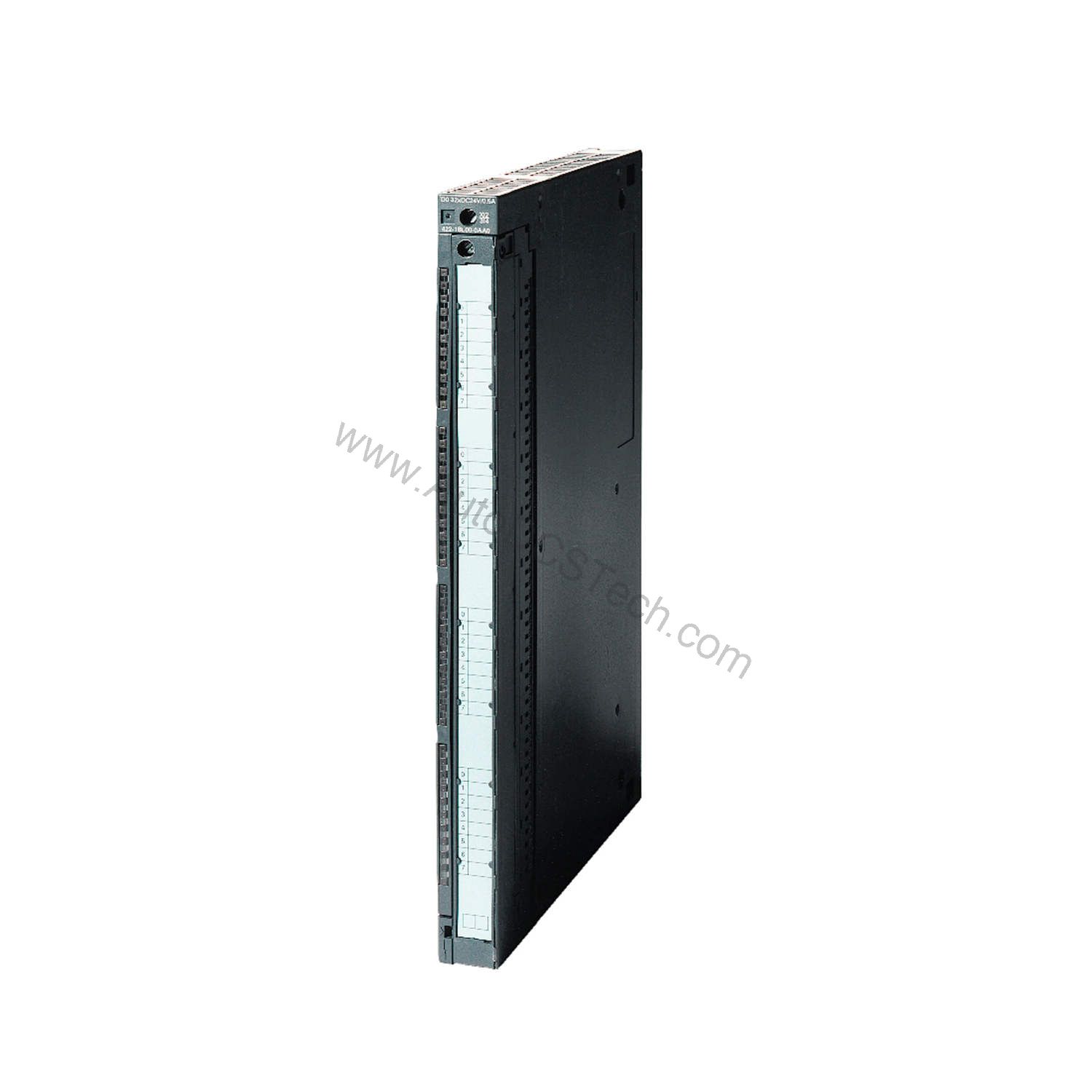

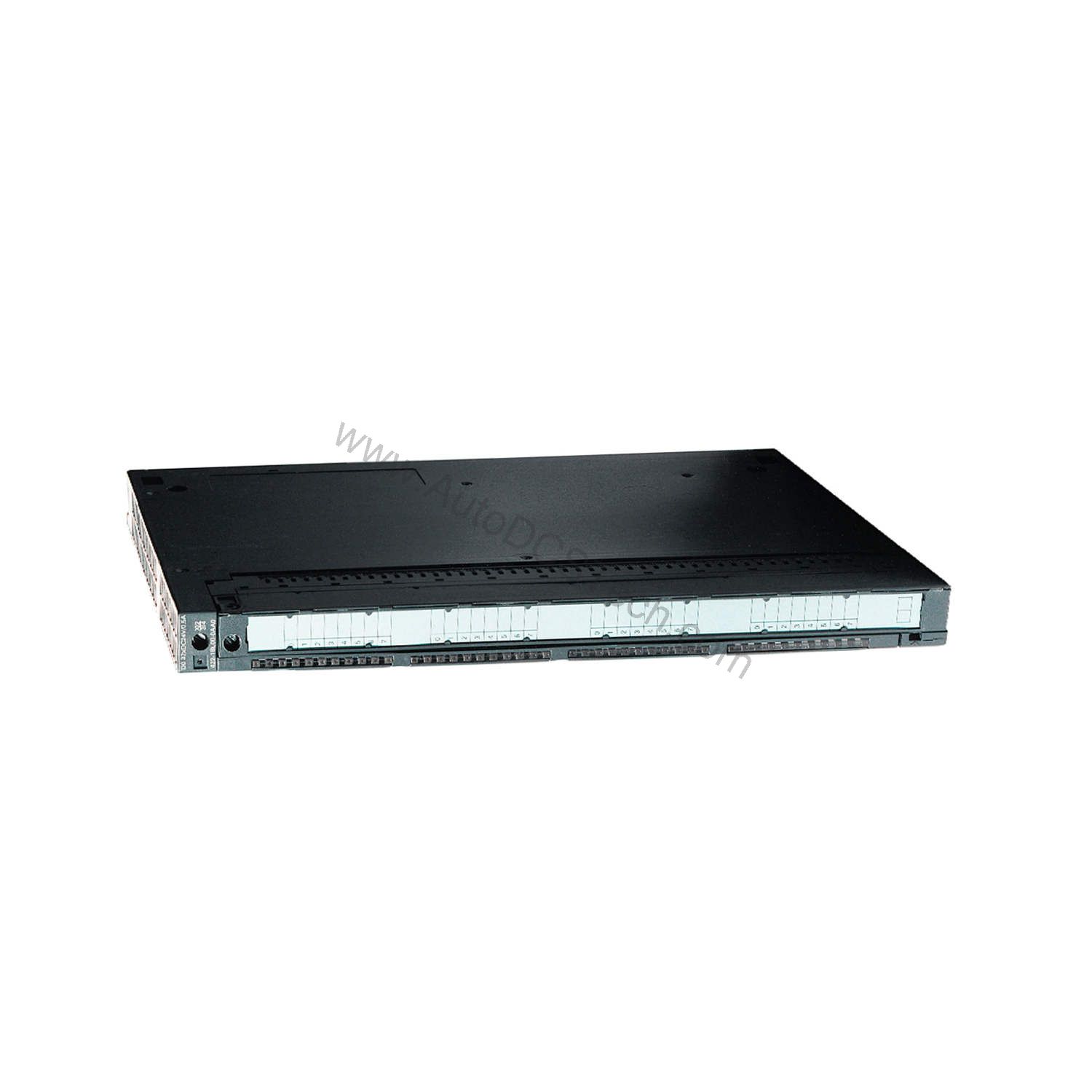

6ES7422-1BL00-0AA0 32-Channel Digital Output Module

Product Overview: Siemens 6ES7422-1BL00-0AA0 Digital Output Module

This SIMATIC S7-400 SM 422 module provides 32 isolated digital outputs, each rated at 24 V DC and 0.5 A. Designed for demanding industrial environments, it ensures precise switching with minimal power loss.

With a compact 25 mm width and a robust design, this module fits into existing S7-400 racks. Its isolated channel groups and short-circuit protection make it a dependable choice for controlling actuators, relays, and lamp loads.

Key Features & Technical Specifications

The 6ES7422-1BL00-0AA0 is engineered for performance. Below are its core specifications, directly from the manufacturer:

• Outputs: 32 digital outputs, isolated in groups of 32
• Load voltage: 24 V DC (range 20.4 V to 28.8 V)
• Output current: 0.5 A rated per channel (max 0.6 A)
• Short-circuit protection: Yes, clocked electronically (response 0.7 A to 1.5 A)
• Power loss: 4 W typical
• Switching frequency: 100 Hz resistive, 0.5 Hz inductive, 10 Hz lamp load
• Dimensions: 25 mm x 290 mm x 210 mm; weight approx. 600 g

One standout feature is the clocked electronic short-circuit protection, which helps prevent damage to both the module and connected loads. Additionally, the inductive shutdown voltage is limited to -27 V, protecting outputs from voltage spikes.

Applications & Use Cases

Typical uses include controlling solenoid valves, motor contactors, and indicator lamps in manufacturing lines. Its 32-channel density reduces rack space requirements, simplifying cabinet design.

For example, in a packaging machine, the module can manage multiple pneumatic actuators simultaneously, with each output providing up to 0.5 A. The isolated groups allow different load circuits to be powered separately, enhancing system flexibility and safety.

Installation & Setup

Installing the 6ES7422-1BL00-0AA0 is straightforward. Simply insert the module into a free slot on the S7-400 rack. Ensure the backplane bus connector is properly seated. Connect the load voltage L+ (24 V DC) to the module's terminal block, observing the permissible range of 20.4 V to 28.8 V.

For wiring, use shielded cables up to 1000 m or unshielded up to 600 m. Each output can drive loads from 48 Ω to 4 kΩ. When connecting inductive loads, consider using external suppression diodes to minimize voltage transients, although the module already limits inductive shutdown voltage.

Maintenance & Reliability

Routine maintenance is minimal. Periodically inspect the module for dust accumulation and ensure proper ventilation. Verify that the load voltage remains within the specified range. The module's electronic short-circuit protection reduces the risk of damage, but it is still wise to check for loose connections during scheduled downtime.

Given its 4 W typical power loss, the module operates efficiently, contributing to lower energy costs over its service life. The isolation tested at 500 V AC/707 V DC ensures robust performance in industrial environments.

Compatibility & Integration

This module is part of the Siemens SIMATIC S7-400 family, ensuring seamless integration with S7-400 CPUs and other SM modules. It communicates via the backplane bus, drawing a maximum of 200 mA from the 5 V DC bus. No additional communication protocols are required for basic operation.

For advanced diagnostics, note that this module does not include a diagnostics function. If you need diagnostics, consider other SM 422 variants. However, for straightforward digital output control, this module provides a cost-effective solution.

Buyer's Guide: Is This Module Right for You?

When evaluating the 6ES7422-1BL00-0AA0, consider your output count and load requirements. With 32 outputs at 0.5 A each, it suits applications with moderate current needs. The total current per group is 4 A at 40 °C and 2 A at 60 °C, so plan your load distribution accordingly.

If you need higher current per channel, look for modules with 2 A outputs. If you require diagnostics, explore other models. But for dense, reliable digital output in a compact footprint, this module is an choice.

Product Support & Availability

The 6ES7422-1BL00-0AA0 is available from AutoDCSTech. Contact us for current pricing and lead times. We are an industrial automation parts supplier, ready to assist with your S7-400 needs.
