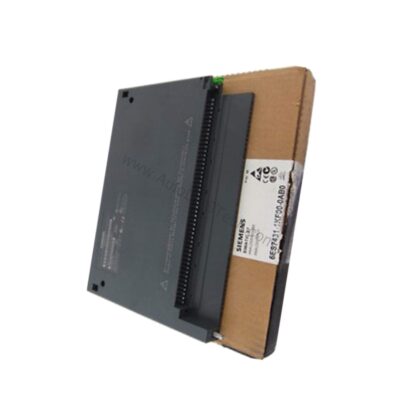

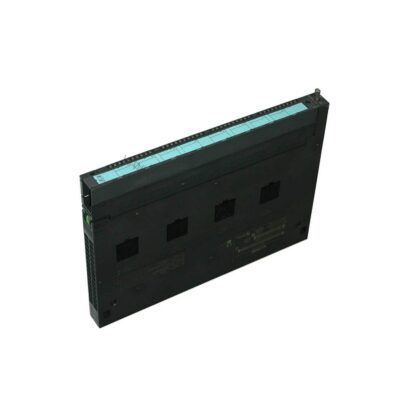

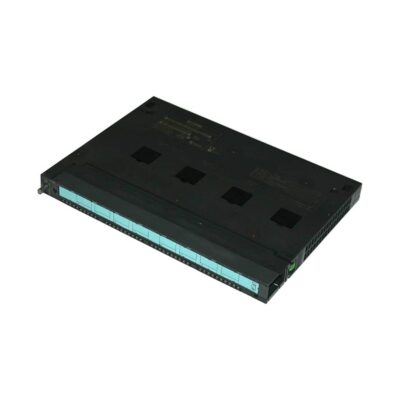

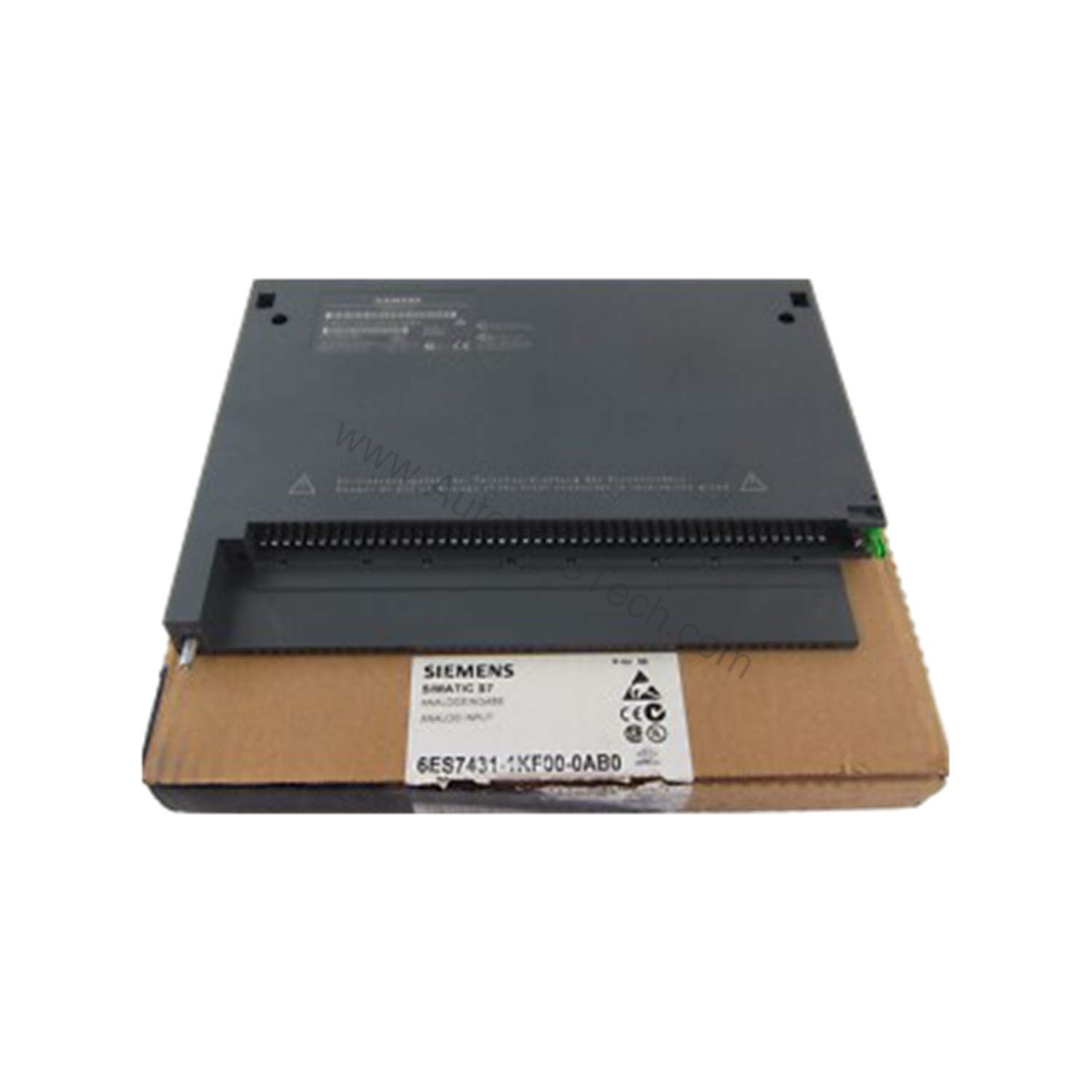

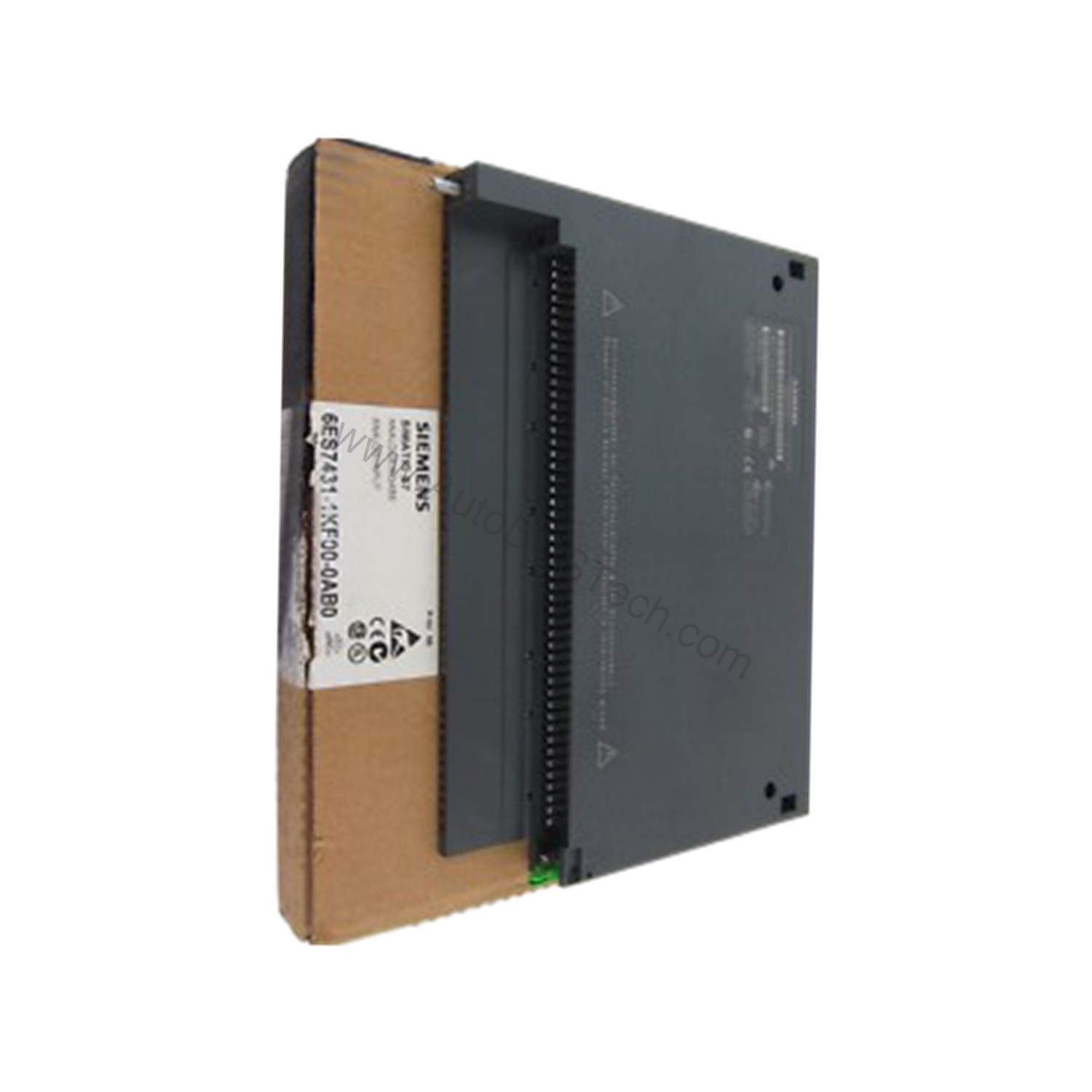

6ES7431-1KF10-0AB0 8 AI Analog Input Module

6ES7431-1KF10-0AB0 Analog Input Module Overview

When your S7-400 system demands precise and reliable analog signal acquisition, the Siemens 6ES7431-1KF10-0AB0 stands ready. This SIMATIC S7-400 analog input module SM 431 provides eight isolated analog inputs with 14-bit resolution, supporting voltage, current, resistance, thermocouple, and Pt100 signals. Its robust design ensures accurate measurement even in demanding industrial environments.

With a rated load voltage of 24 V DC for supplying 2-wire transmitters and reverse polarity protection, this module simplifies field wiring. The module draws a maximum of 200 mA from the load voltage and 600 mA from the backplane bus, ensuring stable operation. Its typical power loss is just 3.5 W, contributing to energy efficiency.

Key Features & Technical Specifications

• Eight analog inputs for voltage or current measurement, with four available for resistance measurement.
• 14-bit resolution with overrange (16-bit with activated filtering) for high measurement accuracy.
• Wide input range support: voltages from ±80 mV to ±10 V, currents 0-20 mA and 4-20 mA, and thermocouple types B, E, J, K, L, N, R, S, T, U.
• Resistance thermometer support for Ni 100, Ni 1000, Pt 100, Pt 1000, Pt 10000, Pt 200, and Pt 500.
• Resistance measurement ranges from 0-48 ohms to 0-6000 ohms (usable up to 5000 ohms).
• Input resistance of 1 MΩ for voltage and thermocouple ranges, and 50 Ω for current ranges.
• Isolation tested at 2120 V DC between bus and L+/M, ensuring robust electrical separation.
• Compact dimensions: 25 mm width, 290 mm height, 210 mm depth, weighing approximately 500 g.

One standout feature is the module's ability to handle a wide variety of sensor types without additional signal conditioners. For example, the constant measurement current for resistance-type transmitters is typically 1.67 mA, which minimizes self-heating and preserves measurement accuracy. This versatility reduces inventory complexity and simplifies system design.

Applications & Use Cases

In a typical chemical plant, it can acquire temperature readings from thermocouples and resistance temperature detectors (RTDs) with high precision. Its support for both 2-wire and 4-wire transmitters makes it suitable for pressure and flow measurement loops. The module's isolated inputs prevent ground loops that often plague multi-sensor installations, ensuring clean data for your PLC.

For example, in a packaging line, the module can monitor motor currents and temperature sensors simultaneously, providing real-time data for predictive maintenance. Its ability to measure resistance with two-, three-, or four-wire connections allows flexible wiring based on accuracy requirements. This adaptability makes it a valuable asset in both new installations and retrofits.

Installation & Setup

Mounting the 6ES7431-1KF10-0AB0 is straightforward: simply insert it into a free slot of your S7-400 rack. Ensure the backplane bus connector is properly seated to guarantee communication with the CPU. For 2-wire transmitters, connect the load voltage L+ (24 V DC) to power them; the module provides reverse polarity protection for safety.

When wiring analog inputs, use shielded cables to minimize electromagnetic interference. The maximum shielded cable length is 200 m, but reduce this to 50 m when using thermocouples or input ranges ≤80 mV. For resistance measurements, choose the appropriate connection method (2-, 3-, or 4-wire) based on your accuracy needs; 4-wire connections offer the best precision by eliminating lead resistance errors.

Maintenance & Reliability

Routine maintenance for the 6ES7431-1KF10-0AB0 is minimal due to its solid-state design. However, periodic inspection is recommended to ensure all connections remain tight and free from corrosion. Check that the module's ventilation slots are unobstructed to maintain proper cooling, as the typical power loss is 3.5 W.

The module's temperature error is only ±0.004 %/K relative to the input range, ensuring stable performance across varying ambient temperatures. Its operational error limits in the overall temperature range are tight: ±0.38 % for voltage inputs, ±0.35 % for current, and ±0.5 % for resistance and RTD measurements. This reliability reduces unplanned downtime and lowers total cost of ownership.

Compatibility & Integration

The 6ES7431-1KF10-0AB0 is designed for the Siemens S7-400 PLC family. It communicates via the backplane bus, drawing a maximum of 600 mA from the 5 V DC bus. The module supports parameterizable integration time and interference frequency suppression (50/60 Hz), allowing you to optimize for your local power grid.

It is compatible with a wide range of field sensors, including thermocouples (types B, E, J, K, L, N, R, S, T, U), RTDs (Pt100, Pt200, Pt500, Pt1000, Ni100, Ni1000), and resistance-based sensors. This broad compatibility simplifies integration into existing systems and reduces the need for additional signal converters.

Troubleshooting & Common Issues

One common issue with analog input modules is incorrect readings due to wiring errors. For 2-wire transmitters, ensure the load voltage L+ is connected and that the transmitter's polarity is correct. For resistance measurements, use 4-wire connections to eliminate lead resistance errors; the module measures line resistance in 2-wire mode, which can affect accuracy.

If you experience noisy signals, verify that shielded cables are grounded properly and that the cable length does not exceed the specified maximum. For thermocouple inputs, ensure cold junction compensation is configured correctly; the module supports external compensation with Pt100 and compensation sockets. If problems persist, consult the official Siemens documentation or contact AutoDCSTech for technical support.

Product Support & Availability

The Siemens 6ES7431-1KF10-0AB0 is available from AutoDCSTech. Please verify current lifecycle status and availability before ordering. Our team can assist with technical questions and ensure you receive the right part for your application.
