6ES7422-1HH00-0AA0 16 DO Relay Output Module

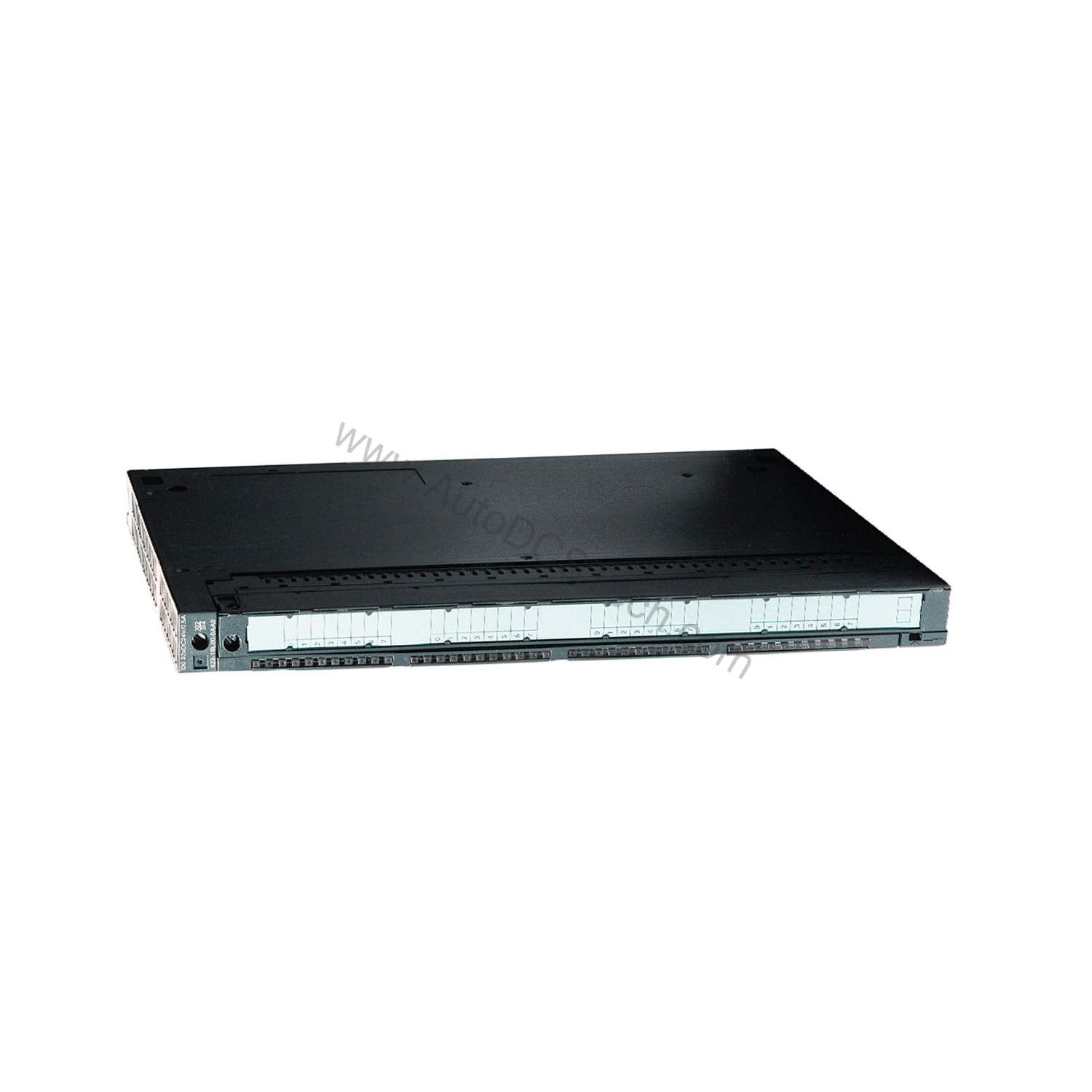

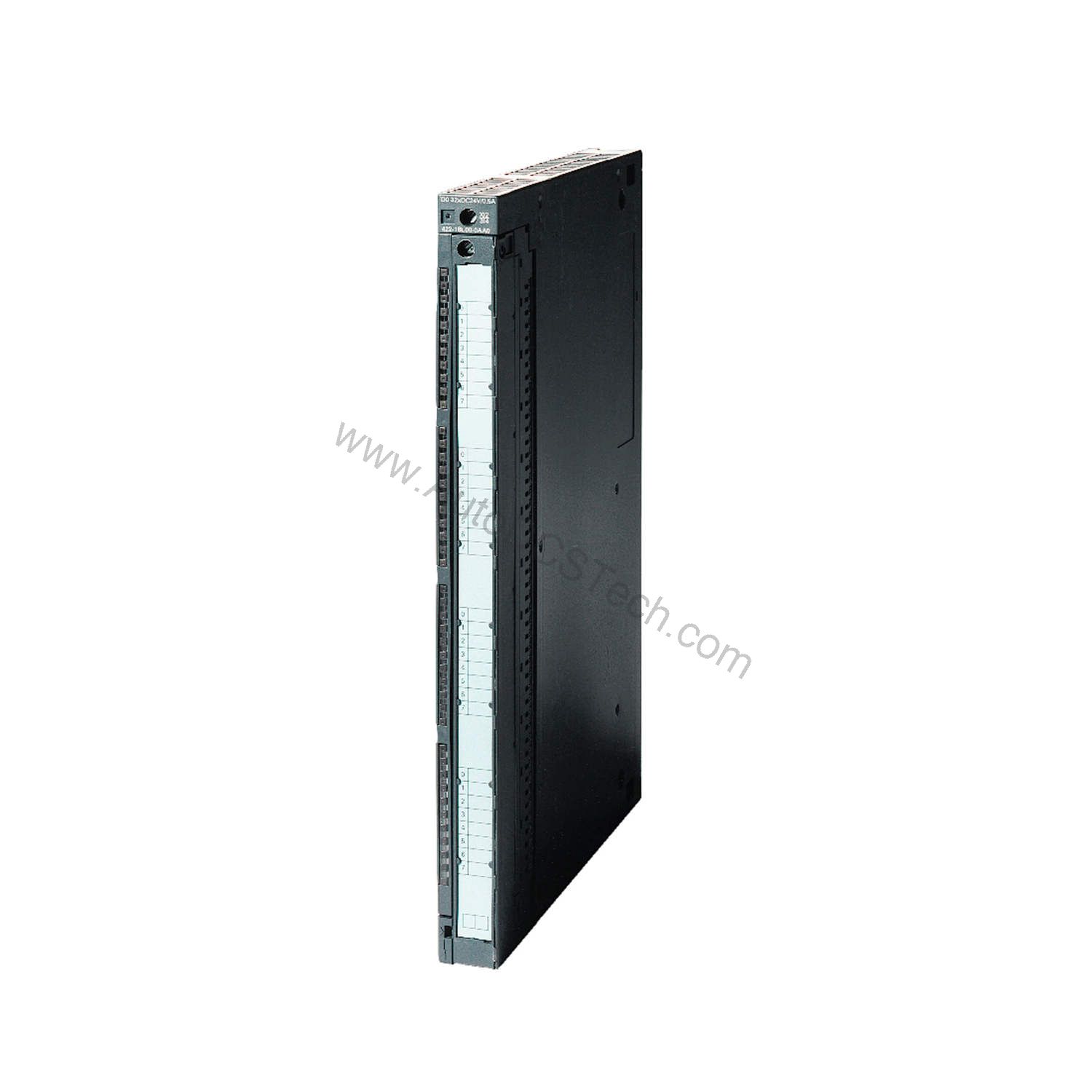

Introduction to the Siemens 6ES7422-1HH00-0AA0

When your S7-400 system must switch high-current AC or DC loads, the 6ES7422-1HH00-0AA0 from Siemens provides a robust solution. This SIMATIC S7-400 digital output module SM 422 offers 16 isolated relay outputs, each capable of handling up to 5 A. Designed for demanding industrial environments, it ensures dependable performance across a wide range of applications.

Key Features and Technical Specifications

• 16 digital outputs with relay switching, providing galvanic isolation between channels.
• Rated load voltage L+ (DC) of 60 V, with a permissible range from 1 V to 60 V DC.
• Rated load voltage L1 (AC) of 230 V, with a permissible range from 2 V to 264 V AC.
• Output current for signal "1" rated at 5 A, with a minimum load current of 11 mA.
• Switching capacity of contacts up to 5 A for resistive and inductive loads (30 V DC / 230 V AC).
• Total output current per group: 10 A up to 40 °C (with fan subassembly), 5 A up to 60 °C.
• Power loss typical 4.5 W, drawing a maximum of 1 A from the 5 V DC backplane bus.

One distinctive feature is the ability to parallel two outputs for redundant control of a load, provided they share the same load voltage. This enhances system reliability in critical processes.

Applications and Use Cases

Its relay outputs can switch both AC and DC loads, making it versatile for various automation tasks. For example, in a packaging plant, the module can drive multiple solenoid valves simultaneously, ensuring precise product handling. Additionally, its ability to control NEMA size 5 motor starters makes it suitable for heavy machinery applications.

Installation and Setup

Installation is straightforward: mount the module on a standard S7-400 rail and connect it to the backplane bus. Ensure that the load voltage is within the specified ranges (1-60 V DC or 2-264 V AC) before wiring. Use shielded cables up to 1000 m or unshielded up to 600 m for output connections. Always follow the wiring diagram in the Siemens manual to avoid short circuits, as the module does not have built-in short-circuit protection.

Maintenance and Reliability

With a mechanical endurance of up to 3,000,000 operating cycles and electrical endurance of 100,000 cycles (AC-15/DC-13), this module is built for long service life. Regular inspection of relay contacts is recommended, especially in dusty or humid environments. Because the module is isolated between channels and from the backplane bus, it offers protection against voltage transients, reducing maintenance downtime.

Compatibility and Integration

The 6ES7422-1HH00-0AA0 is part of the Siemens SIMATIC S7-400 family, ensuring seamless integration with S7-400 PLCs. It communicates via the backplane bus, requiring no additional network protocols. The module supports controlling digital inputs directly, simplifying wiring in certain configurations.

Troubleshooting and Common Issues

If an output fails to energize, first check the load voltage and ensure it is within the permissible range. Verify that the minimum load current of 11 mA is met; otherwise, the relay may not switch reliably. Also, confirm that the total current per group does not exceed the rated limits—use a fan subassembly if operating above 40 °C. Since diagnostics are not available on this module, use external indicators or a multimeter to verify output status.

Product Support and Availability

The Siemens 6ES7422-1HH00-0AA0 is available from AutoDCSTech. Please verify current lifecycle status and availability before ordering. Our team can assist with technical inquiries and ensure you receive the right module for your application.
