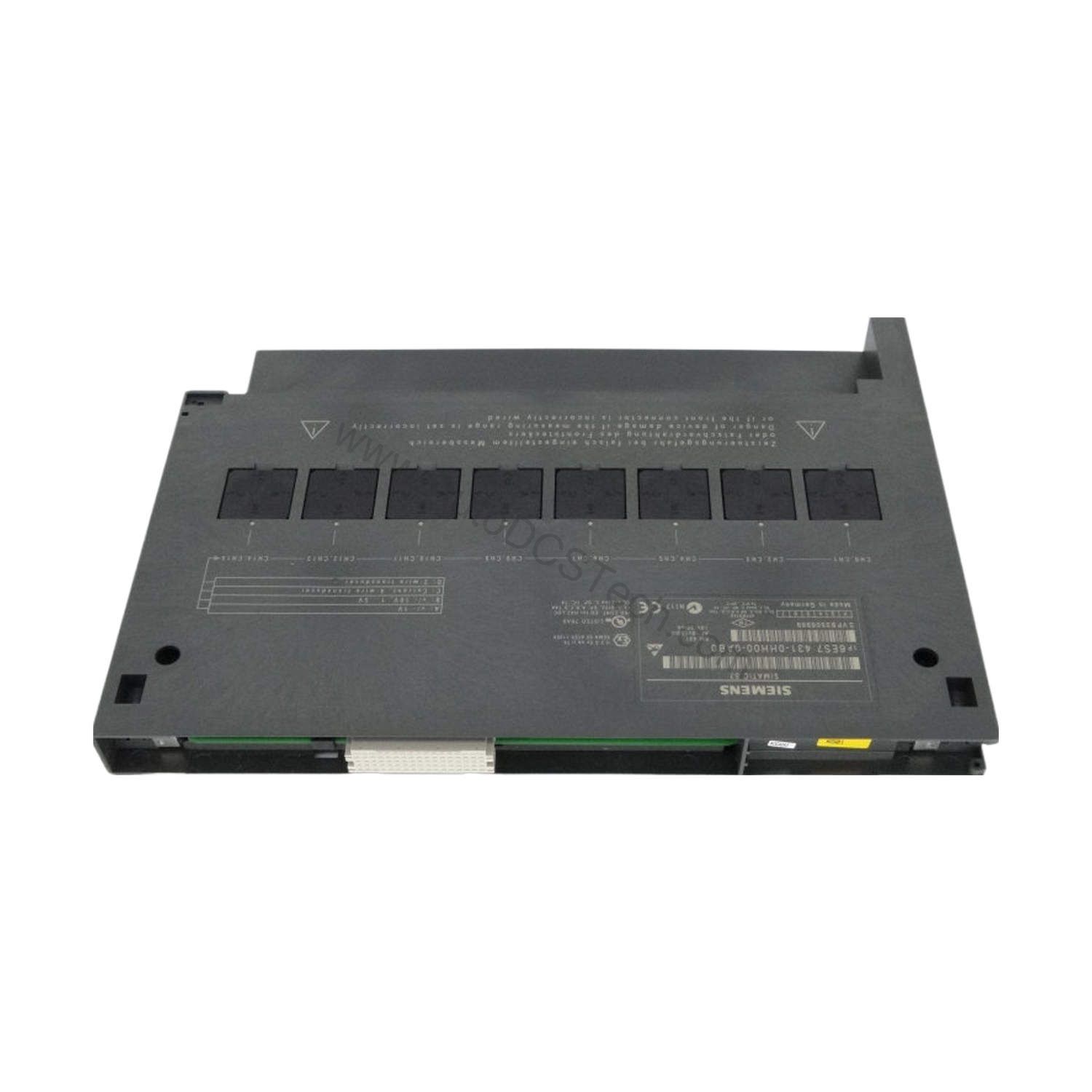

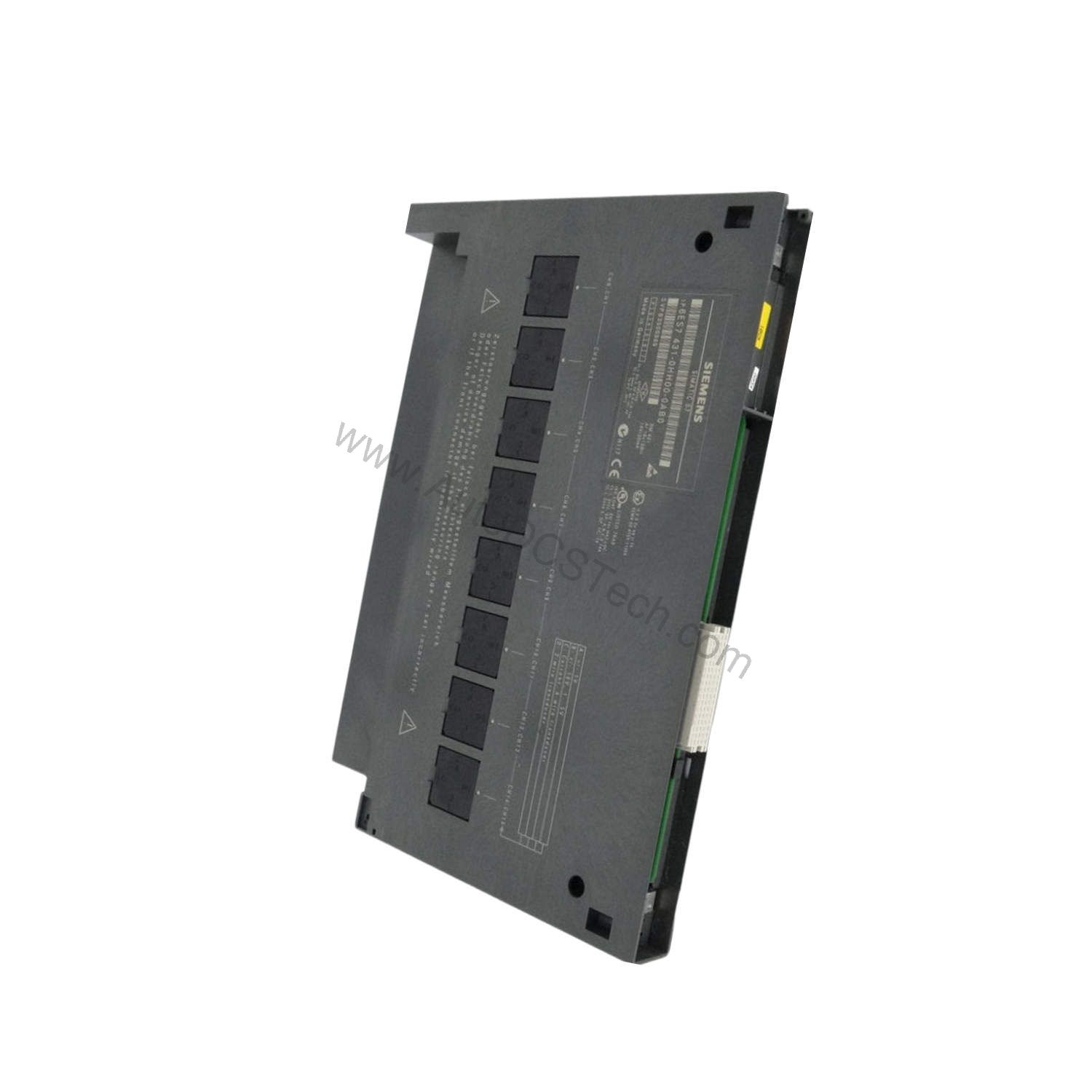

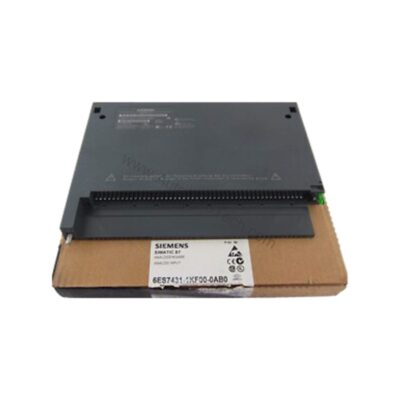

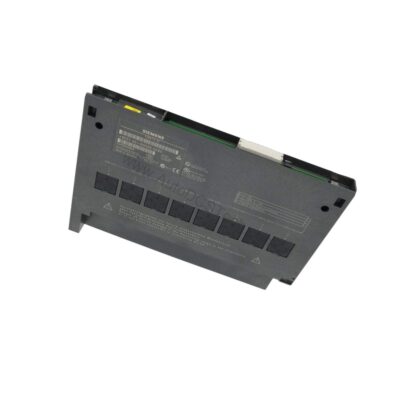

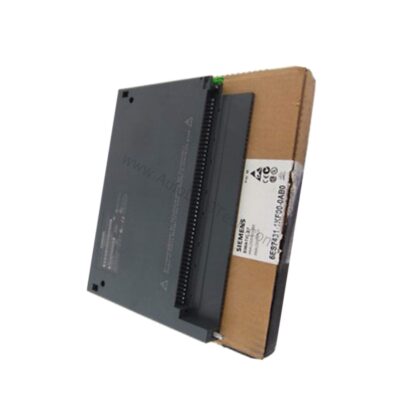

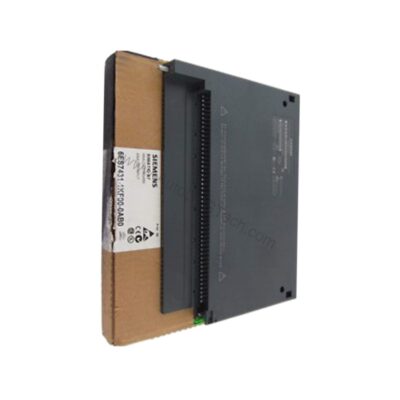

6ES7431-0HH00-0AB0 16 AI Analog Input Module

Introduction to the 6ES7431-0HH00-0AB0

When your SIMATIC S7-400 system demands reliable acquisition of multiple analog signals, the 6ES7431-0HH00-0AB0 from Siemens provides a robust solution. This SM 431 analog input module is engineered to handle up to 16 non-isolated channels, making it a versatile choice for industrial control applications.

With a 13-bit resolution and support for both voltage and current inputs, this module ensures accurate data conversion for process monitoring and control. The module's design focuses on delivering consistent performance in demanding environments.

Key Features and Technical Specifications

• 16 analog inputs for voltage or current measurement
• 13-bit resolution with sign, including overrange
• Input ranges: ±10 V, ±1 V, 1-5 V, ±20 mA, 4-20 mA
• Input resistance: 100 kΩ for ±10 V and 1-5 V, 10 MΩ for ±1 V, 50 Ω for current ranges
• Destruction limits: 20 V DC permanent, 75 V DC for 1 s (voltage); 40 mA (current)
• Conversion time: 55/65 ms basic, 20 ms for 4-20 mA
• Power loss: typ. 2 W
• Dimensions: 25 mm x 290 mm x 210 mm, weight approx. 500 g

One distinctive feature is the module's ability to handle both voltage and current inputs without isolation, which simplifies wiring in non-isolated applications. The 16 channels allow dense signal acquisition in a single slot, reducing panel space requirements.

Applications and Use Cases

In a typical manufacturing line, the 6ES7431-0HH00-0AB0 can connect to 2-wire transmitters, using the 24 V DC load voltage supply to power them directly.

For example, in a chemical plant, the module can monitor 16 different tank levels or pressures simultaneously, providing real-time data to the PLC for precise control. Its fast conversion time ensures timely updates, which is critical for closed-loop control systems.

Installation and Setup

When installing the module, ensure the backplane bus connection is secure and the module is properly seated in the S7-400 rack. The load voltage L+ (24 V DC) is only required when using 2-wire transmitters; reverse polarity protection is built-in.

For wiring, use shielded cables up to 200 meters to maintain signal integrity. Connect voltage sources to the appropriate terminals, and for current inputs, ensure the loop is closed with the correct input resistance (50 Ω).

Maintenance and Reliability

Routine inspection of the module's connections and environmental conditions can prevent common issues like loose wiring or overheating. The module's power loss of just 2 W minimizes heat generation, contributing to long-term reliability.

Regularly verify that the input signals are within the specified ranges to avoid damage. The module's destruction limits provide a safety margin, but consistent operation within rated values ensures optimal performance.

Troubleshooting Common Issues

If you encounter inaccurate readings, first check the input range configuration and ensure the signal source matches the selected range. For 4-20 mA loops, verify that the transmitter is powered correctly and the loop resistance is within limits.

If the module fails to communicate with the PLC, inspect the backplane bus connection and confirm the module is recognized by the CPU. Refer to the official Siemens documentation for detailed diagnostics.

Availability

The 6ES7431-0HH00-0AB0 is available from AutoDCSTech. Contact us for current stock and delivery options.
