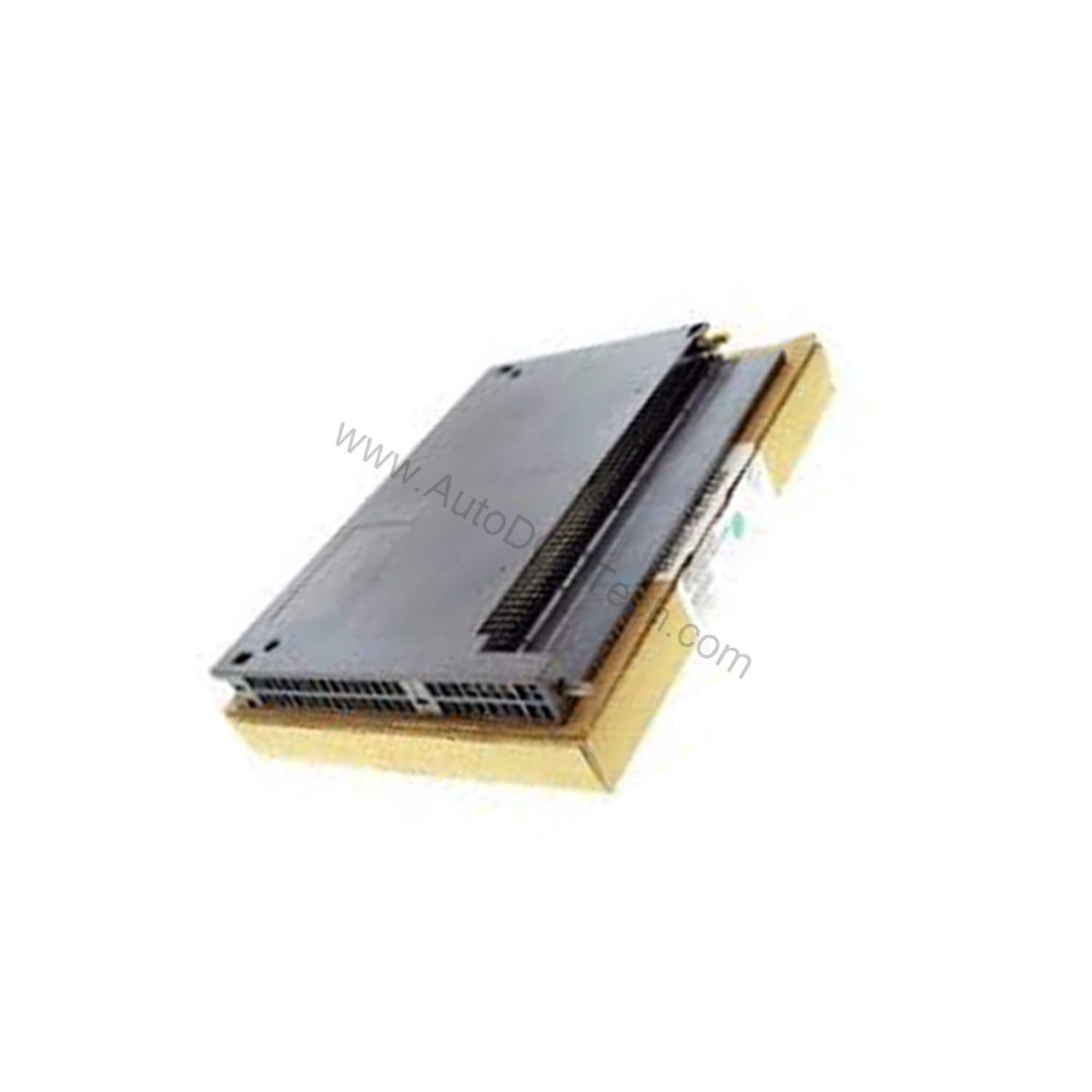

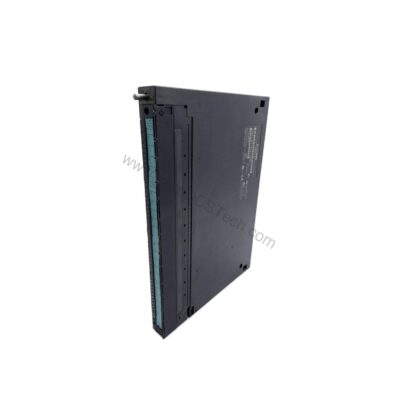

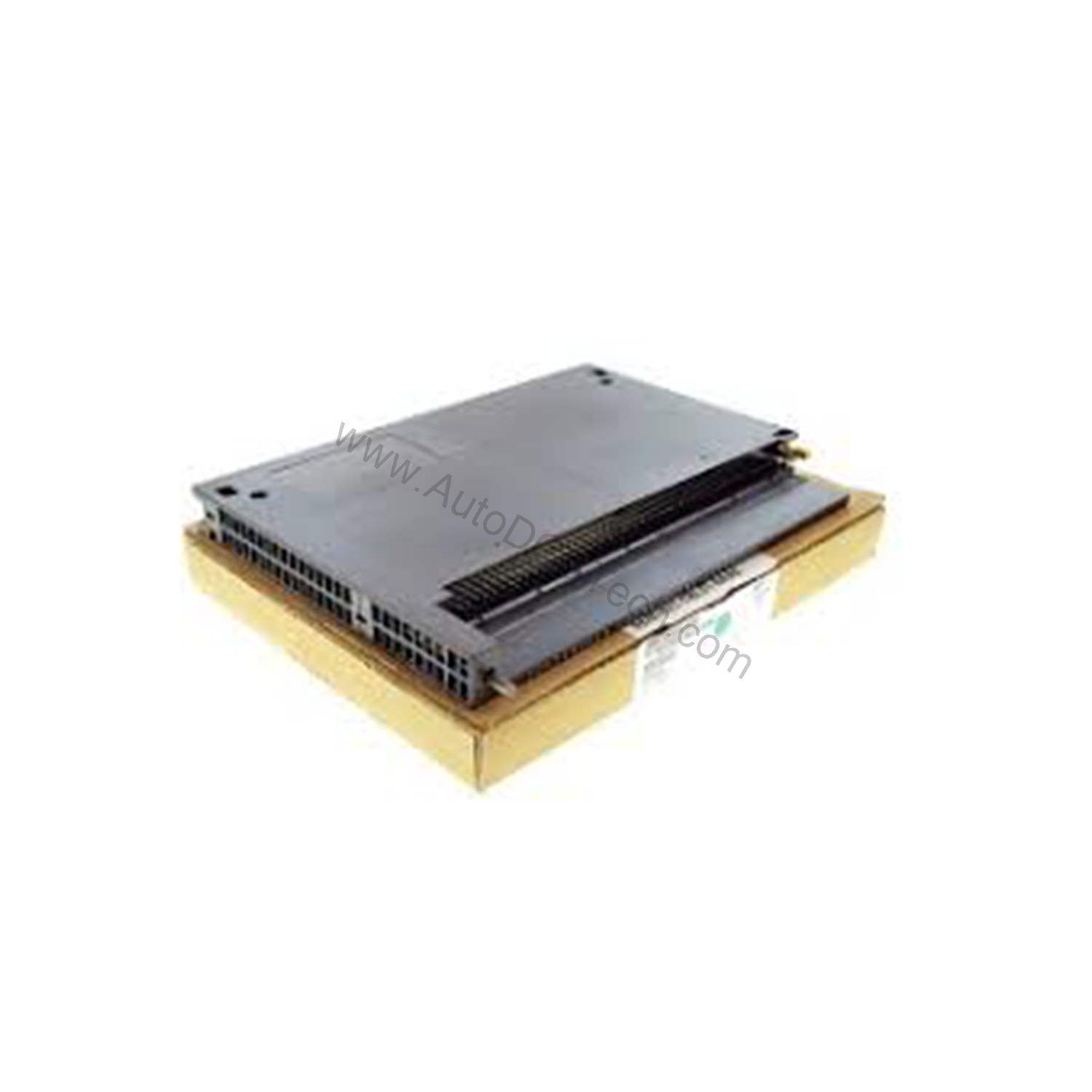

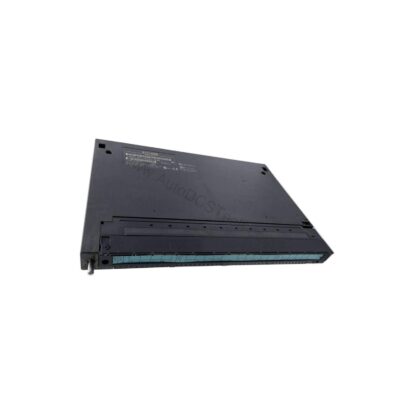

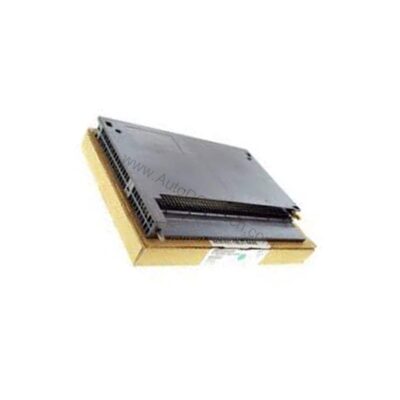

6ES7421-7DH00-0AB0 16 DI Isolated Digital Input Module

Introduction to the 6ES7421-7DH00-0AB0

Part of the Siemens SIMATIC S7-400 family, this SM 421 module provides 16 isolated digital inputs. It accepts a wide range of input voltages, from 24 V UC to 60 V UC, making it versatile for various industrial applications.

Engineers often face challenges with electrical noise, voltage fluctuations, and wire-break detection. This module addresses those issues with its robust design and diagnostic capabilities. With parameterizable alarms and hardware interrupts, you can quickly identify and respond to faults, minimizing downtime.

Key Features and Technical Specifications

The 6ES7421-7DH00-0AB0 is engineered for performance and reliability. Below are its core specifications:

• Digital Inputs: 16 isolated inputs, with all 16 simultaneously controllable.
• Input Voltage Range: 24 V UC to 60 V UC (AC/DC), with signal "1" detection from 15 to 72 V DC or 15 to 60 V AC.
• Signal "0" Threshold: -6 to +6 V DC or 0 to 5 V AC.
• Input Current: Typically 4 mA for signal "1", with a range of 4 to 10 mA.
• Input Delay: Parameterizable, with rated value of 0.5 ms; options include 0.5 / 3 / 10 / 20 ms.
• Wire-Break Monitoring: Fixed current limitation from 18 kΩ to 56 kΩ, depending on rated voltage.
• Cable Length: Shielded up to 1000 m; unshielded up to 600 m (or 100 m for 0.5 ms delay).
• Diagnostics: Parameterizable diagnostic alarm, hardware interrupt, and wire-break detection (I > 0.7 mA).
• Isolation: Between channels and backplane bus, tested with 1500 V AC.
• Power Loss: Typ. 8 W (at 60 V DC), 6.5 W (48 V DC), 3.5 W (24 V DC).
• Backplane Bus Current: 5 V DC, max. 150 mA.

One distinctive feature is the ability to monitor wire-break conditions with a fixed current limitation, ensuring early detection of field wiring faults. This helps prevent unexpected process interruptions.

Applications and Use Cases

The 6ES7421-7DH00-0AB0 is suitable for a wide range of industrial automation tasks. For instance, in a manufacturing plant, you can use it to monitor limit switches, push buttons, and proximity sensors. The isolated inputs protect the backplane from voltage spikes, enhancing system reliability.

Because the module supports both AC and DC inputs, it simplifies inventory and reduces the need for multiple module types. This flexibility is particularly valuable in retrofit projects where existing field wiring may vary.

Installation and Setup

Installing the 6ES7421-7DH00-0AB0 is straightforward. It mounts on a standard S7-400 rail. Ensure the module is properly seated and locked. For wiring, use shielded cables for lengths up to 1000 m; for unshielded cables, keep lengths within 600 m (or 100 m for 0.5 ms delay).

Before powering up, verify that the input voltage is within the rated range (24 V UC to 60 V UC). The module's input delay is parameterizable via the S7-400 configuration software. Set the delay according to your process requirements to avoid false triggering.

Maintenance and Reliability

Routine maintenance of the 6ES7421-7DH00-0AB0 is minimal. Periodically inspect the module for dust accumulation and ensure proper ventilation. Check the status LEDs to confirm normal operation. The green LED indicates the status of each digital input.

Because the module includes wire-break diagnostics, you can detect open circuits in field wiring early. This proactive approach reduces unplanned downtime and extends the life of your system. Always follow the manufacturer's manual for detailed maintenance procedures.

Troubleshooting Common Issues

If you encounter issues with the 6ES7421-7DH00-0AB0, consider these common scenarios:

• Input not detected: Check the input voltage. For signal "1", it must be between 15 and 72 V DC (or 15 to 60 V AC). Ensure the signal "0" level is within -6 to +6 V DC.
• Wire-break alarm: This indicates a current below 0.7 mA. Inspect the wiring for breaks or loose connections. Verify the wire-break monitoring resistance settings match your rated voltage.
• No communication: Ensure the module is properly seated and the backplane bus current (max 150 mA) is not exceeded.

If problems persist, consult the official Siemens documentation or contact AutoDCSTech for technical support.

Compatibility and Integration

The 6ES7421-7DH00-0AB0 is designed for the SIMATIC S7-400 programmable logic controller (PLC) system. The module supports 2-wire sensors with a permissible quiescent current of up to 0.5 mA, making it compatible with many proximity switches.

For advanced diagnostics, the module provides diagnostic information readable via the PLC program. This allows for condition monitoring and predictive maintenance strategies.

Product Support and Availability

The 6ES7421-7DH00-0AB0 is available from AutoDCSTech. We supply genuine Siemens parts to keep your automation running. Contact us for current stock and delivery options. Please verify lifecycle status before ordering.
