6ES7417-5HT06-0AB0 32MB CPU 417-5H PN/DP

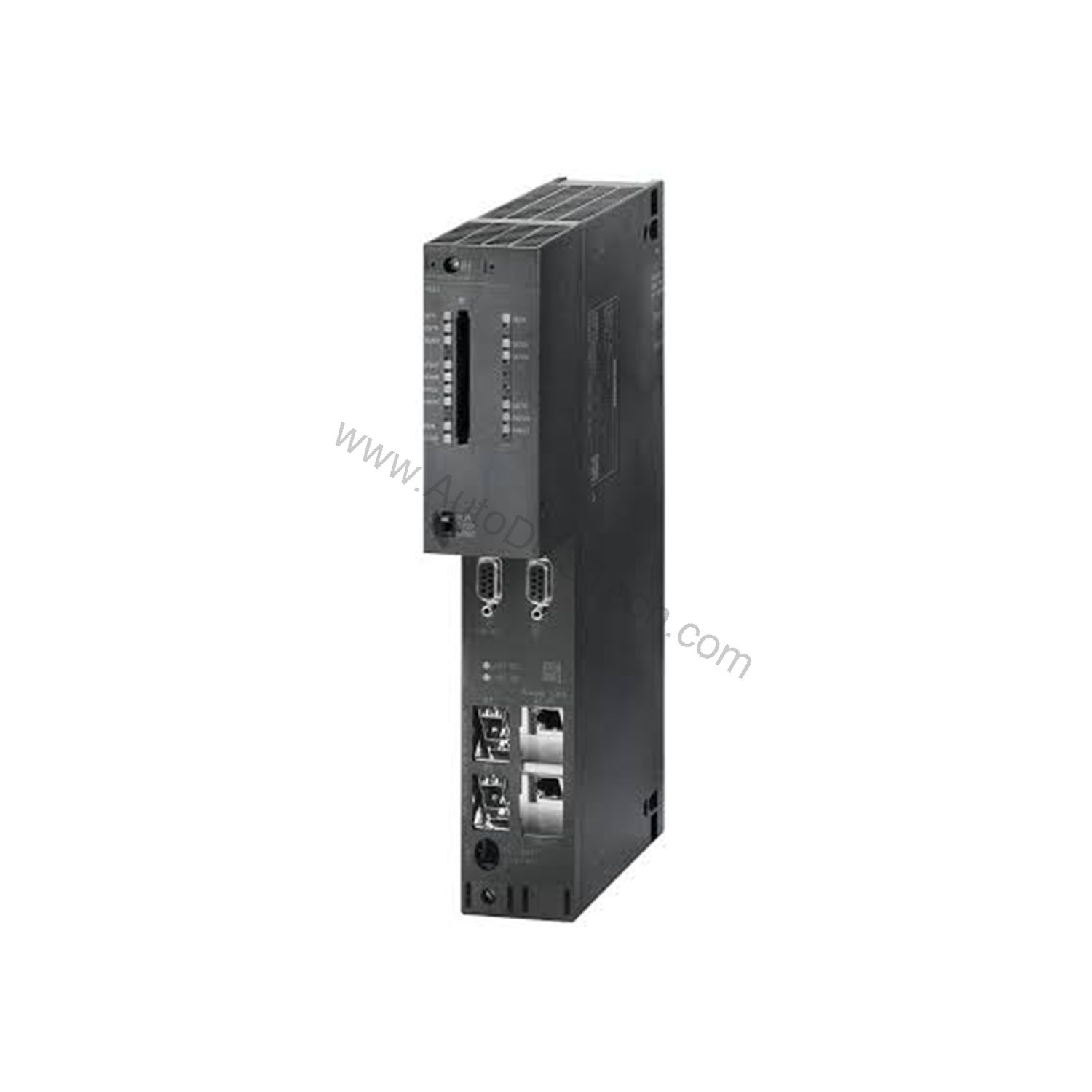

Key Specifications of the Siemens 6ES7417-5HT06-0AB0

The 6ES7417-5HT06-0AB0 is packed with features that support demanding automation tasks. Here are the critical technical parameters:

• Product type: CPU 417-5H PN/DP, firmware V6.0
• Work memory: 32 MB integrated (16 MB program, 16 MB data)
• Interfaces: 1x MPI/DP, 1x DP, 1x PROFINET (2 ports), 2x sync module slots
• Backplane bus current: 5 V DC, typ. 1.6 A, max. 1.9 A
• Power loss: typ. 7.5 W
• Processing times: 7.5 ns for bit, word, and fixed-point operations; 15 ns for floating-point
• Digital channels: 131,072 inputs and 131,072 outputs (central)
• Analog channels: 8,192 inputs and 8,192 outputs (central)
• Dimensions: 50 mm x 290 mm x 219 mm; weight approx. 995 g

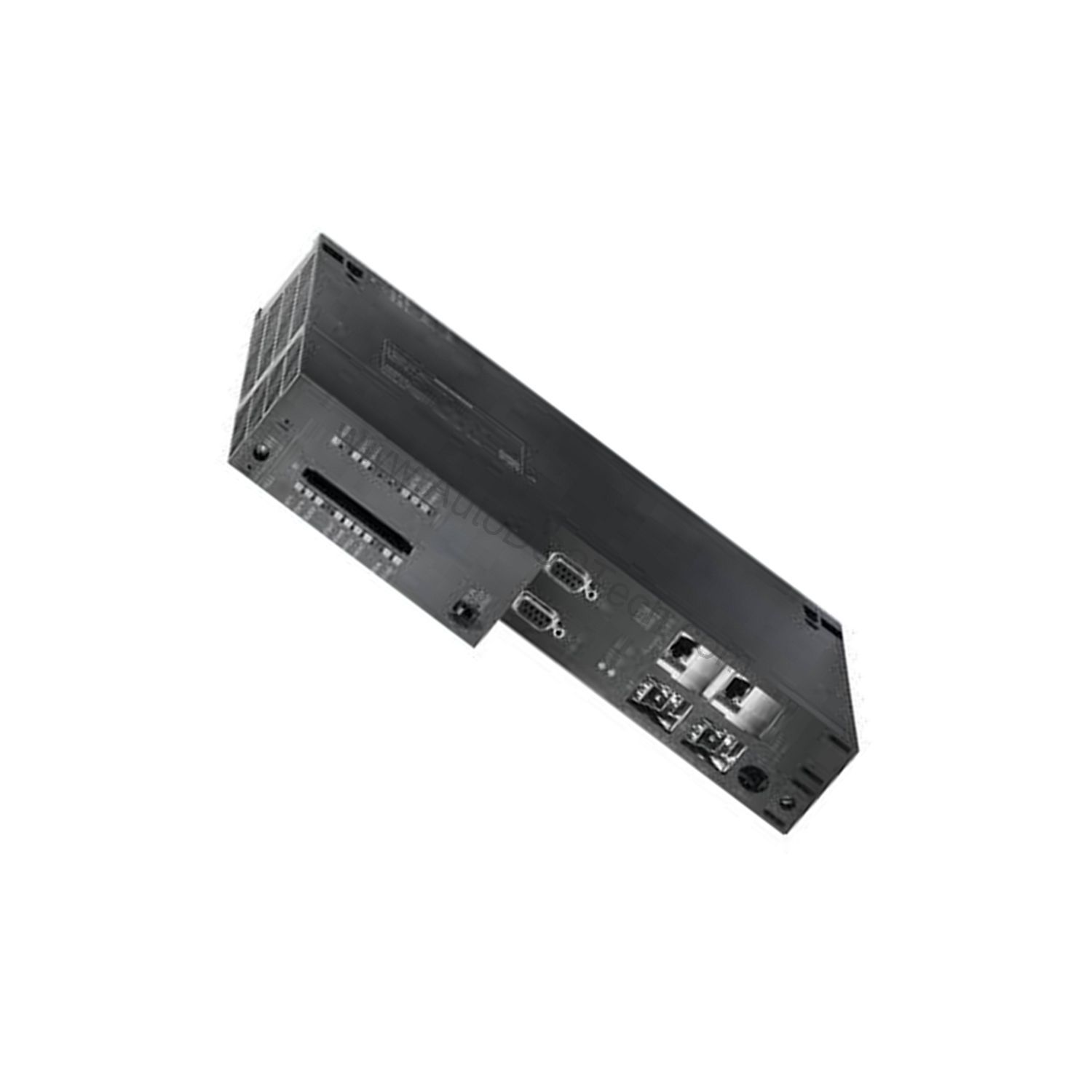

One standout feature is the integrated PROFINET interface with two RJ45 ports, supporting up to 256 IO devices and send cycles as fast as 250 µs.

Real-World Applications for the 6ES7417-5HT06-0AB0

This CPU is designed for industries where downtime is unacceptable. In power generation, for example, redundant control systems ensure that a single hardware failure does not shut down a turbine. Similarly, in chemical processing, the CPU's fault-tolerant design maintains continuous operation of critical reactors and safety interlocks.

Moreover, the CPU supports S7-400F/FH fail-safe applications, making it suitable for safety-related processes. With its high processing speed and large memory, it can handle complex regulatory control loops and batch sequencing simultaneously. The ability to connect up to 119 OPs (operator panels) allows comprehensive visualization and operator interaction.

Installation and Setup Considerations

Installing the 6ES7417-5HT06-0AB0 requires careful planning. The CPU occupies two slots in the S7-400 rack, so ensure your rack has sufficient space. It draws power from the system power supply via the backplane bus; verify that your power supply can handle the typical 1.6 A at 5 V DC plus the 150 mA at 24 V DC for each DP interface.

For redundancy, you must install two synchronization modules (6ES7960-1AA06-0XA0 or 6ES7960-1AB06-0XA0) in the dedicated fiber-optic interfaces. These modules link the two CPUs in a redundant pair. When configuring the system, use STEP 7 V5.5 SP2 with HF1 or later. Pay attention to the maximum cable lengths and ensure proper grounding to maintain EMC performance (limit class A for industrial areas).

Maintenance and Reliability Tips

To keep your CPU running reliably, follow a routine inspection schedule. Check the backup battery status periodically; the CPU supports battery backup for all data, with a typical backup current of 180 µA (up to 40°C) and a maximum of 1,000 µA. Replace the battery before it depletes to avoid losing the retentive data.

Also, monitor the diagnostic buffer, which can store up to 3,200 entries. Regularly review these entries to catch potential issues early. The CPU has an operating hours counter (16 counters) that can help track runtime for predictive maintenance. Keep the firmware updated as per Siemens recommendations, and always follow the manufacturer's manual for any service procedures.

Compatibility and Integration

The 6ES7417-5HT06-0AB0It supports PROFIBUS DP master (up to 125 slaves on the second interface) and PROFINET IO Controller (up to 256 IO devices). It also offers open IE communication via TCP/IP, UDP, and ISO-on-TCP, with up to 118 connections.

For S7 communication, the CPU acts as both client and server, with user data up to 64 kbytes per job. It also supports S5-compatible communication via CP modules. This broad protocol support ensures compatibility with a wide range of field devices and higher-level systems.

Troubleshooting Common Issues

One common issue is communication failure between redundant CPUs. First, verify that both synchronization modules are properly seated and that the fiber-optic cables are intact. Check the diagnostic buffer for sync module errors. If the PROFINET interface fails to establish connections, confirm that the IP address and subnet mask are correctly configured and that the send cycles are set to compatible values (250 µs to 512 ms).

Another issue is memory overflow. If you receive a memory error, review your program size and optimize data blocks. The CPU supports load memory expansion via FEPROM up to 64 Mbyte, so consider adding a memory card if needed. For persistent problems, consult the official Siemens documentation or contact AutoDCSTech for expert assistance.

Product Support and Availability

The 6ES7417-5HT06-0AB0 is available from AutoDCSTech. We stock genuine Siemens parts and offer fast worldwide shipping. Our team can help you verify compatibility and provide technical support. Contact us today to check availability and pricing.
