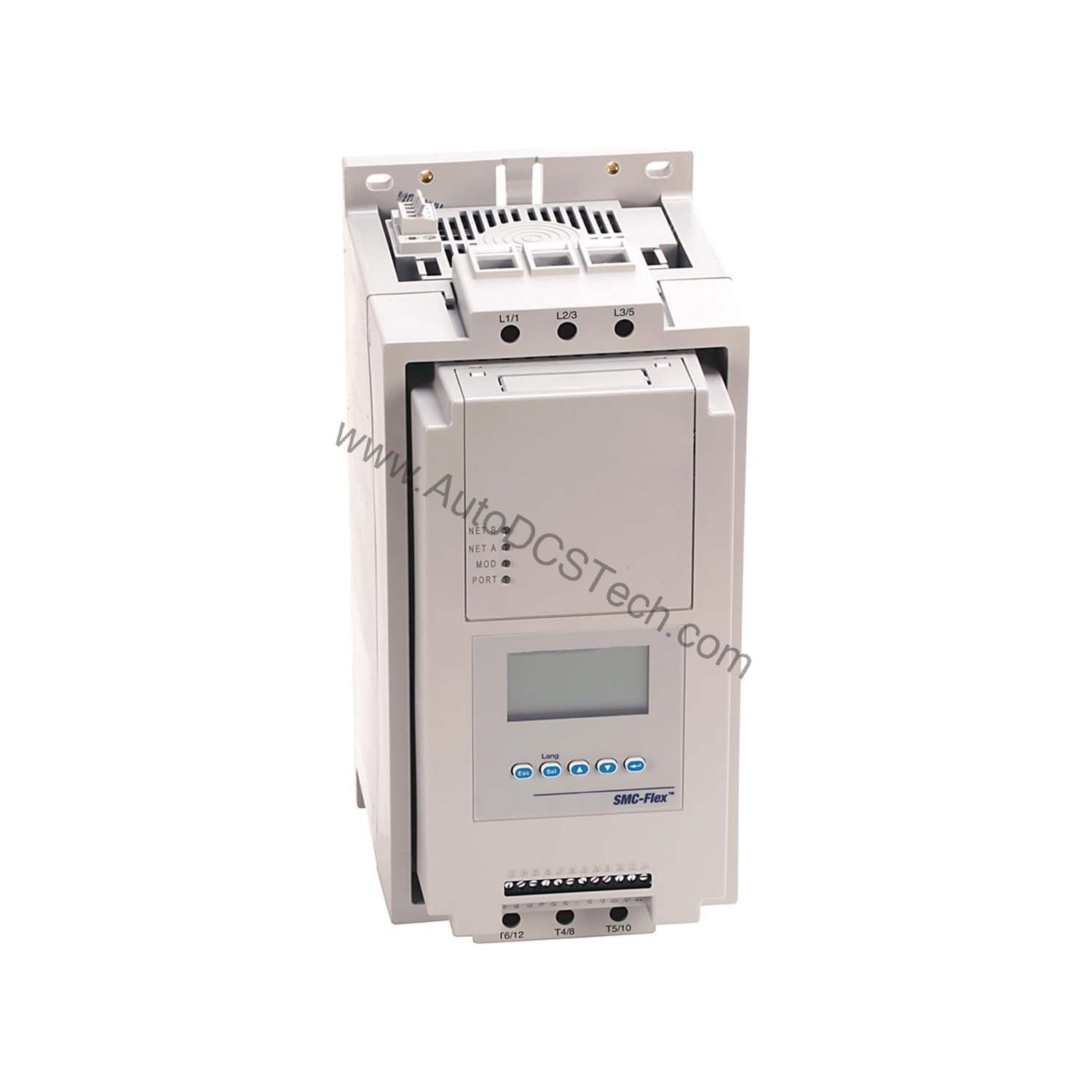

Allen-Bradley 150-F480FCD SMC-Flex Solid State Controller 480A IP65

Technical Specifications Breakdown

Key parameters for the 150-F480FCD are listed below for quick reference:

This solid-state controller is engineered for standard three-phase squirrel cage induction motors and Wye-Delta (6-lead) motors. Typical applications include conveyors, pumps, fans, and compressors where reduced inrush current and adjustable torque are critical. The 480 A rating and 400 Hp at 460V AC make it suitable for medium-to-large industrial machinery. The IP65 enclosure allows installation in washdown or dusty environments without additional protection.

Installation and Setup Guidance

Mount the controller in a location that allows adequate airflow around the IP65 enclosure. Ensure the input line voltage matches the 500-575V AC, 3-phase supply. The control voltage must be 100-240V AC. Use appropriately sized copper conductors rated for the 480 A continuous current. Follow local electrical codes and the SMC-Flex user manual for torque settings on power terminals.

Maintenance and Reliability

Periodically inspect the enclosure seals and gaskets to maintain the IP65 rating. Check for signs of overheating or corrosion on power connections. The electronic motor overload protection algorithm reduces wear on electromechanical components, extending service life. Keep the controller free from excessive dust and moisture ingress.

The Evolution of Motor Control: Why the 150-F480FCD Matters

Industrial motor control has shifted from simple across-the-line starting to sophisticated soft starting that protects both equipment and processes. The Allen-Bradley 150-F480FCD SMC-Flex solid-state controller exemplifies this evolution, offering precise control for demanding applications. With a rugged IP65 (Type 4/12) enclosure, this unit withstands harsh environments while delivering reliable performance.

Selection Guide and Purchasing Advice

When selecting a soft starter, verify that the controller rating matches your motor full-load current and horsepower. The 150-F480FCD is a non-combination model; consider adding a separate disconnect if required. AutoDCSTech stocks this unit and can assist with lifecycle status and availability. Contact us before ordering to confirm current stock and lead times.
