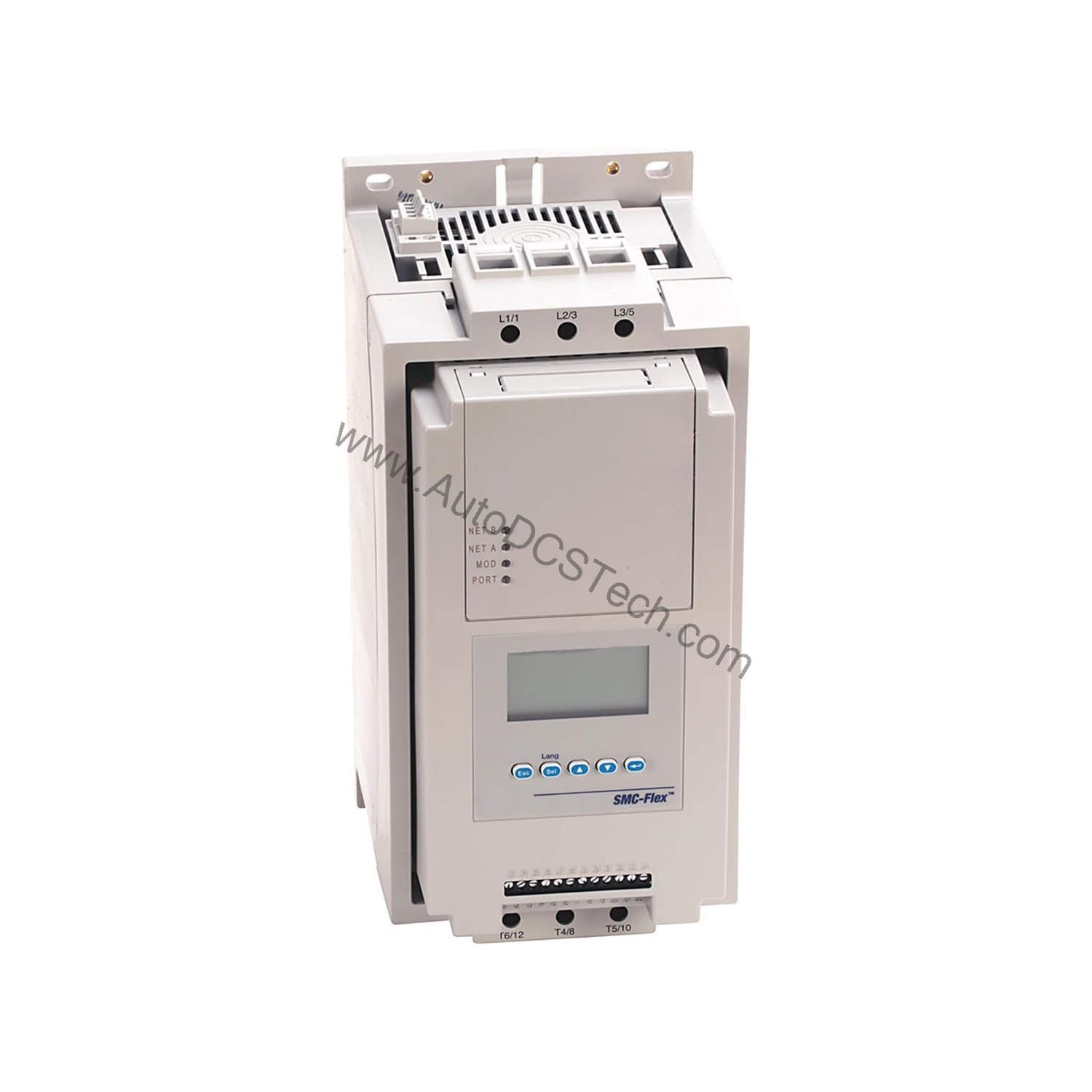

Allen-Bradley 150-F480FBD SMC-Flex Solid State Controller 480A

Technical Specifications Breakdown

Key parameters for the 150-F480FBD are listed below for quick reference:

Industry Applications for the SMC-Flex Controller

The 480 A rating and 400 Hp capacity at 460V AC make it suitable for large machinery in manufacturing plants, water treatment facilities, and mining operations. The IP65 enclosure allows installation in washdown areas or dusty locations, reducing downtime from environmental contamination.

Installation and Setup Guidance

When installing the controller, ensure the input line voltage matches the motor requirements within the 400-460V AC range. Use appropriate wire gauges for 480 A continuous current. The control voltage can be set between 100-240V AC, depending on the control circuit. Mount the unit in a location that allows airflow around the IP65 enclosure to prevent overheating. Always follow local electrical codes and the manufacturer's wiring diagram.

Maintenance and Reliability

Periodically inspect the enclosure seals and cooling fins for debris. Verify that the input and output connections remain tight. The IP65 rating protects against water jets and dust, but regular cleaning of the exterior extends service life. Check the controller's diagnostic LEDs for any fault indications during operation.

Overcoming Motor Startup Challenges with the Allen-Bradley 150-F480FBD

In industrial facilities, large motors often cause voltage sags, mechanical stress, and excessive inrush currents during startup. The Allen-Bradley 150-F480FBD SMC-Flex Solid State Controller addresses these issues by providing smooth, controlled acceleration and deceleration. This robust unit is designed for demanding applications where reliability and protection are critical.

Compatibility and Integration

The SMC-Flex series integrates with standard motor control centers and can be controlled via PLC or hardwired start/stop circuits. The adjustable input frequency (50/60 Hz) allows use in global installations. The unit supports various motor types, including induction and synchronous motors, within the rated power range.

Selection Guide and Purchasing Advice

When selecting a solid state controller, match the full-load current of your motor to the controller's 480 A rating. AutoDCSTech stocks this unit and can assist with lifecycle status and availability. Contact our team to confirm compatibility with your specific application and to discuss any upgrade options.
