Schneider TSXCANCADD1 CANopen Cordset with Molded SUB-D9 Connectors

Technical Specifications Breakdown

Key parameters for the TSXCANCADD1 are listed below for quick reference:

Industrial Applications and Benefits

In automated production lines, CANopen networks link sensors, actuators, drives, and controllers. Its molded connectors resist vibration and strain, ensuring consistent data transmission. Use it for connecting CANopen nodes in packaging machinery, material handling systems, and assembly stations.

Installation and Setup Guidance

When integrating the TSXCANCADD1, ensure the SUB-D9 connectors are securely tightened to the device ports. Avoid sharp bends in the cable that could exceed the minimum bend radius. Since the cordset has IP20 protection, install it in a clean, dry environment or within an enclosure. Verify that the CANopen network termination and node addressing are correctly configured per your system design. The molded design eliminates the need for field assembly of connectors, saving installation time.

Maintenance and Reliability

Periodically inspect the TSXCANCADD1 cable for cuts, abrasions, or connector damage. Check that the connector screws remain snug. The molded construction provides good resistance to dust and light mechanical stress. Replace the cordset if any physical damage is found to prevent network errors. The CE marking indicates compliance with European standards for electromagnetic compatibility.

Reliable CANopen Bus Connectivity with Schneider TSXCANCADD1

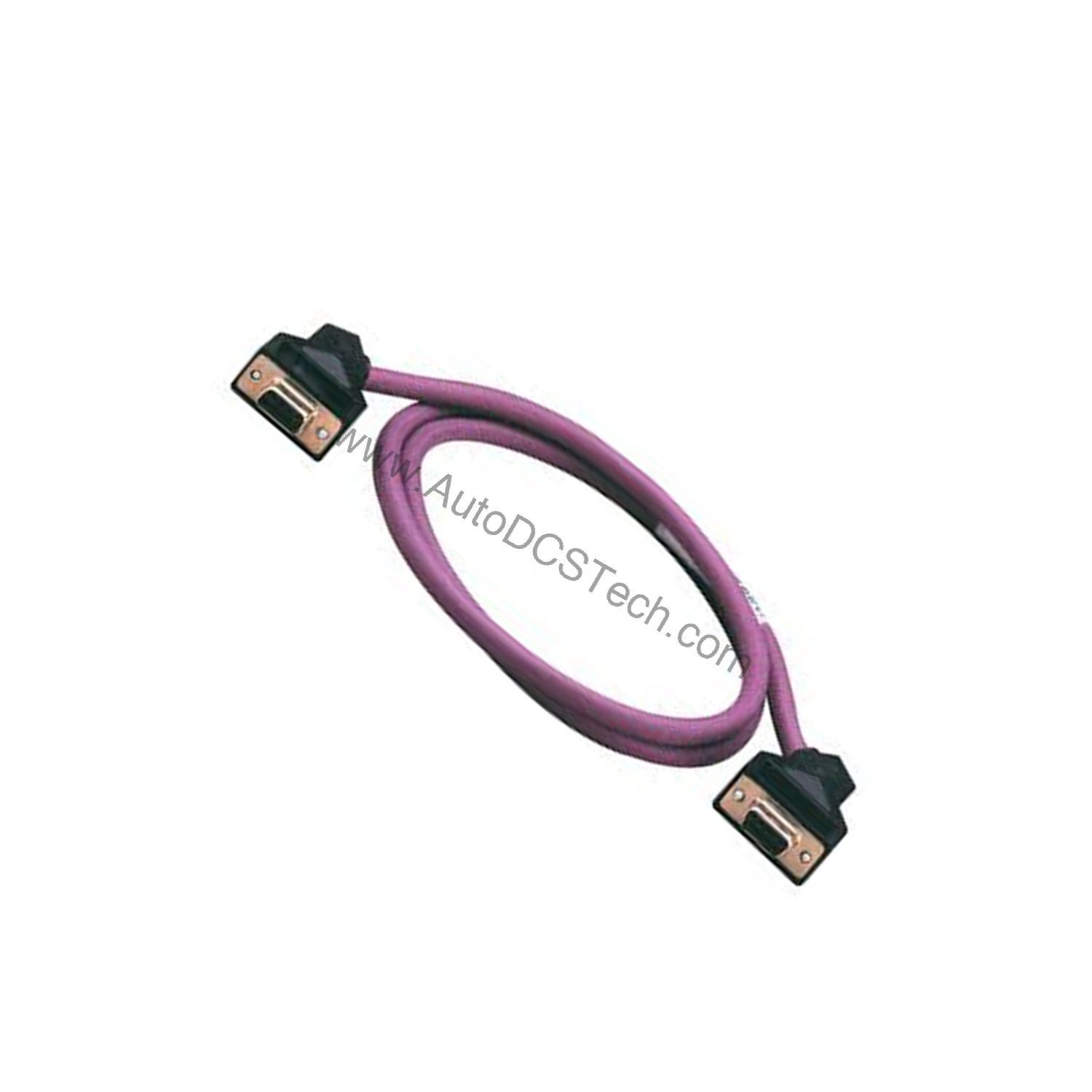

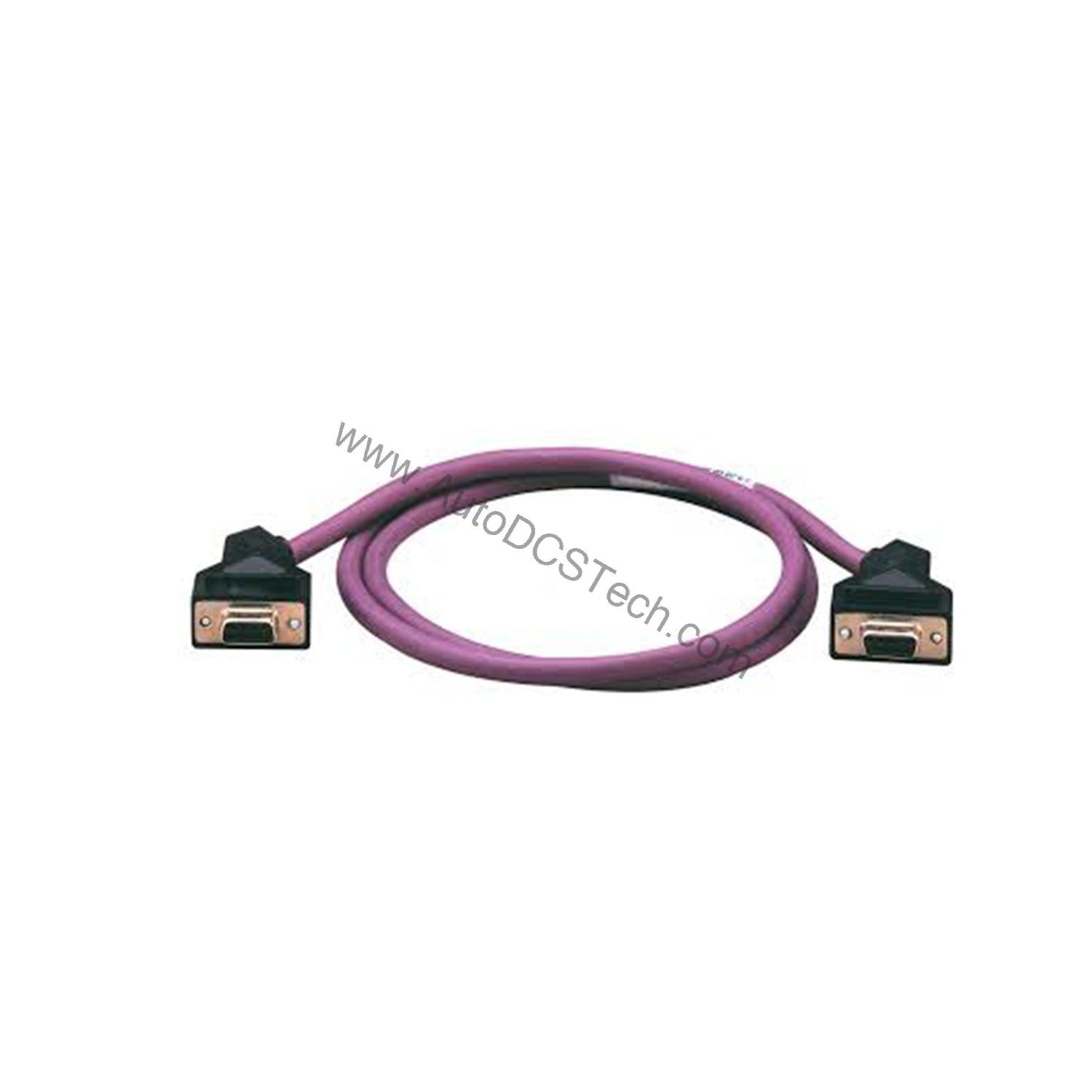

Industrial automation networks demand robust physical connections to maintain signal integrity and system uptime. The Schneider TSXCANCADD1 CANopen cordset provides a pre-assembled, standardized solution for connecting CANopen devices. With molded female SUB-D9 connectors and a 1-meter cable length, this accessory simplifies installation and reduces wiring errors in control cabinets and machinery.

Compatibility and Integration

The TSXCANCADD1 is designed for CANopen bus systems, which are widely used in Schneider Electric's automation portfolio and many third-party devices. It connects to any device with a female SUB-D9 CANopen interface. The cordset is a passive accessory; no configuration is needed. Ensure your network uses standard CANopen pin assignments.

Selection Guide and Purchasing Advice

Select the TSXCANCADD1 when you need a ready-to-use, 1-meter CANopen cable with female SUB-D9 connectors. For longer distances, consider other lengths in the same series. AutoDCSTech stocks this cordset for immediate shipment. Please verify current lifecycle status and availability with AutoDCSTech before ordering.
