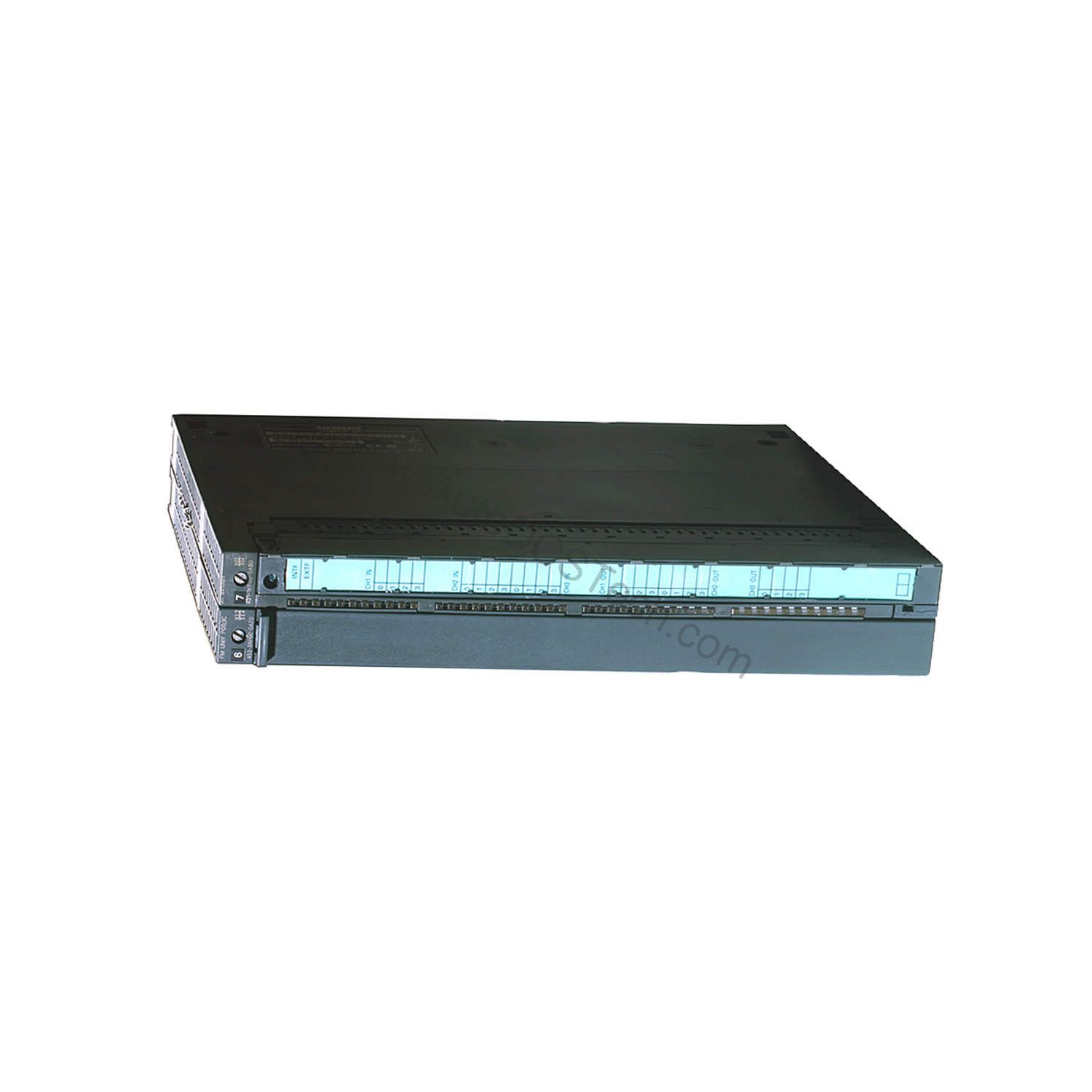

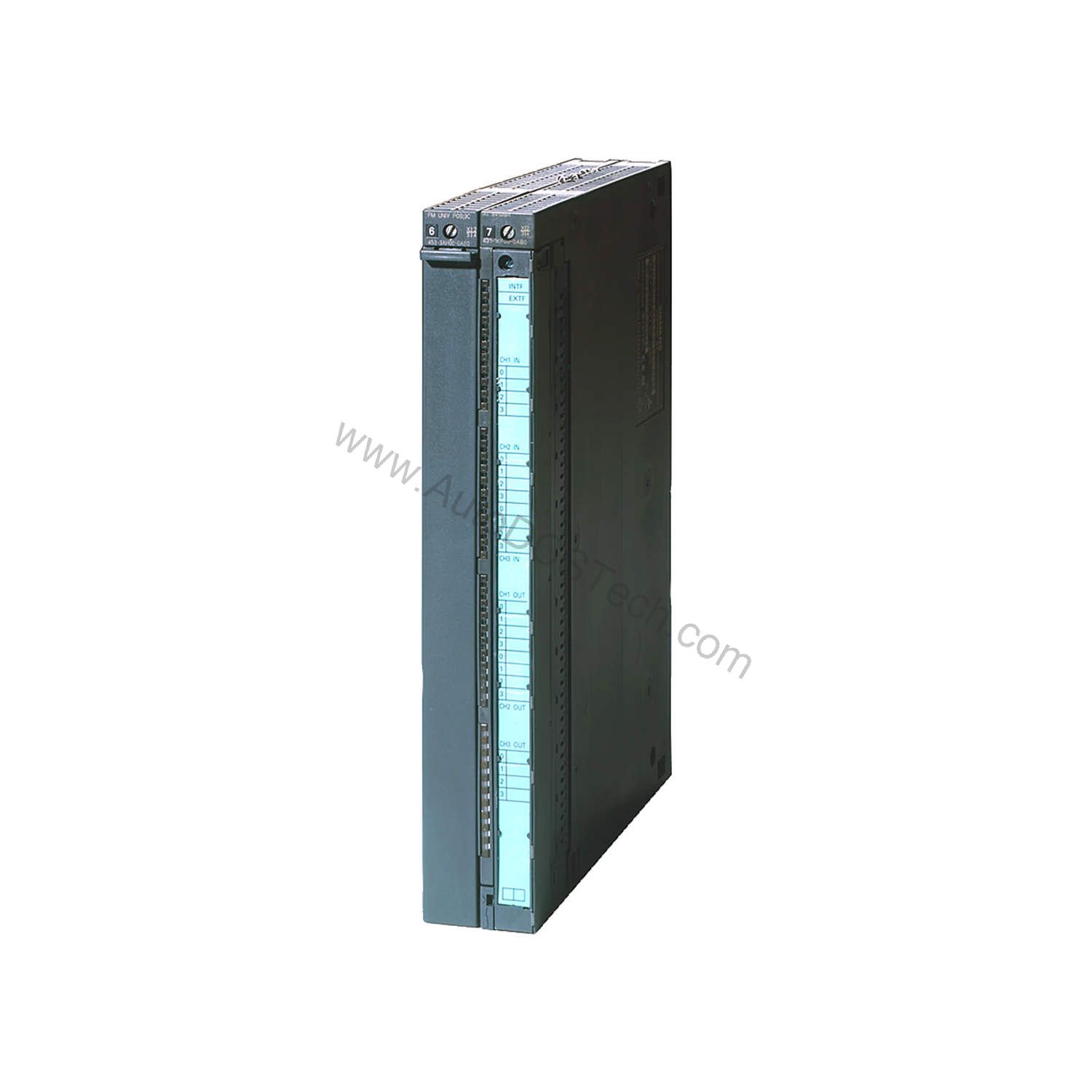

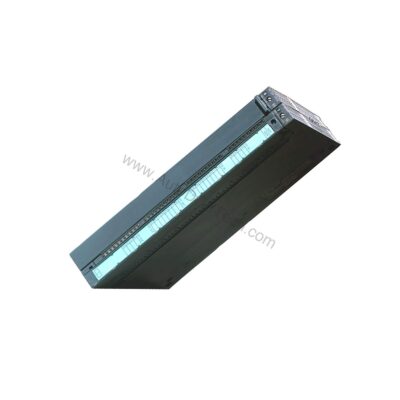

Core Technical Specifications of the FM 453
The table below summarizes the most critical parameters extracted from the official datasheet. Every value is traceable to the product documentation, ensuring accuracy for your engineering decisions.
| Parameter | Value |
|---|---|
| Channels | 3 (positioning) |
| Supply Voltage (rated) | 24 V DC |
| Supply Voltage Range | 20.4 V – 28.8 V (dynamic 18.5 V – 30.2 V) |
| Input Current (1L+) | Max. 1 A (24 V encoder) / 1 A (5 V encoder) |
| Input Current (2L+ to 4L+) | Max. 2 A per channel |
| Backplane Bus Current | Max. 1.6 A at 5 V DC |
| Encoder Supply (5 V) | Yes, max. 300 mA |
| Encoder Supply (24 V) | Yes, max. 300 mA |
| Digital Inputs | 6 per channel/axis |
| Digital Outputs | 4 per channel/axis |
| Output Current (signal "1") | 0.5 A at 40 °C; 0.1 A at 60 °C |
| Switching Frequency (resistive) | Max. 100 Hz |
| Encoder Interface | Incremental (RS 422) and absolute (SSI) |
| Power Loss | Typ. 8 W |
| Dimensions (W x H x D) | 50 mm x 290 mm x 210 mm |
| Weight | Approx. 1,620 g |
Key Features That Enhance Reliability
- Three independent channels allow simultaneous positioning of multiple axes, reducing the need for additional modules.
- Wide input voltage range (20.4–28.8 V DC) ensures stable operation even with fluctuating power supplies.
- Short-circuit protection on digital outputs prevents damage from wiring faults.
- Optocoupler isolation on digital I/O provides electrical separation, improving noise immunity.
- Configurable digital inputs/outputs adapt to various sensor and actuator requirements.
One distinctive feature is the encoder supply with selectable 5 V or 24 V. This flexibility lets you connect both incremental and absolute encoders without external power adapters, simplifying wiring and reducing component count.
Installation and Setup Considerations
Mounting the 6ES7453-3AH00-0AE0 is straightforward: it plugs into any S7-400 backplane slot. Use a 48-pin front connector (required, not included) for all field wiring. Ensure the auxiliary voltage (1L+) and load voltage (2L+) are within the specified range to avoid malfunctions.
For encoder connections, observe the maximum cable lengths: 35 m for 5 V encoders (at max. 210 mA) and 100 m for 24 V encoders (at max. 300 mA). Shielded cables are recommended for SSI absolute encoders, with a maximum length of 250 m at 156 kbit/s.
Maintenance and Long-Term Reliability
Regular inspection of the module’s status LEDs and connector tightness helps prevent intermittent faults. The module operates in ambient temperatures from 0 °C to 55 °C, so ensure adequate ventilation in the control cabinet. Storage and transport range is -40 °C to 70 °C, allowing safe handling during logistics.
Because the module uses solid-state components, it requires minimal routine maintenance. However, periodic verification of output currents and encoder signals is advisable, especially in high-vibration environments.
Why Precision Positioning Demands the 6ES7453-3AH00-0AE0
When multi-axis motion control must stay accurate under varying loads, engineers often face a common challenge: how to coordinate several axes without compromising speed or reliability. The 6ES7453-3AH00-0AE0 from Siemens answers this by integrating three independent positioning channels into a single S7-400 function module. Designed for servo and stepper drives, it handles complex motion profiles while maintaining tight synchronization.
This module supports both incremental and absolute encoders, offering flexibility for diverse machine designs. With a rated supply voltage of 24 V DC (permissible range 20.4 V to 28.8 V, dynamic 18.5 V to 30.2 V), it operates reliably in industrial environments. Its compact 50 mm width fits neatly into S7-400 racks, saving valuable cabinet space.
Compatibility and Integration
It supports servo and stepper drives through its analog and stepper interfaces, making it suitable for a wide range of motion control applications. The module includes a configuration package on CD, simplifying setup.
Troubleshooting Common Issues
If the module fails to respond, first check the supply voltages. Verify that 1L+ and 2L+ are within the permissible range. Next, inspect the front connector for loose wires. For encoder errors, confirm the encoder supply voltage matches the encoder type (5 V or 24 V) and that cable lengths do not exceed limits.
If digital outputs do not switch, test with a resistive load to rule out short-circuit protection activation. For persistent issues, consult the official Siemens documentation or contact AutoDCSTech for technical support.
Availability and Support
The 6ES7453-3AH00-0AE0 is available from AutoDCSTech. Please verify current lifecycle status and availability before ordering. Our team can assist with technical questions and cross-reference inquiries.
