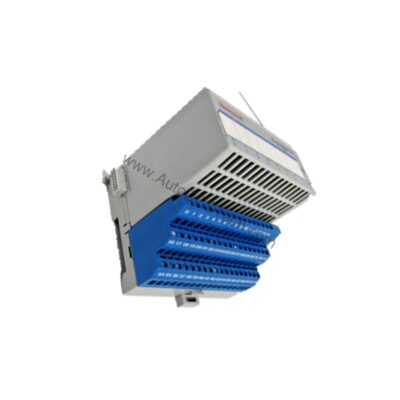

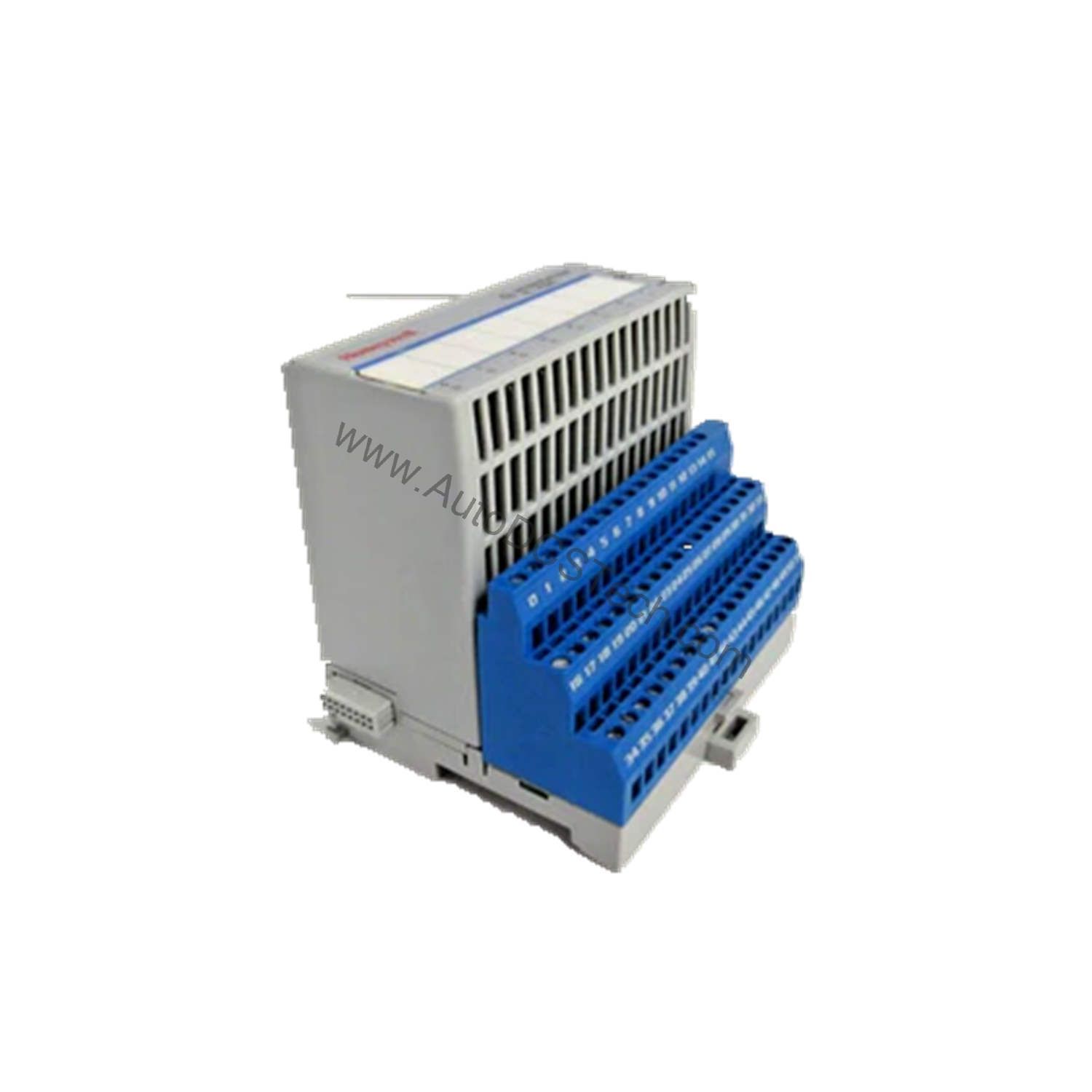

Honeywell TC-POA081 Analog Output Module 8-Point Intrinsically Safe

Technical Specifications Breakdown

Key parameters for the TC-POA081 are listed below for quick reference:

Industry Applications and Use Cases

Oil & Gas and Chemical Processing

In refineries and chemical plants, the module's intrinsically safe output (EEx ia/ib IIC T4) allows direct connection to field instruments in Zone 1/2 hazardous areas without additional safety barriers. The 4-20mA signal drives positioners and transmitters reliably, even in corrosive environments.

Power Generation and Water Treatment

For turbine control or water treatment chemical dosing, the 0.1% accuracy and 4ms response time ensure tight process control. The extended 2-22mA range supports diagnostic functions, helping operators detect loop issues early.

Cost-Benefit & Operational ROI

By integrating eight channels into one module, you reduce wiring, terminations, and panel space. The lead breakage detection and configurable latch mode minimize downtime, improving overall equipment effectiveness (OEE).

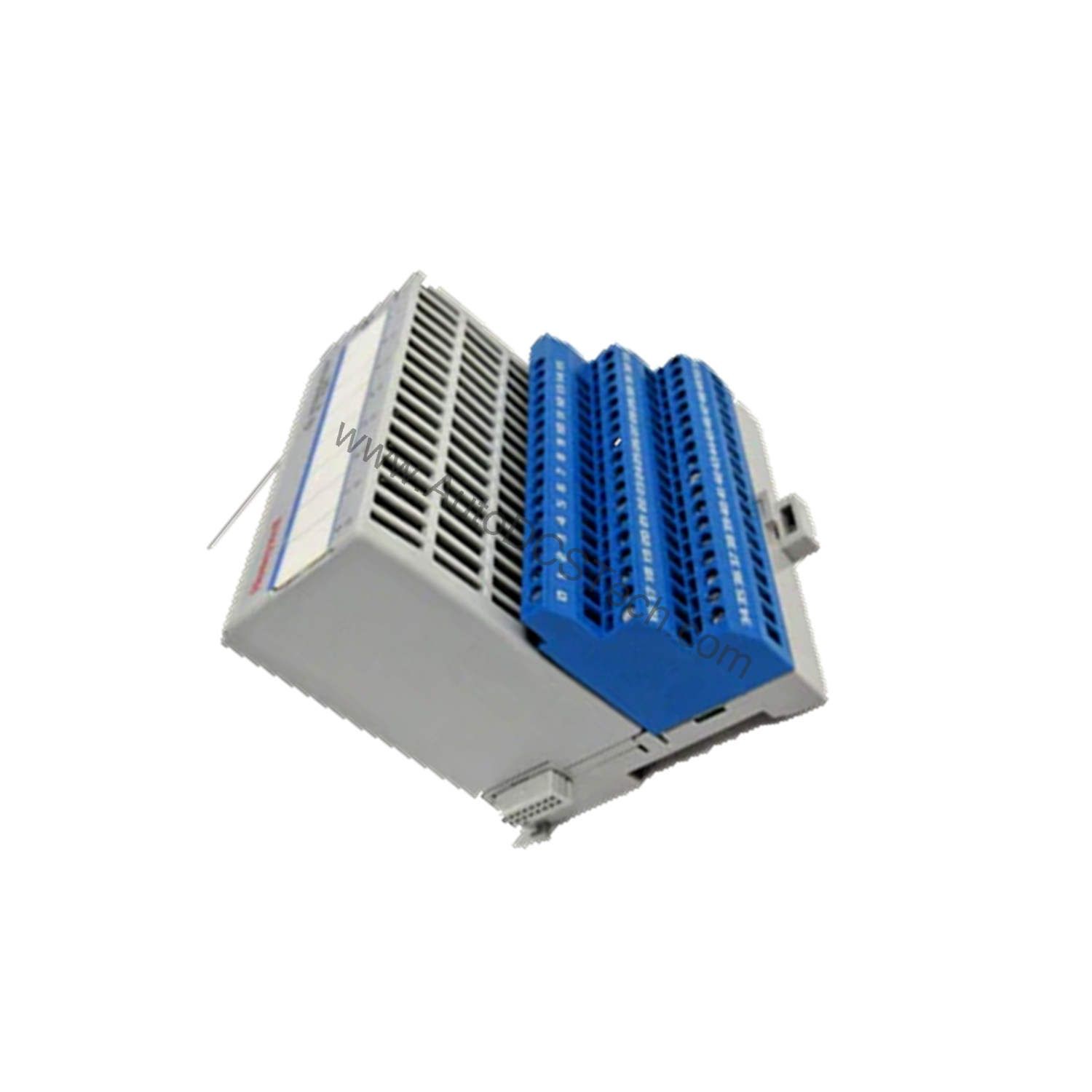

Installation & Setup Guidance

• Mounting: Install the module on a standard DIN rail or panel. Ensure adequate clearance for ventilation and wiring.
• Wiring: Use shielded multicore cables with individual shields per channel. The shield must have isolation greater than 500V to meet EMC compliance.
• Terminal Assignments: Follow the I/O terminal assignments: Ch0 – 0,1; Ch1 – 4,5; Ch2 – 8,9; Ch3 – 12,13; Ch4 – 17,18; Ch5 – 21,22; Ch6 – 25,26; Ch7 – 29,30.
• Power Supply: The module receives intrinsically safe power through the terminal base. Ensure the base is correctly seated.
• Configuration: Set lead breakage detection and latch mode via the backplane bus as needed for your application.

Maintenance & Reliability

• Inspection: Periodically check for loose connections, corrosion, or physical damage. Clean the module with a dry cloth only.
• Environmental: The module operates in –20°C to 70°C ambient. For field installation, use a separate enclosure with IP54 or better protection.
• Reliability: With no moving parts and solid-state design, the module offers long service life. The 13-bit resolution ensures consistent output.

Compatibility & Integration

The TC-POA081 is designed for Honeywell control systems, communicating via the vendor-specific bus. It is intrinsically safe and meets CENELEC standards, making it compatible with various Honeywell I/O bases. For integration details, consult the Honeywell system manual.

Selection Guide & Purchasing Advice

When selecting an analog output module, verify the number of channels, signal range, and safety certifications. The TC-POA081 offers 8 channels with 4-20mA output, intrinsic safety, and robust performance. For availability and lifecycle status, contact AutoDCSTech. Our team can help you find the right part for your system.

Troubleshooting & Common Issues

• No Output: Check power supply and backplane connection. Verify that the terminal base is properly seated.
• Output Drift: Ensure ambient temperature is within –20°C to 70°C. High humidity (above 95%) can affect performance.
• Lead Breakage Alarm: If the channel LED flashes red, check the field wiring for open circuits. The module detects lead breakage when current drops below 2mA.
• EMC Interference: Use shielded cables with proper grounding to avoid signal noise.

For further assistance, contact AutoDCSTech for technical support and replacement parts.
