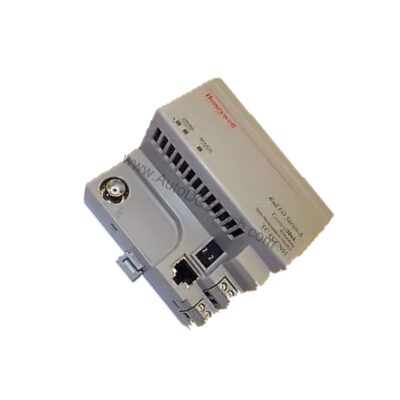

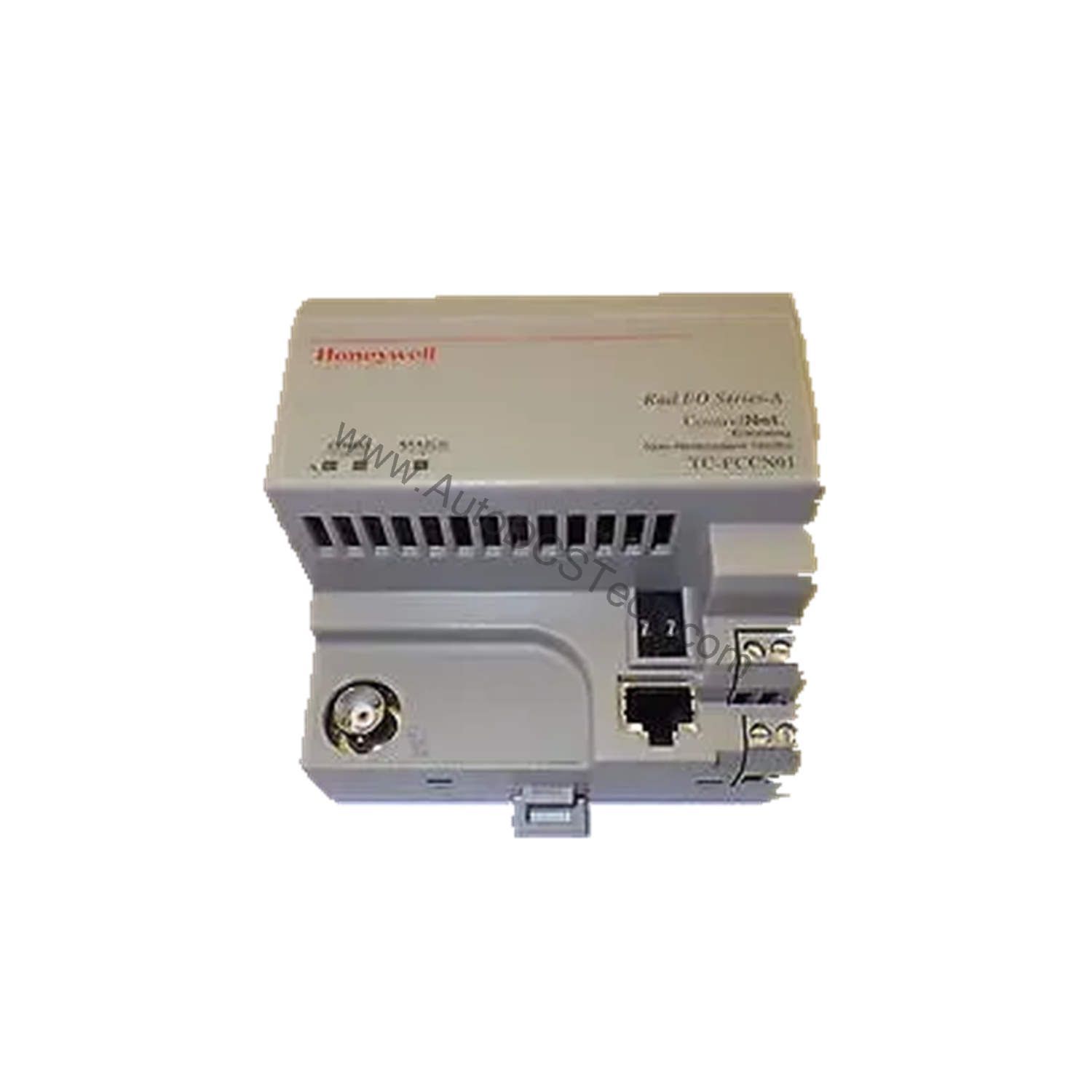

Technical Specifications Breakdown
Key parameters for the TC-FCCN01 are listed below for quick reference:
| Feature | Specification |
|---|---|
| I/O Capacity | 8 modules |
| Input Voltage Rating | 24V dc nominal |
| Input Voltage Range | 19.2V to 31.2V dc (includes 5% ac ripple) |
| Communication Rate | 5M bit/s |
| Supports Redundant | No |
| Programming Ports | 1 RJ-45 Network Access Port (NAP) for use with ControlNet programming cable (e.g. 1786-CP cable) |
| Flexbus Output Current | 640mA maximum 5V dc |
| Isolation Voltage | 500V ac between user power and flexbus |
| Power Consumption | 400mA maximum from external 24V supply |
| Power Dissipation | 4.6W maximum @ 19.2V dc |
| Thermal Dissipation | 15.7 BTU/hr @ 19.2V dc |
| Dimensions HxWxD | 87mm x 94mm x 69mm (3.4in x 3.7in x 2.7in) |
| Operational Temperature | 0 to 55 C (32 to 131 F) |
| Storage Temperature | -40 to 85 C (-40 to 185 F) |
| Relative Humidity | 5 to 95% non-condensing |
| Shock | 30g peak acceleration, 11(±1)ms pulse width |
| Vibration Tested | 5g @ 10-500Hz per IEC 68-2-6 |
| ControlNet Cable | Belden RG-6/U Quad Shield |
| Power Conductors | Copper (stranded or solid) |
| Wire Size | Type 12 gauge (4mm2) stranded maximum |
| Agency Certifications | Groups A, B, C, D certified; Class I Division 2 certified; Class I Zone 2 Group IIC certified |
Industry Applications
For example, in a bottling plant, the TC-FCCN01 coordinates high-speed filling machines with upstream sensors, ensuring precise timing. In a chemical processing facility, it links control valves and transmitters to a DCS, maintaining safe operation. Its non-redundant design suits cost-sensitive applications where a single point of failure is acceptable, offering a balance of performance and economy.

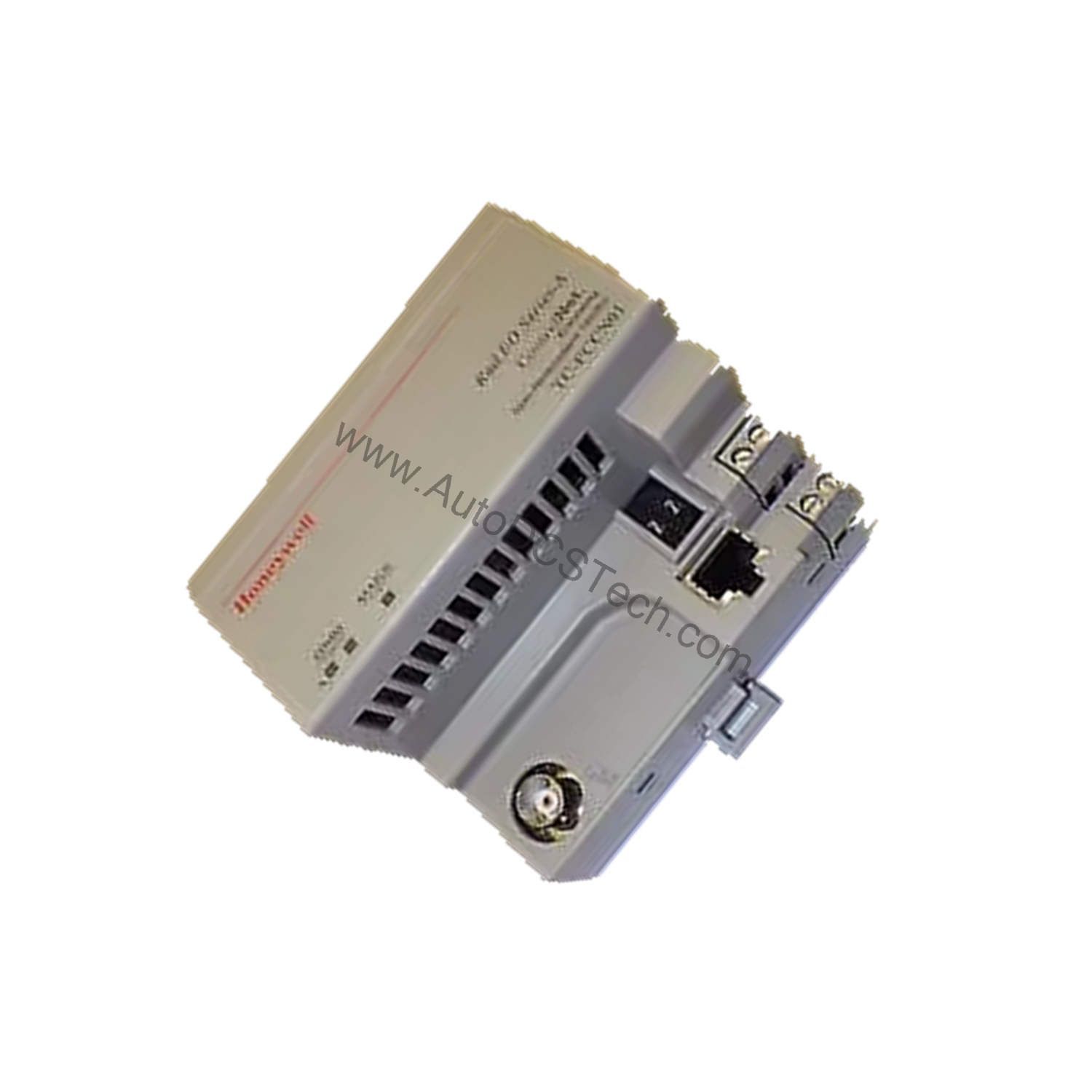

Installation & Setup Guidance
Proper installation ensures reliable operation. Mount the gateway securely in an enclosure that meets the operational temperature range. Use the specified ControlNet cable (Belden RG-6/U Quad Shield) and connect the NAP port to a programming terminal for configuration. Power the unit with a 24V dc SELV or PELV supply, as required by CE Low Voltage Directives. Ensure the input voltage stays within 19.2V to 31.2V dc, including ripple. Torque connector screws to 7-9 inch-pounds to prevent loose connections. Verify that the flexbus output current does not exceed 640mA at 5V dc.
Maintenance & Reliability
Regular inspection is key to long service life. Check all connectors for tightness and signs of corrosion. Keep the enclosure clean and free of dust, as humidity can range from 5 to 95% non-condensing. Monitor the status indicators (Comm A and I/O Status) for any anomalies. Because the unit operates in temperatures up to 55°C, ensure adequate ventilation. Periodic testing of the gateway's communication integrity helps detect early signs of cable degradation.
Compatibility & Integration
The TC-FCCN01 is designed for ControlNet networks, a widely adopted protocol in industrial automation. It supports up to 8 I/O modules, allowing flexible system scaling. Integration with existing ControlNet infrastructure is straightforward, and the NAP port simplifies programming and diagnostics. Always verify that the gateway's communication rate (5M bit/s) matches your network's configuration.
Selection Guide & Purchasing Advice
When selecting a ControlNet gateway, consider your network's redundancy requirements, I/O count, and environmental conditions. The TC-FCCN01 is a solid choice for non-redundant applications. For expert guidance and competitive pricing, contact AutoDCSTech. They offer genuine Honeywell parts and can help you verify compatibility with your existing system. Before ordering, confirm the product's lifecycle status and availability with AutoDCSTech to ensure it meets your project timeline.
Troubleshooting & Common Issues
If communication fails, first check the power supply voltage at the gateway. Ensure it is within 19.2V to 31.2V dc. Inspect the ControlNet cable for damage or loose connections. Verify that the NAP port is not being used simultaneously for programming and network communication. If the I/O Status indicator is red, check the flexbus connection and ensure the output current is below 640mA. For persistent issues, consult the Honeywell documentation or contact AutoDCSTech for technical support.
Availability & Condition at AutoDCSTech
| Part Number | TC-FCCN01 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | US |
